Milestone s.r.l.
MM098-002 – LOGOS ONE – Operator Manual
21

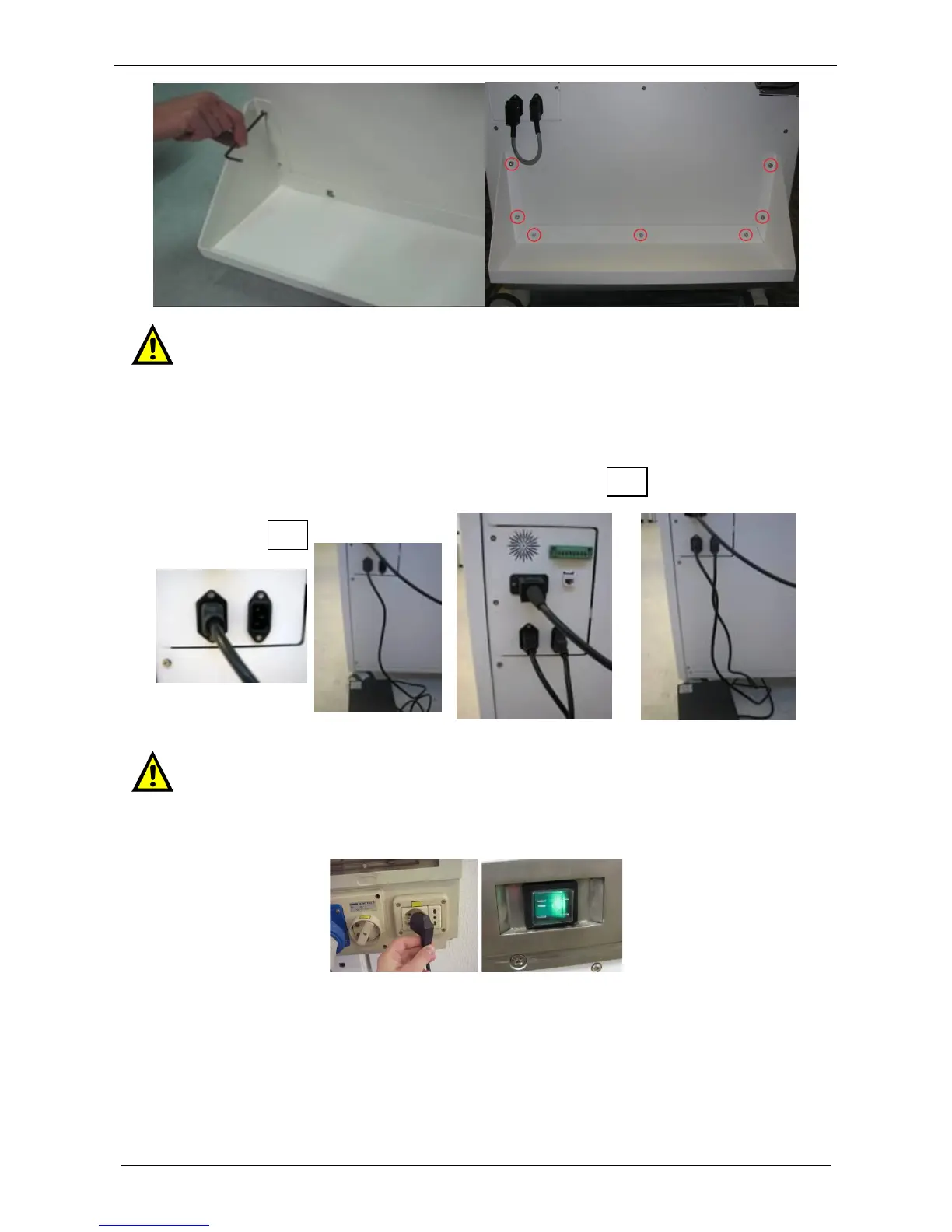

Do not load more than 15Kg on the UPS holder.
Connect the “UPS supplier socket” (connector type IEC320–C13), (refer to figure below) to the UPS power
input. Maximum current 4A (230V), frequency same as local (refer to figure below-A).
Connect the UPS power output to the “UPS side supply” (connector type IEC320-C14) (refer to figure below-
B).
Finally connect the socket to main power supply connector input (6): now it is possible to turn LOGOS ONE
ON.
Wrong connections of UPS prejudice the functionality of safety procedures detailed in the
chapter 5.1.
B
A
