Milestone UltraGROSS - Rear View

UltraGROSS
MM182-001 – Operator Manual
108

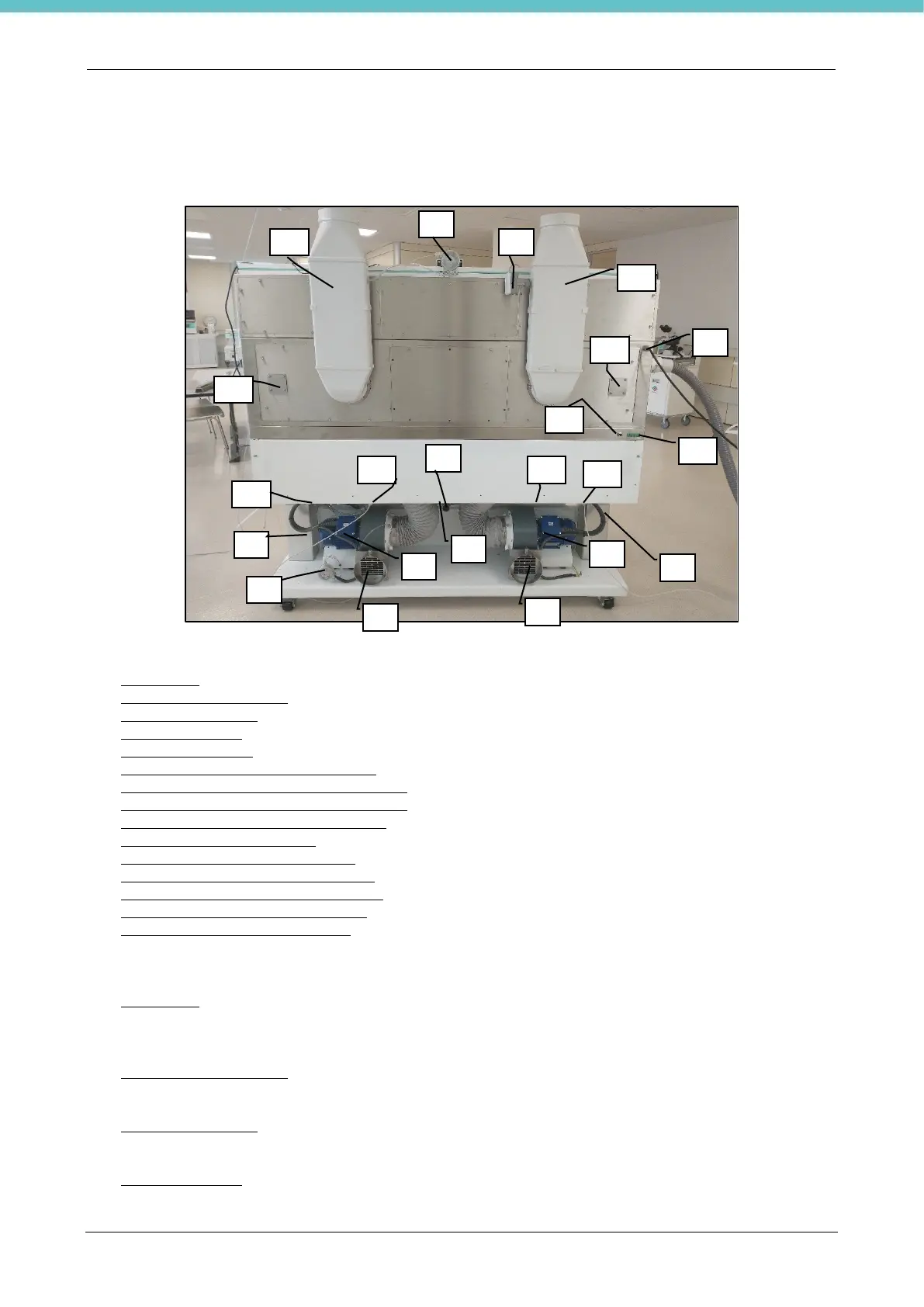

2.8.2. Rear view
The following is the rear view of the machine.
1. Power cord
2. Motors (only for letter A)
3. Telescopic columns
4. Wastewater drain
5. Hot/cold water inlet
6. Ventilation air outlet (only for letter A)
7. Pressure switch (position only for letter A)
8. Pressure switch (position only for letter P)
9. Anemometer (position only for letter P)
10. Unit terminal network socket
11. Auxiliary signals alarms connector
12. Passive hood ducts (only for letter P)
13. Ventilated waste paper bin connection
14. VIROCLEAN instrument connection
15. Fixative loading pedal connection
A description of all the elements listed above, where present, can be found hereafter.
1. Power cord
Please refer to chapter 1.3.3.
Cable length: 2 m approx.
2. Motors (only for letter A)
Please refer to chapter 2.5.10.
3. Telescopic columns
IPx6 protection rating.
4. Wastewater drain
Please refer to chapter 2.5.8.
1
2
2
3
3
4
5
6
8
9
12
6
7
10
13
11
13
14
15
12
14
15
