46

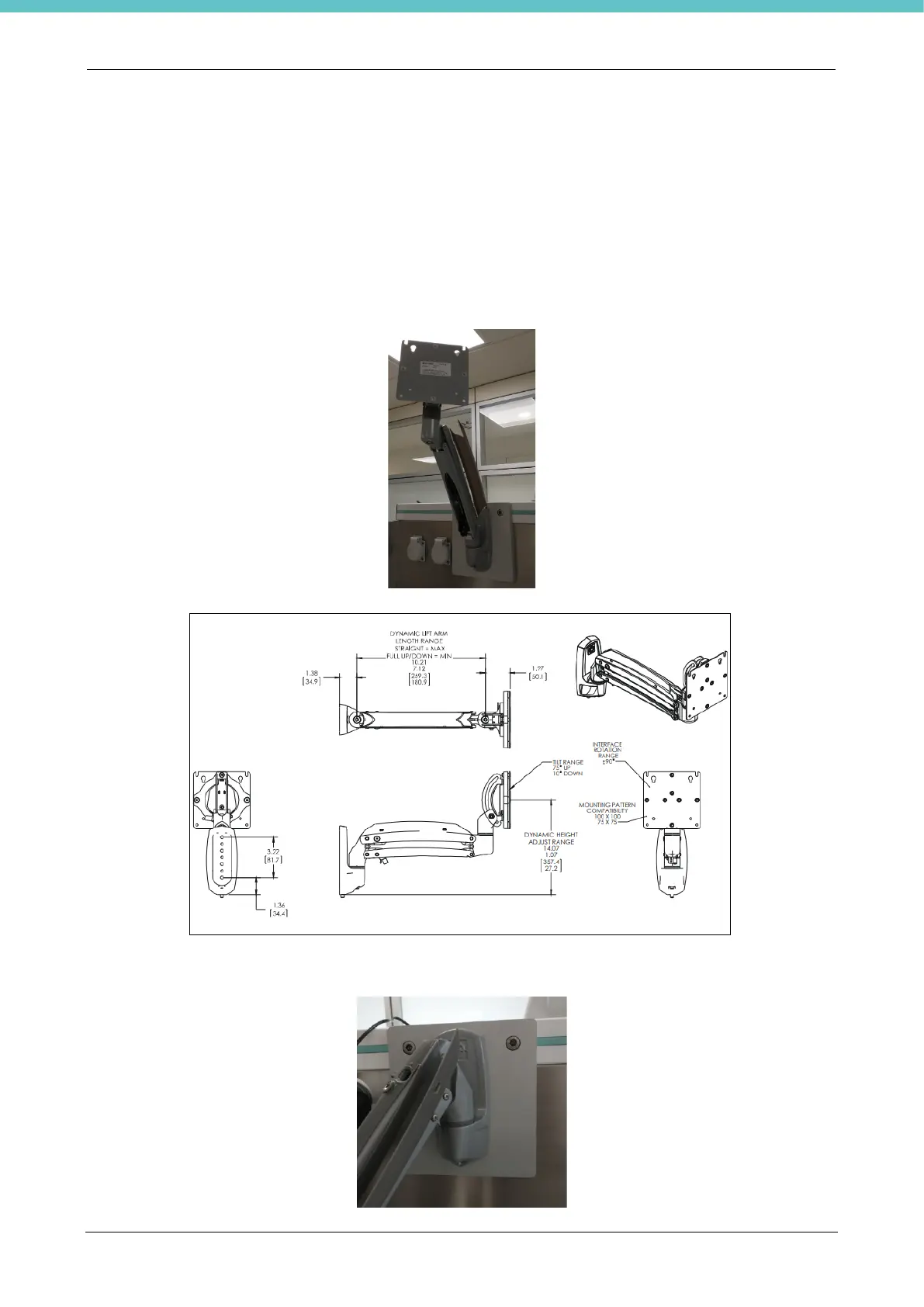

2.5.5. Installation of keyboard support arm (only for letter H)
Present on all models except MALPIGHI.
If letter S, refer to the previous chapter.
If there are one or two letters T, refer to chapter 2.5.6.
To assemble the components, follow the procedure below.
A monitor weighing up to 9Kg can be connected with the VESA 75/100 bracket along the entire crosspiece bar
of the unit in the required position.
Fix the arm on the specific bracket, tightening the underlying grub screw.
