52

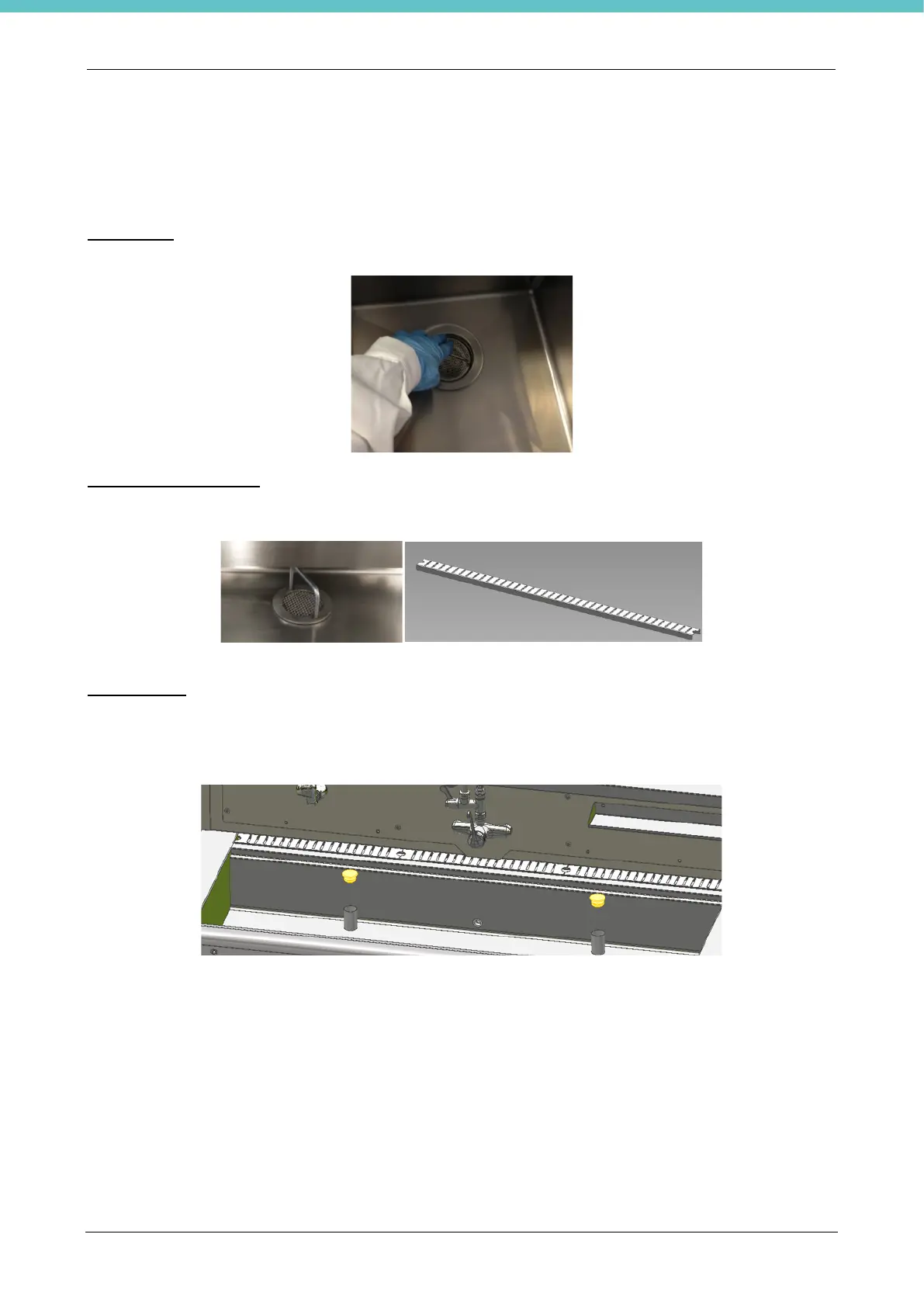

2.5.7. Parts to be assembled
For letters that refer to unit codes, see chapter 1.3.1.
Drain filters
Place one drain filter in the washbasin of the unit and the second one in the large basin.
Ventilated surface filter
Position the ventilated surface filter and then the grille (1X if initial code 150 and 3X if initial code 180), as
shown in the following pictures.
Work surface
Position the supplied work surfaces in the specific housing, referring to the pictures below. Insert the grid plate
with cutting board near the camera and, for units with a letter D in code, check that the position of the fixative
drain funnel is near the relative tank. Remove the cap indicated below only at the position of the funnel.
This is followed by configurations of the grid plates in the default models, refer to chapter 1.3.1.
Each grid plate is fitted with the hooks shown in the following figure to allow them to be extracted.
