2.5.2. Camera installation (only letter C)

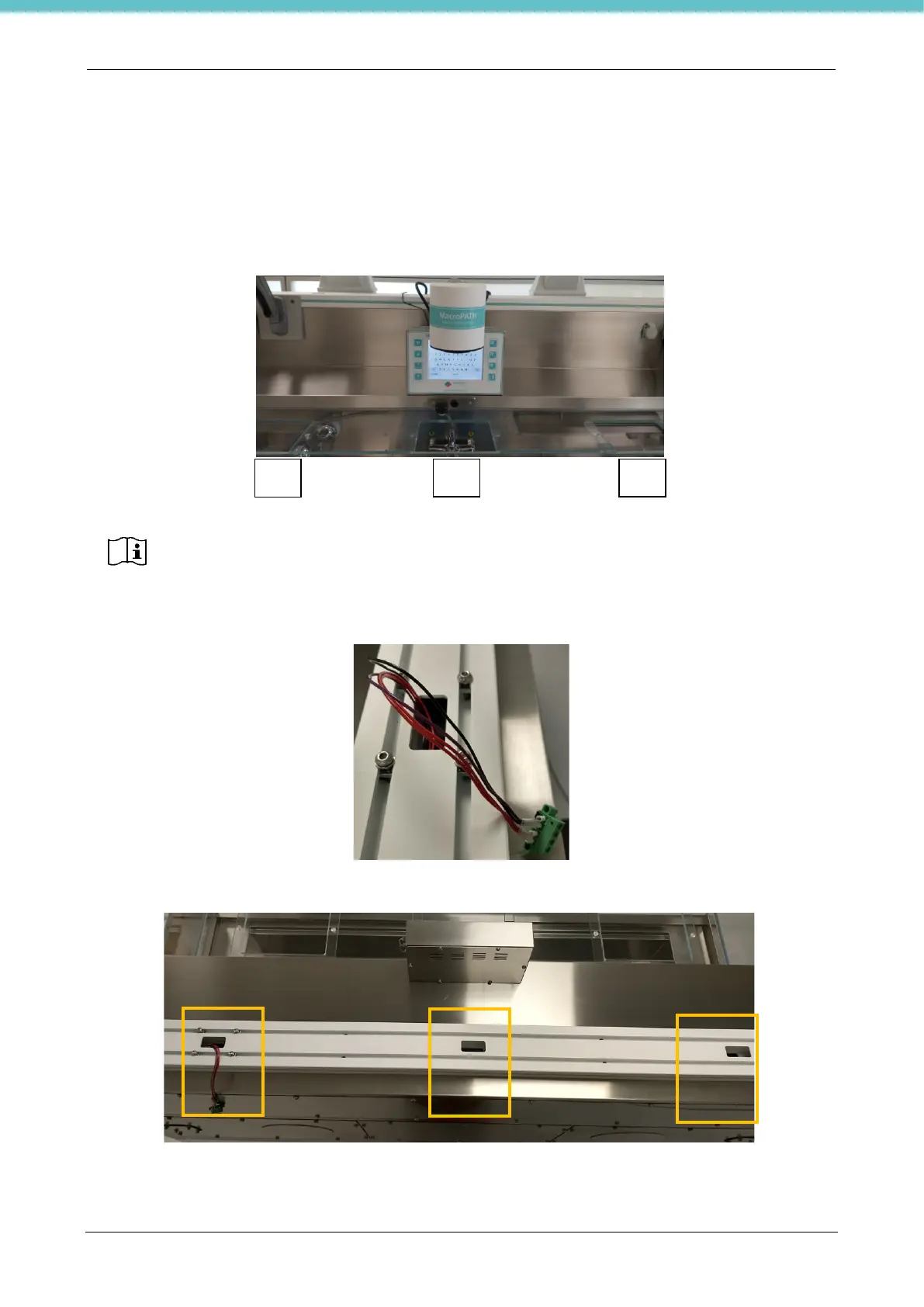

The figure shows the three positions available for the camera (only for initial code 180), at the openings on the
safety shield. The openings are closed by a polycarbonate panel that must be removed in presence of the
camera. With initial code 150 the camera will only be in the middle.
After having decided the position of the camera, if necessary, reposition the relative green connector in the
crosspiece, pulling it out of the specific opening.
The figure shows the three different exit positions of the connector.
