3-CONTROLSANDINSTRUMENTS

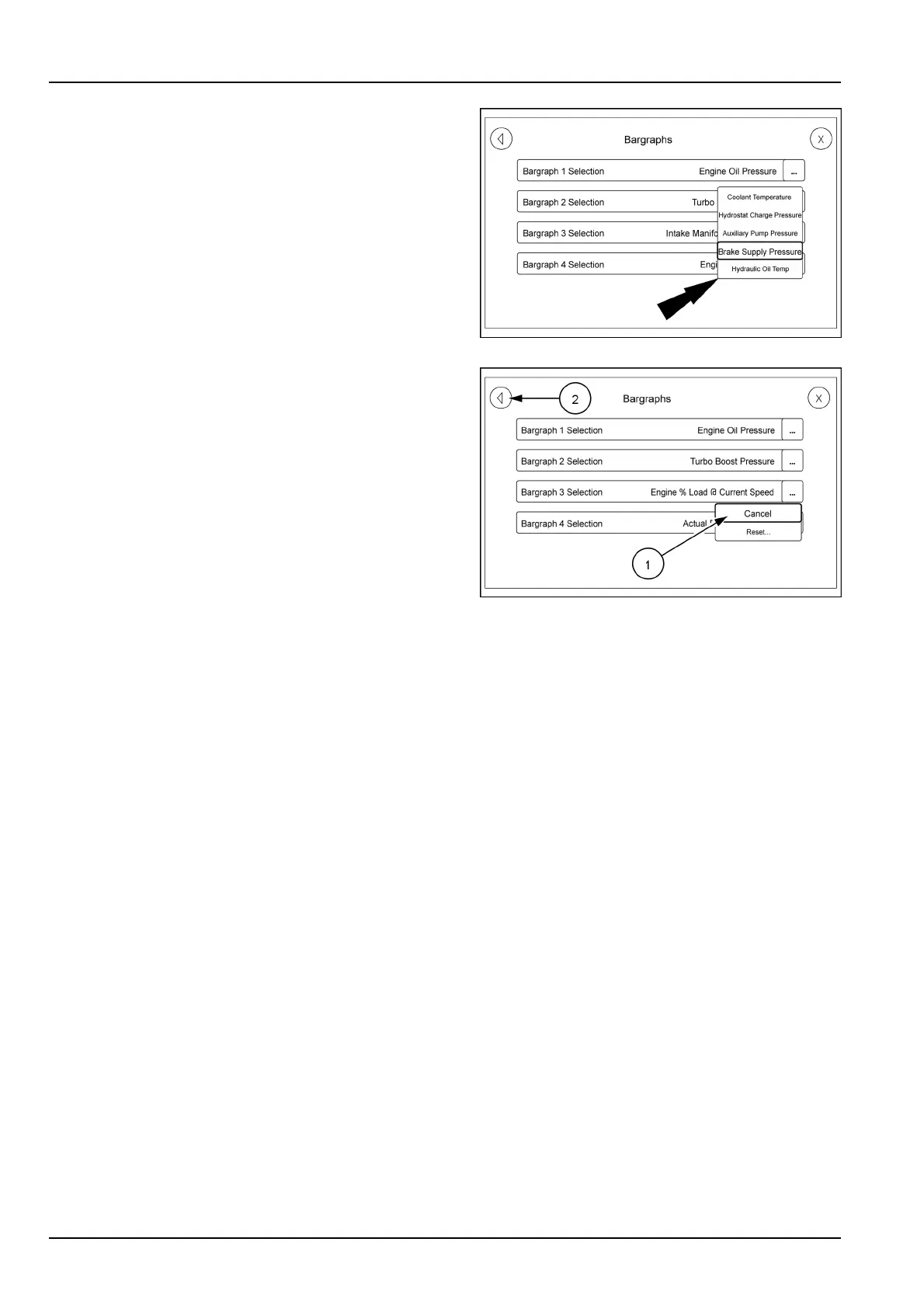

Pressthedesiredmonitoringgaugeselectionfromthelist.

Thechangeconrmationscreendisplays.

RAIL17SP00113AA9

PressResettoconrmyourselection,orpressCancelto

leavetheselectionunchanged(1).

Pressthebackarrowbutton(2)toreturntothearmrest

displayhomepage.

RAIL17SP00112AA10

3-58
