2-SAFETYINFORMATION
Boomliftcylindersafetystops
Safetystopsinstalled
Theboomliftcylindersafetystops(1)preventtheboom
fromloweringduringtransportorduringextendedperiods
ofstorage.Thesafetystopsareattachedtoeachliftcylin-
derlocatedonthefrontofthemachine.
Installthesafetystop.Attachthesafetystopontothe
cylinderrodfromthetopsideoftherod.Besurethesafety
stopispositionedwiththearrowpointingforwardandthe
tabispositionedtothetopsideoftheclevis.
Securethesafetystopinplacewiththeclevispin(2).
Repeattheattachingprocessfortheoppositeboomlift
cylinder.

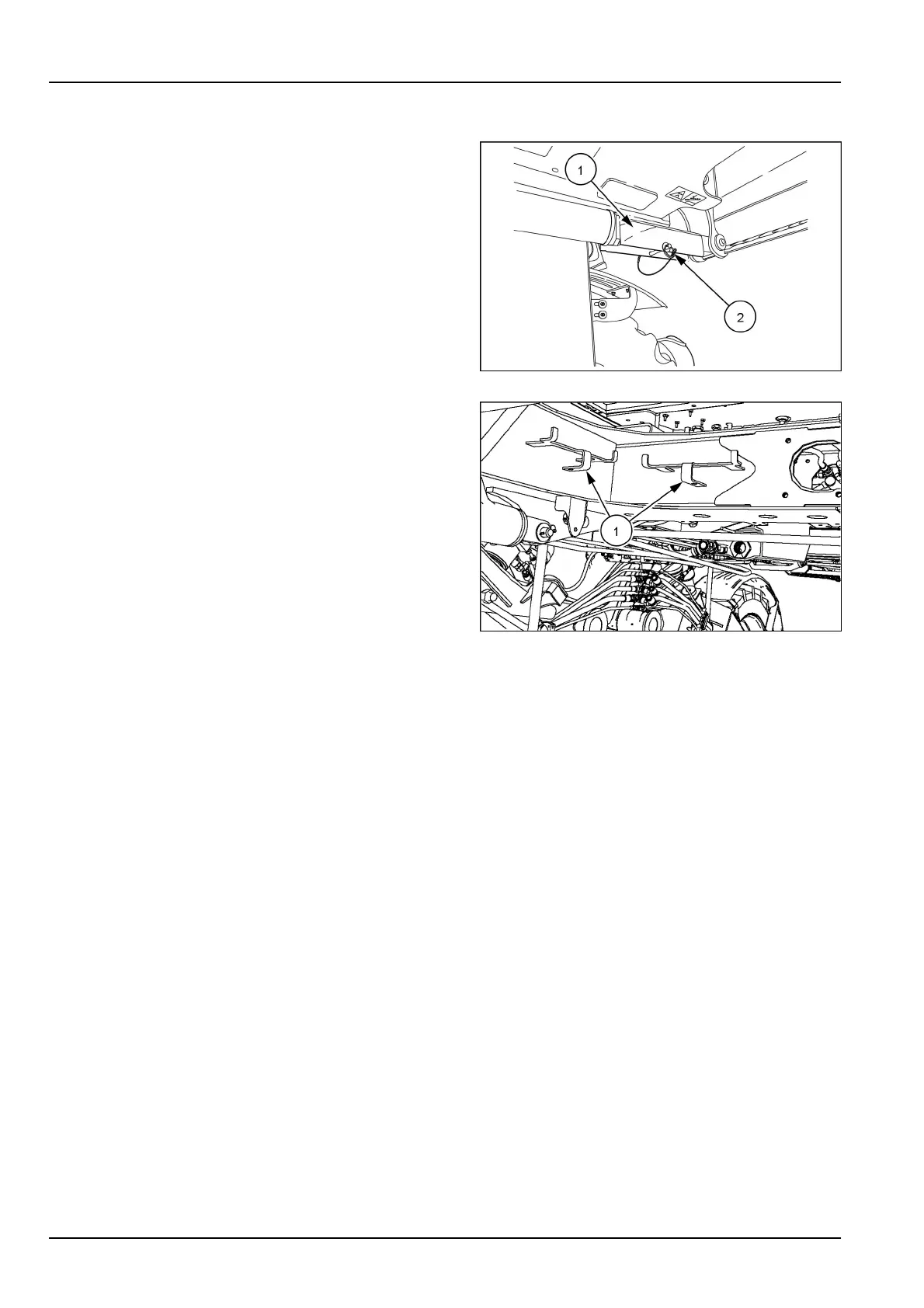

RAIL17SP00225AA1
Whentheboomliftcylindersafetystopsarenotinuse,
storethesafetystopsinsidethecabawayfromanyglass.
Reinsertthepinsintothesafetystopswhenplacinginto
storage.
Thesafetystopsmayalsobestoredonthestoragebrack-
ets(1)locatedontheframe,underthecab.
Placethecylinderstopontothebracketandpininplace.
RAIL17SP01385AA2
2-14
