8-TROUBLESHOOTING
8-TROUBLESHOOTING###_8_###
Faultcoderesolution
Faultcoderetrieval
Engine
Theenginefaultcodesarelistedintheengineservicemanual.ContactyourMILLERdealerforinformationonfault
codes.
Theenginehasonboarddiagnosticcapabilitiesbuiltintoittotroubleshoottheenginefaultcodes.
FAULTDETECTION:Enginefaultcodescanbedetectedwhiletheengineisrunning.Ifafaultoccurs,theengine
computertakesasnapshotofengineoperatingparametersandlogsthefaultcodeintomemory.
Thearmrestdisplaywilldisplayactivefaultcodesastheyoccur.
Toaccesstheenginediagnosticpage,presstheengineicononthearmrestdisplay.Pressthemoduleskeyonthe
infopage,pressthearmrestdisplayonthemodulespage,presstheenginekeyonthearmrestdisplaypagetobring
uptheerrorspage.
ThearmrestdisplaypanelwilldisplayfaultcodeswithaSuspectParameterNumber(SPN)andtheFaultModeIndi-
cator(FMI)code.

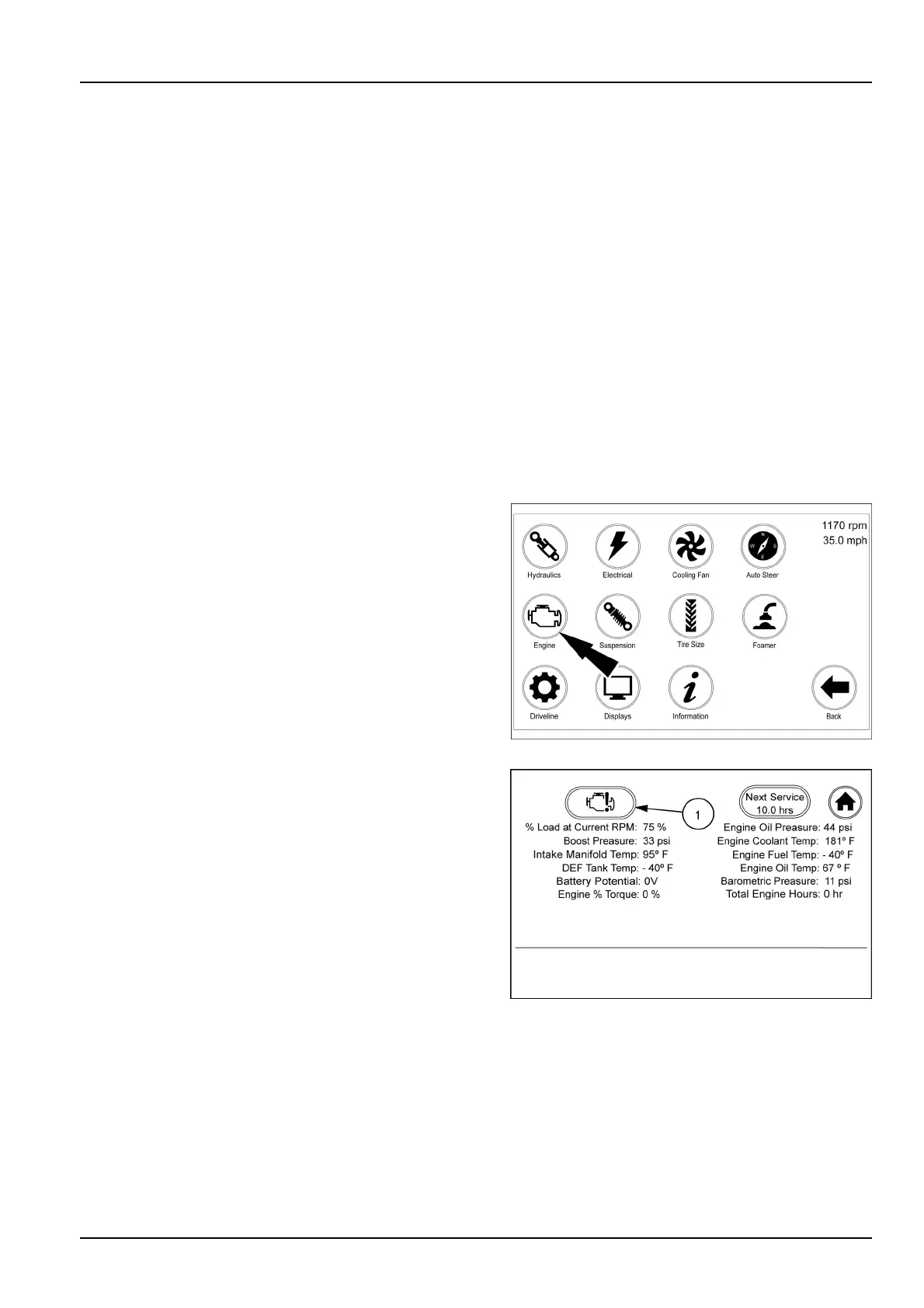

1.Presstheengineiconbuttonlocatedonthearmrest
displaysecondhomepage.Theenginefaultsand
servicetimerscreenappears.
RAIL17SP00109FA1
2.Touchtheengineicon(1)tobringupseveralscreens
thatshownewfaultsorstoredfaults.Theenginefaults
screenappears.
RAIL17SP00200AA2
8-1
