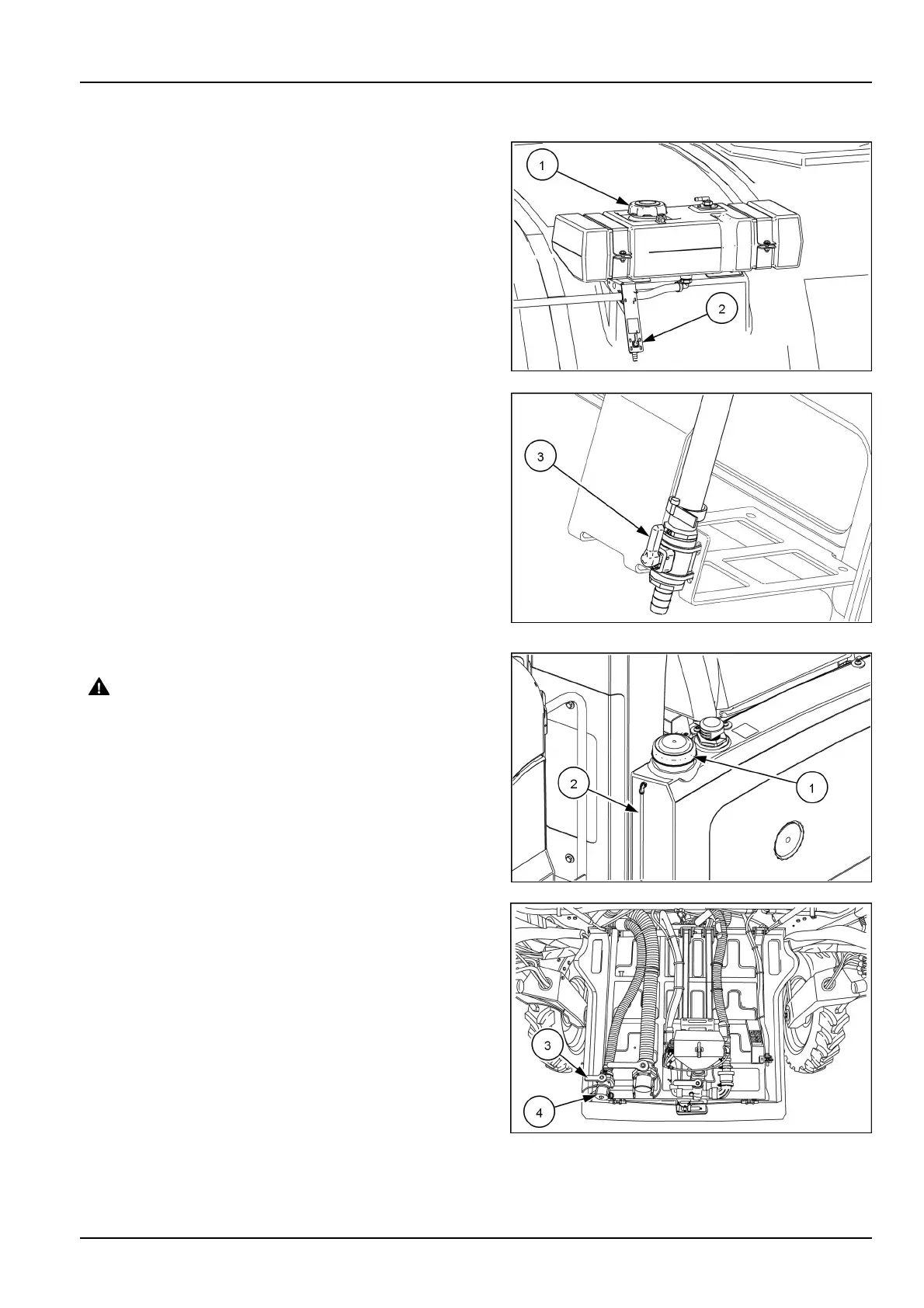

Fillingthetanks
Handrinsewatertank
Thehandrinsewatertankislocatedontherearleftcorner
ofthecab.Fillthistankwithcleanwateronly.Remove
thelid(1),llcompletelywithcleanwaterandreplacethe
lid.Thevalveonthebottomofthetank(2)isusedtodis-
pensewaterforhandwashingonly.Thereisanadditional
dispensingvalve(3)locatedontheEductordoornextto
theremotecontrolkeypad.
RAIL17SP00697AA1
RAIL17SP00699AA2
Rinsewatertank
WARNING
Run-overhazard!
Placethehydrauliccontrolintheneutralposi-
tionandengagetheparkingbrakebeforeyou
lltheliquidtanks.
Failuretocomplycouldresultindeathorse-
riousinjury.
W1534A
The568l(150USgal)rinsewatertankisusedforrinsing
oftheproducttankaswellassupplyingwatertothefoam
markersystem,chemicalinjectionsystemrinseoreductor
rinse.Thetankislocatedontherightsideoftheproduct
tank.Thetankcanbelledthroughthelid(1)atthetop
ofthetank.Thetankisequippedwithasightgauge(2)
onthesideofthetankforlevelofwaterinthetank.
Thefast-llballvalve(3)fortherinsetankislocatedonthe
eductor/fast-ll(door)atthefrontoftheframe.Closethe
producttanksumpvalvebeforelling.Attachthedelivery
hosetotherinsewaterhosecoupling(4)tollthetank.
Besuretoclosethefast-llballvalveafterlling.
NOTE:Donotllthroughthelargerlinewiththerinse
sumpopen.Contaminationofrinsetankmayoccur.
Besuretocloseandlatchtheeductor/fast-ll(door)be-
foreoperating.
RAIL17SP00700AA3
RAIL17SP00868AA4
