3-CONTROLSANDINSTRUMENTS
Ventilation
Airdischargeoutlets

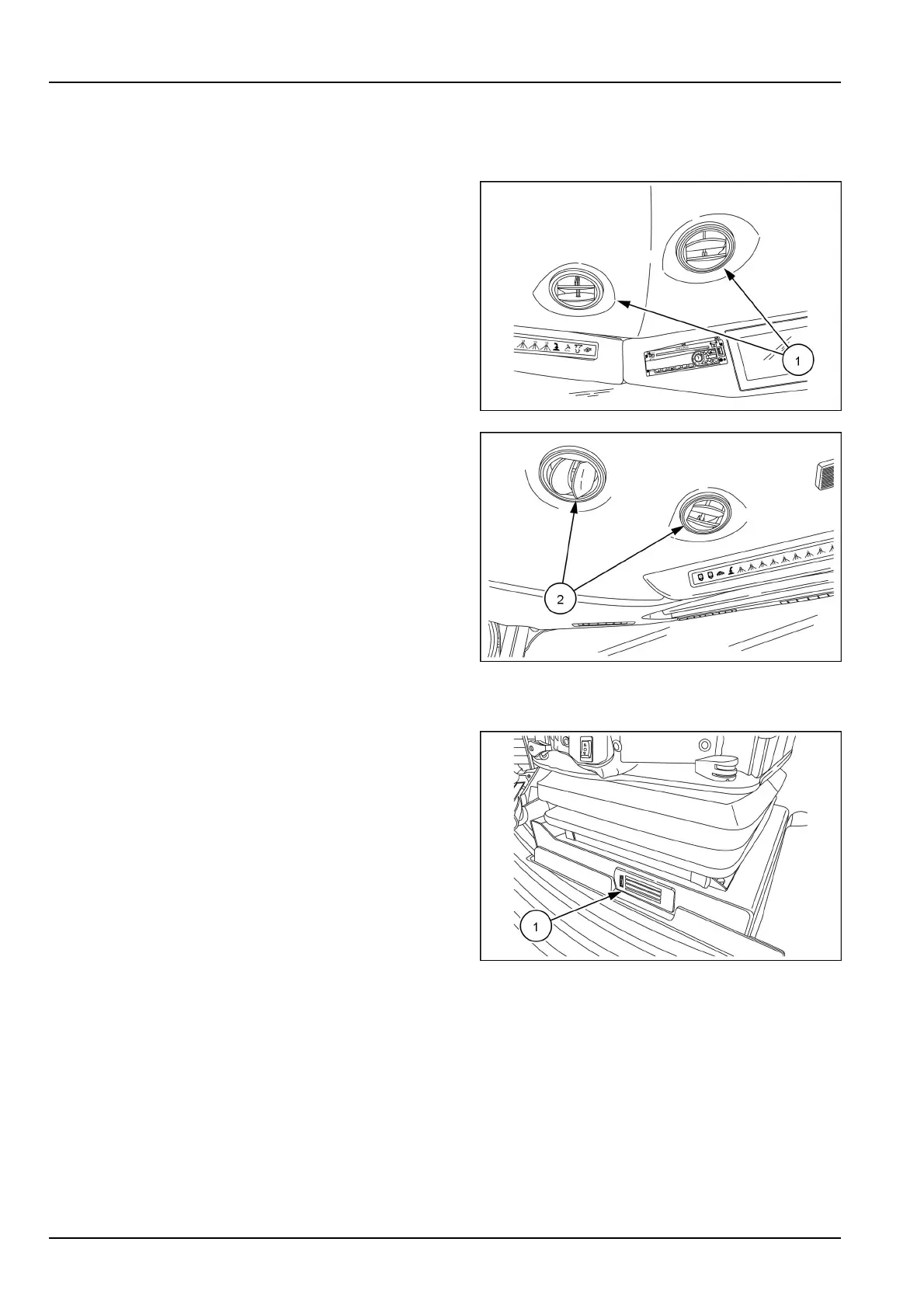

CabRoofHeaterandAirConditionerVents:
Therearefourroundswivelandadjustableventsinthe
cabinteriorroof.Theseventsareadjustabletobedi-
rectedatdifferentareasinsidethecab.Theycanalso
beclosedasneeded.Theventsarelocatedtwoonthe
right-handsideofthecabinteriorroof(1)andtwoonthe
left-handsideofthecabinteriorroof(2).
RAIL17SP00289AA1
RAIL17SP00269AA2
Seatbaseheaterandairconditionervent
Theseatbasevent(1)islocatedatthefrontoftheseat
base.Theventcanbeclosedasneeded.
