3-CONTROLSANDINSTRUMENTS

Defrostervents

Windshielddefrostervents

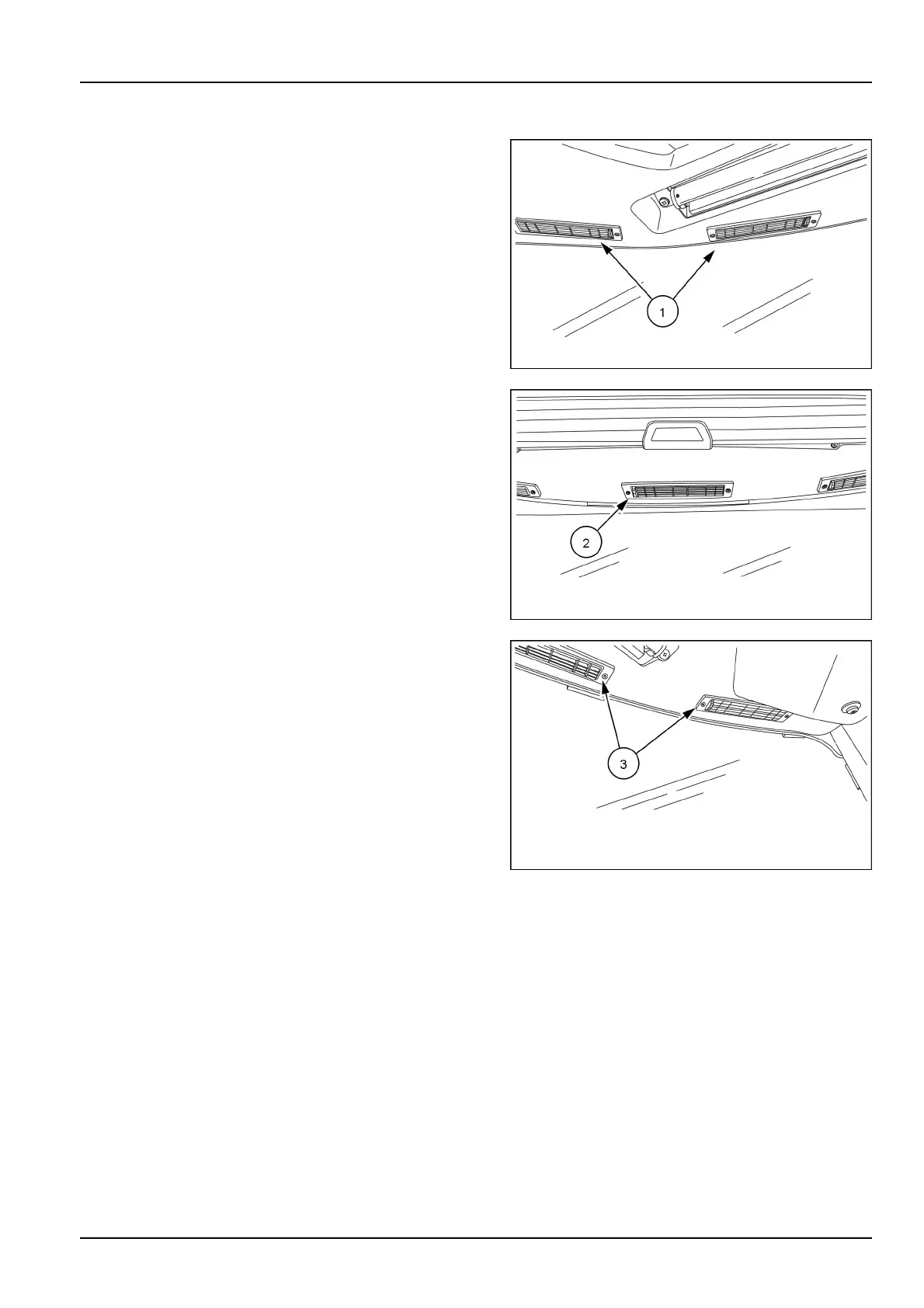

Therearevedefrosterventsinthecabinteriorroofjust

abovethewindshield;twoleft-handvents(1),onecenter

vent(2),andtworight-handvents(3).Theseventsare

adjustable,andcanbedirectedatthewindshieldoras

needed.

RAIL17SP00270AA4

RAIL17SP00230AA5

RAIL17SP00290AA6

3-11
