3-CONTROLSANDINSTRUMENTS

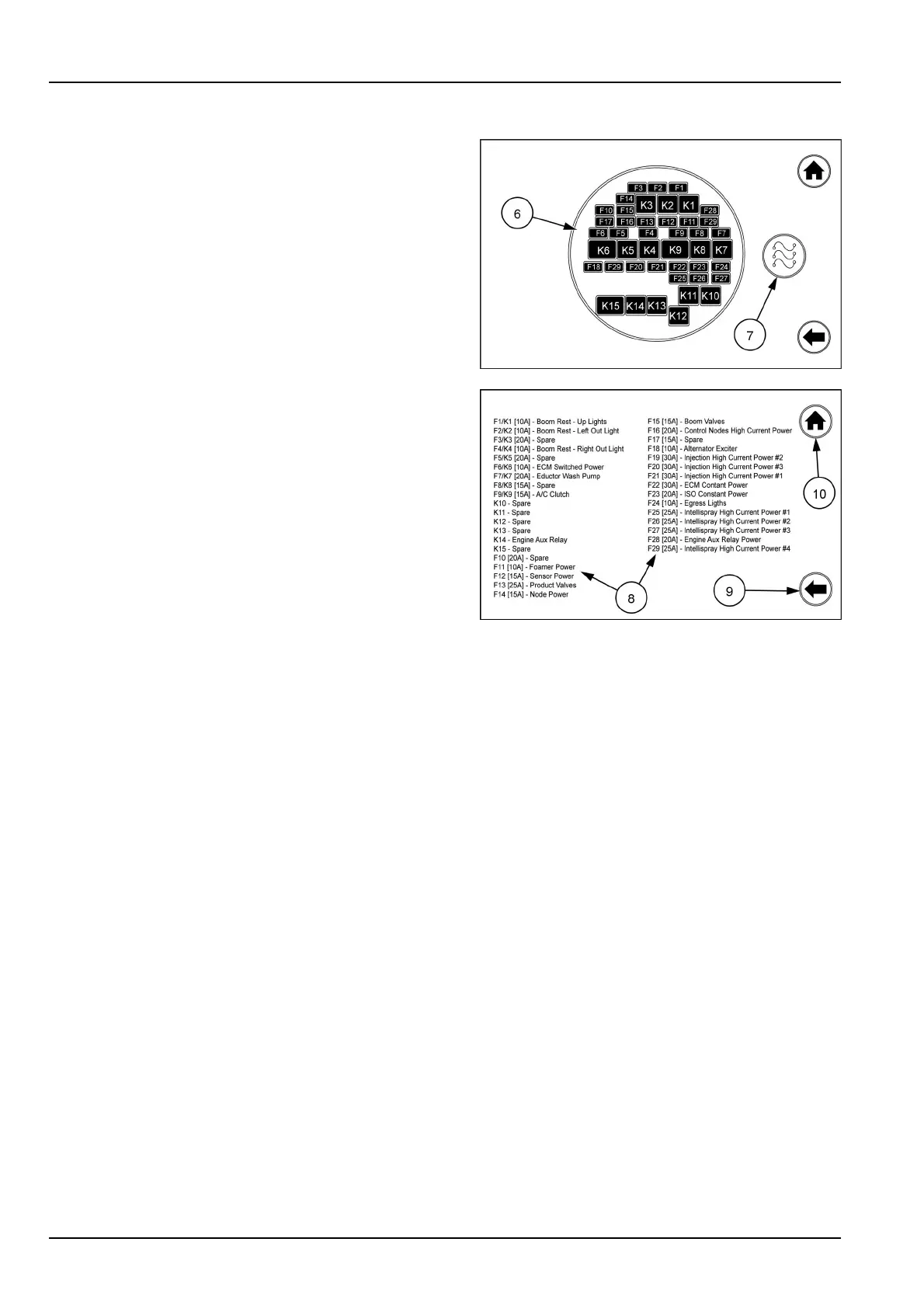

Engineendfuseandrelayblock
Touchtheengineicontobringuptheactualfuseandrelay
block(6).Touchtheicon(7)totherightofthefuseand
relayblocktobringupalistofthefusesandrelays(8)and
whattheyprotect.
Togobackonescreen,touchthebackarrowicon(9)at
thelowerright-handcornerofthescreen.
Touchthehomeicon(10)atthetopright-handcornerto
returntothehomepage.
Whenafusehasfailedtheindividualfusewillturnred.An
alarmwilldisplayonthehomepageofthearmrestdisplay
indicatingwhichfuseandrelaypanelhastheblownfuse.
TouchtheOKiconandthengotothesecondarmrest
displayhomepageandtouchtheappropriateicontobring
upthefuseandrelayblock.
Insidethecoverofeachfuseblockareseveralspare
fusestouseifafuseshouldfail.
Relaysshowninthefuseandrelayblockwillturngreen
whenactive.
RAIL17SP00193AA5
RAIL17SP00194AA6
3-74
