3-CONTROLSANDINSTRUMENTS

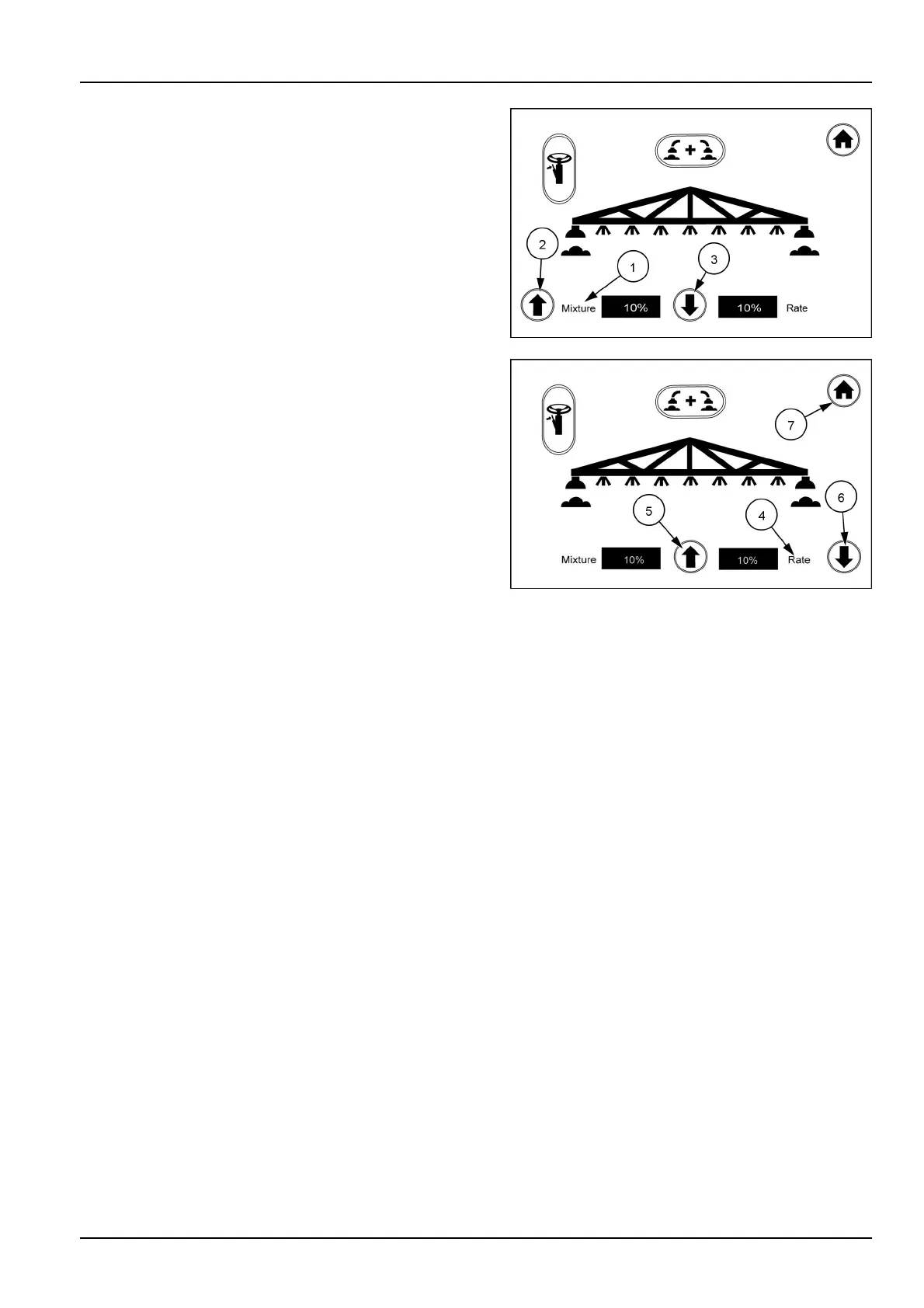

FromthefoamerscreentouchtheMixtureicon(1)and

theup(2)anddown(3)arrowswillappear.Usethear-

rowstoadjustthemixturefromdrytowet,dependingon

conditions.

FromthefoamerscreentouchtheRateicon(4)andthe

up(5)anddown(6)arrowswillappear.Usethearrowsto

adjusttherateofthefoam,dependingonconditions.

Touchthehomeicon(7)toreturntothehomepage.

RAIL17SP00206AA4

RAIL17SP00207AA5

3-87
