6-WORKINGOPERATIONS

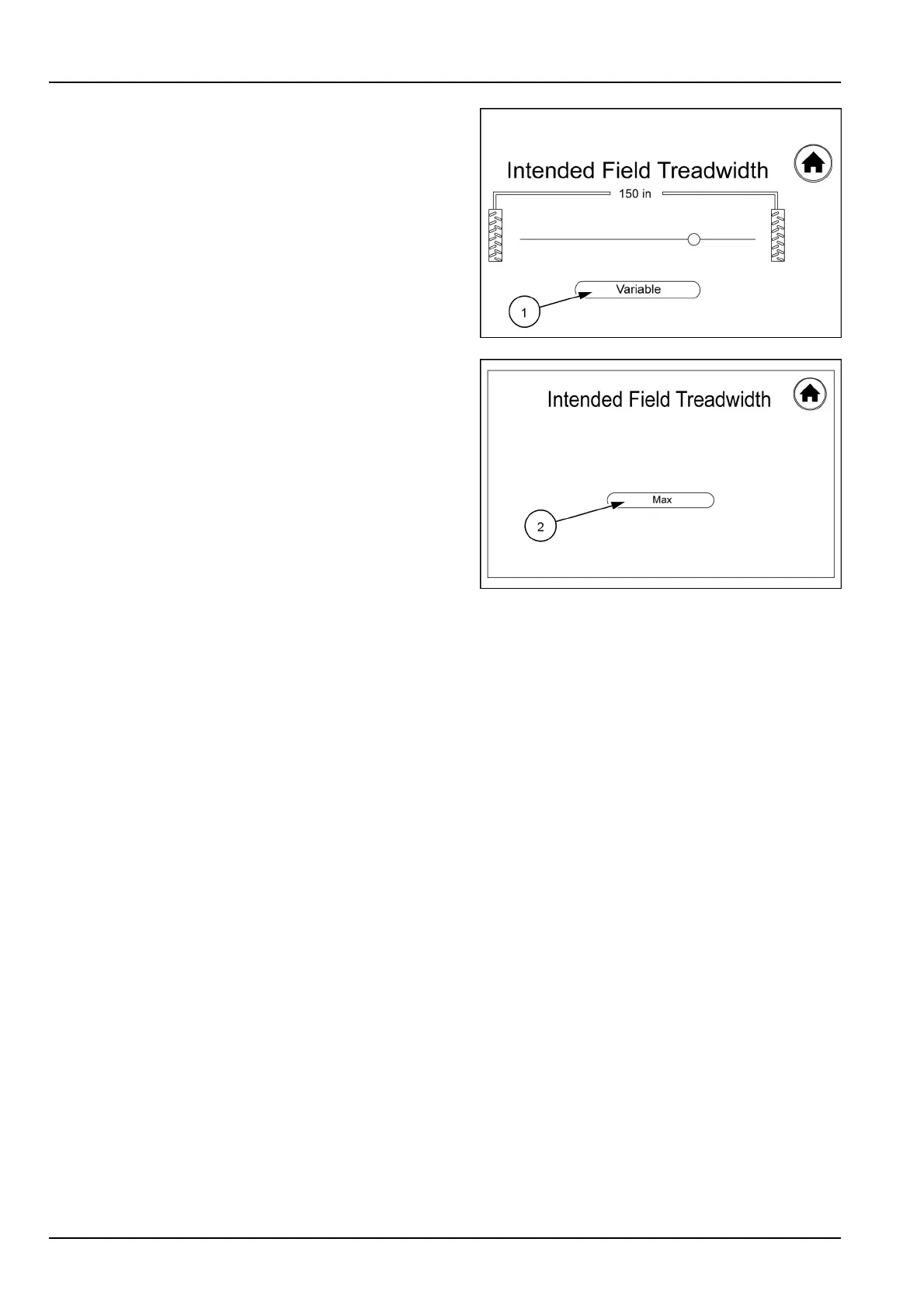

5.PresstheVariableicon(1)onthescreentochangethe

intendedeldwidthtoMax(2).TheMaxmodemoves

theslidersallthewayout.

RAIL17SP00115AA4

RAIL17SP00772AA5

6-2
