6-WORKINGOPERATIONS

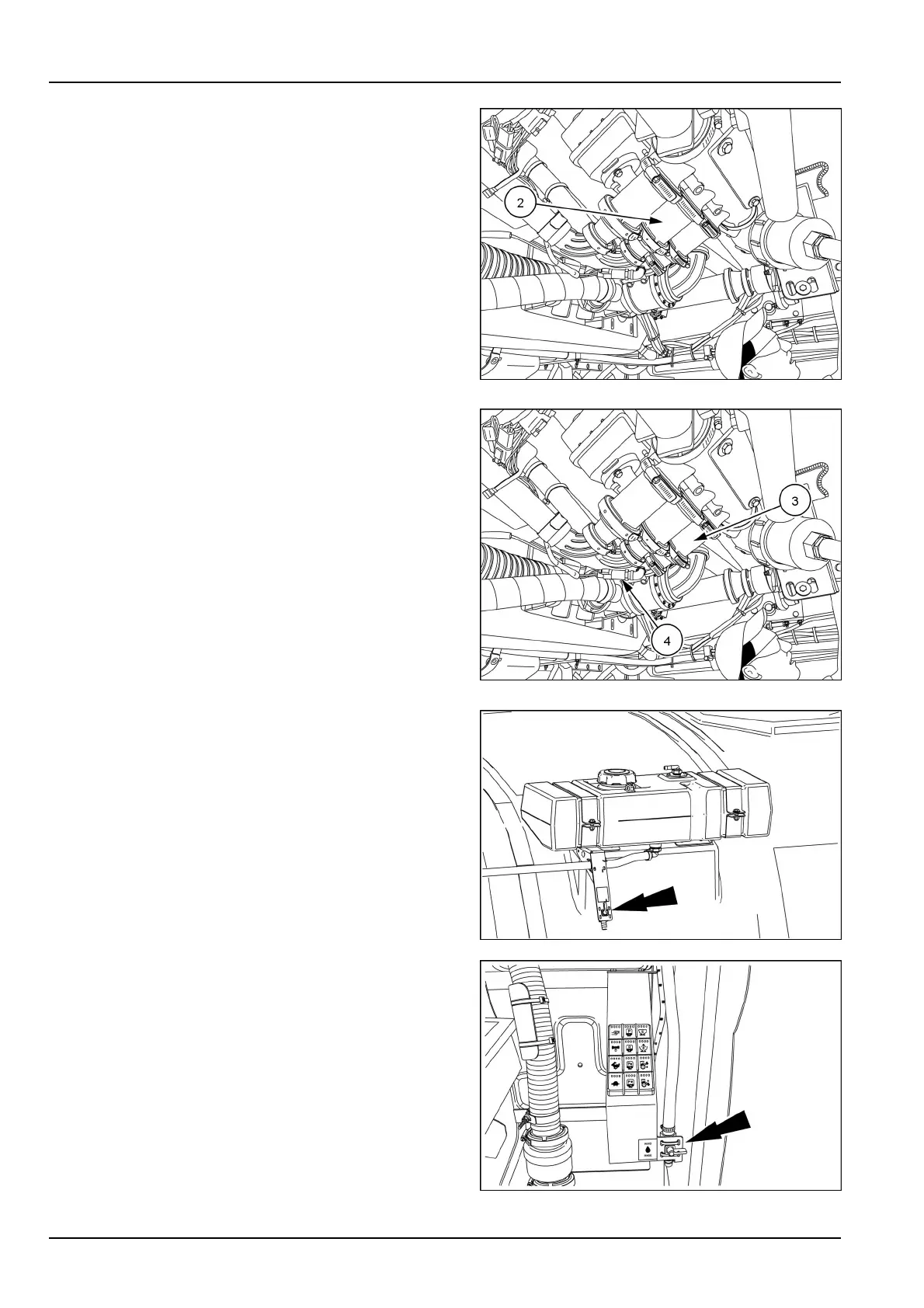

Rinsevalve

Therinsevalve(2)isthecentervalvelocatedunderthe

producttank.

RAIL17SP01001AA10

Spargevalve

Thespargevalve(3)istherearvalvelocatedunderthe

producttank.Thespargevalvehasaspargetransducer

(4)attachedtovalebody.

RAIL17SP01001AA11

Handrinsewatervalves

Therearetwohandrinsewatervalves.Oneislocatedat

theleft-handsideoftherinsewatertankandisahandop-

eratedon/offvalve.Thesecondislocatedonthell/educ-

tordoornexttothekeypadandisalsoahandoperated

on/offvalve

RAIL17SP00697AA12

RAIL17SP00873AA13

6-16
