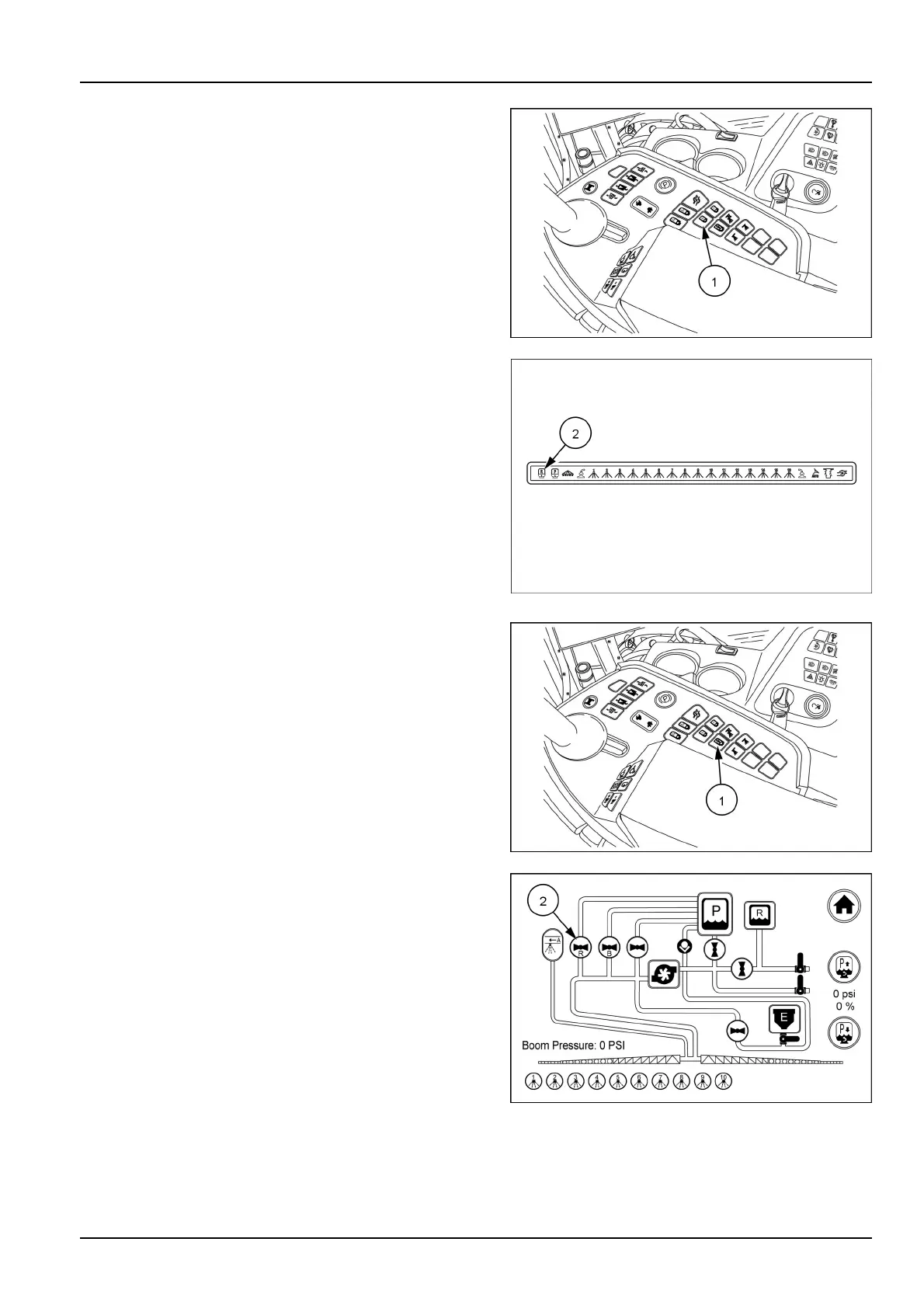

3-CONTROLSANDINSTRUMENTS
Rinsesumpon/off
Thisswitch(1)allowstheoperatortoopenandclosethe
rinsetanksumpfromtheoperatorcab.Presstheswitch
oncetoopenthesump.Presstheswitchagaintoclose
thesump.Thisvalvedoesnotneedtobeopenwhen
llingwiththefast-llfeature.Therinsetanksumpicon
(2)onthefrontoverheaddisplaywillilluminatewhenthe
sumpisopen.
NOTE:Whenyoushutthekeyoffwiththesumpopen,
thesumpwillremainopen.However,whenyouturnthe
keyon,thesumpwillclose.Youwillneedtore-openthe
sumpbeforestartingtheproductpump.
RAIL17SP00287AA25
RAIL17SP00309FA26
Producttankrinsenozzleson/off
Thisswitch(1)opensandclosestheproducttankrinse
systemvalve.Besuretherinsetankhasenoughwaterin
itbeforeturningthissystemon.Presstheswitchonceto
turnthevalveon.Presstheswitchagaintoturnoff.
Therinsesystemcanalsobeactivatedbytouchingthe
“R”valveicon(2)ontheproductcircuitscreen.
RAIL17SP00287AA27
RAIL17SP00183AA28
3-21
