3-CONTROLSANDINSTRUMENTS

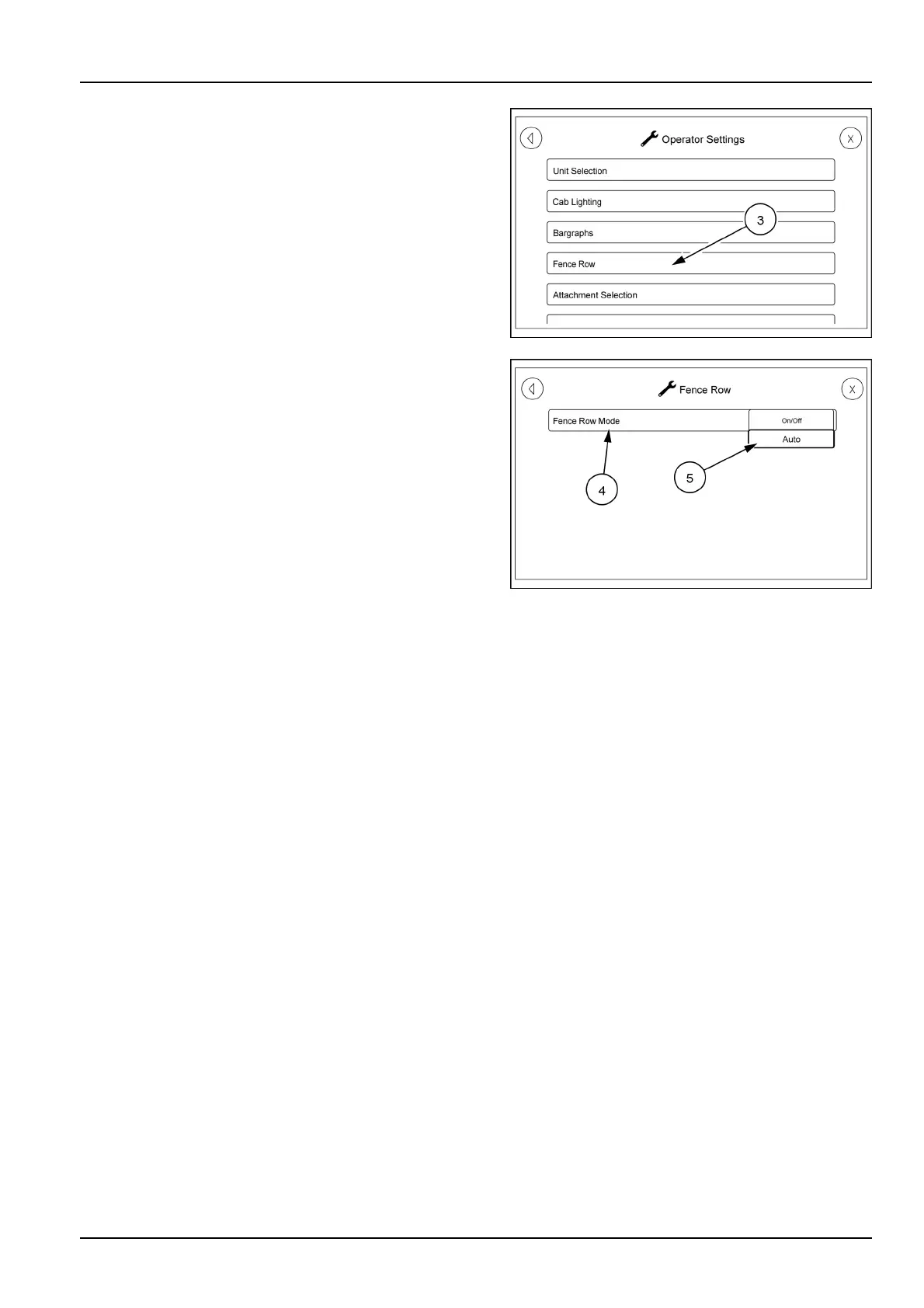

Touchthefencerowicon(3)Thiswillbringupthefence

rowmodeicon(4)Tohavetheleftorrightfencerownoz-

zleturnonautomaticallywiththeoutermostsection,you

mustturnthatfeatureonbyselectingtheautoicon(5).

RAIL17SP00144AA40

RAIL17SP00152AA41

3-25
