3-CONTROLSANDINSTRUMENTS

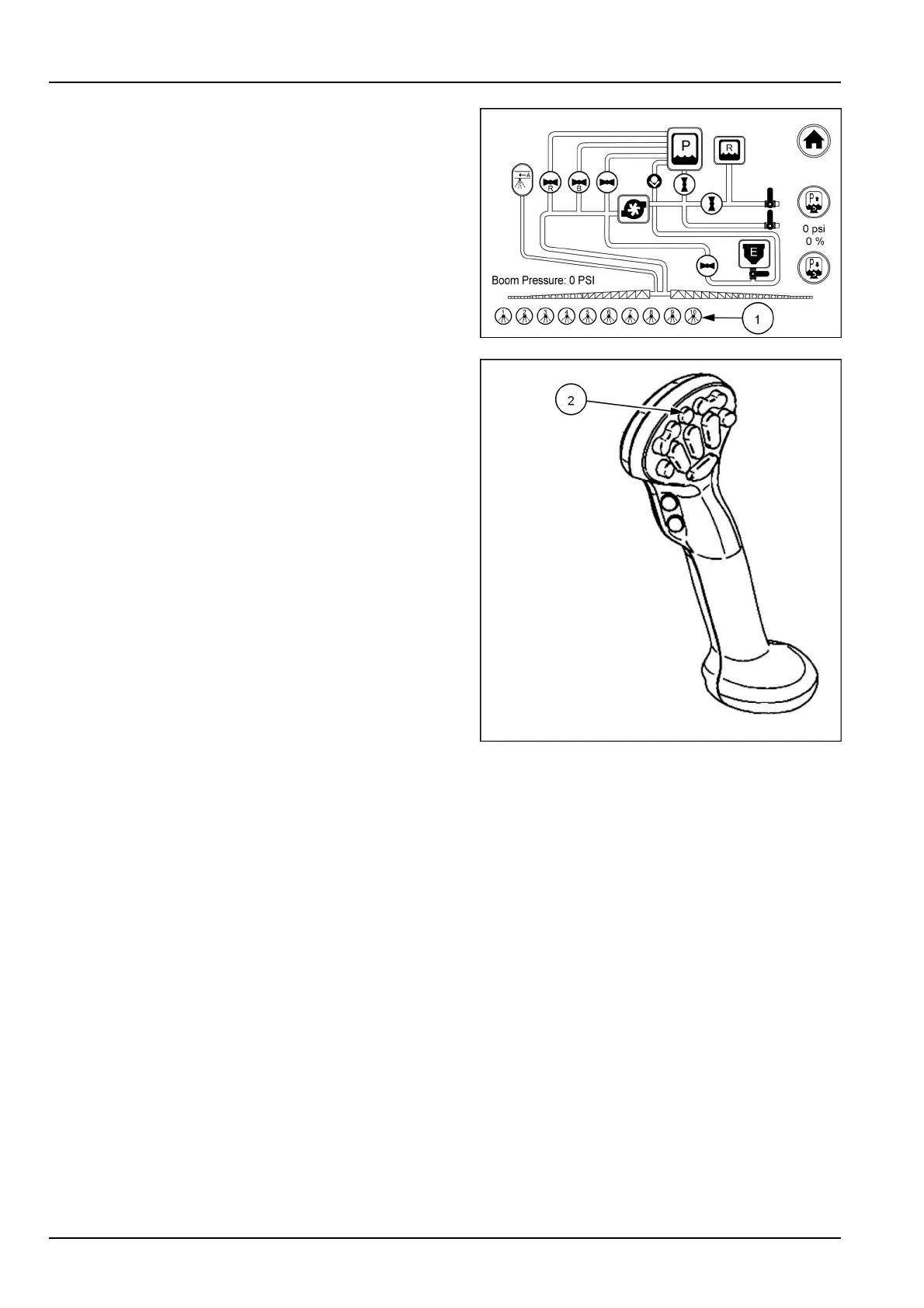

Indexsectioncontroljoystick

Referto3-62forproductpumpoperation.

Thejoystickhandlecanbereprogrammedtotheindexing

modebygoingtothemachinesetupscreenandchoosing

indexing.Activatetheindexingsystem.

Theindividualsectionscanbeturnedofffromtheouter

sectionrsttotheinnersectionsinoneoftwoways.Using

thetouchscreenyoucantouchtheindividualvalves(1)

toturnoff.Thevalvewillberedwhenoff.T oturnthe

sectionsbackonfromtheinnertowardtheouteryoucan

touchthevalvesinorderorpressthecenterbutton(2)

onthejoysticktoturnallonatonce.Thevalveswillturn

greenwhenon.

RAIL17SP00183AA27

RAIL15SP00918AA28

3-40
