5-21
2.

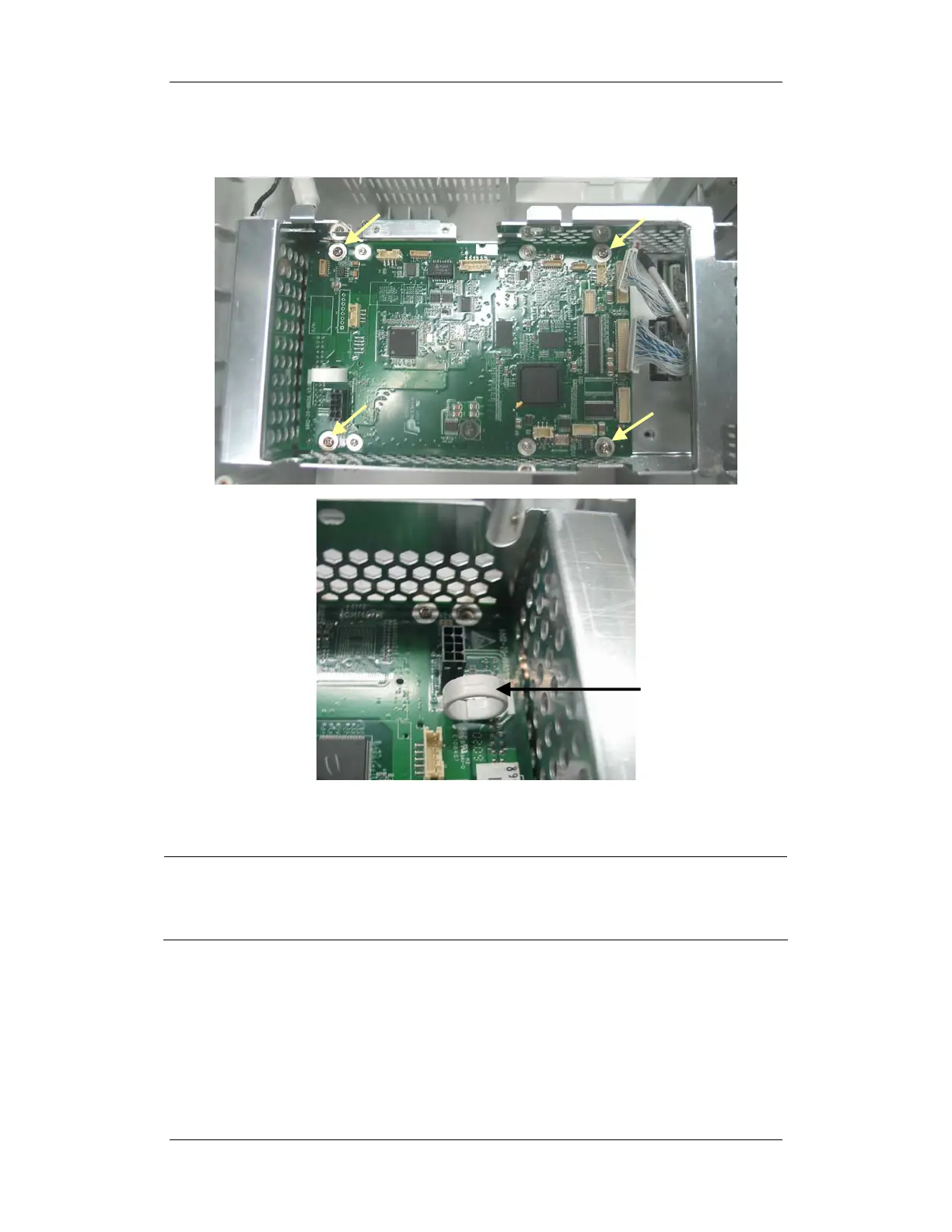

Unscrew the 4 M3
×
6 screw
s and take out the main boar
d assembly.
NOTE
z
Sinc
e the m
ain boar
d asse
mbly i
s connec
ted w
ith th
e powe
r module
via a
butt
socket
and the CPU radi
ator may b
e adhere
d to it,
the main board assembly should
be removed with force.
Take care
not
to damage th
e butt socket.
3.
Unscrew the 4 M2.5
×
6 screws on the CPU boa
rd and ve
rtically separate the CPU board
and the mother bo
ard. Take care not to damage
the butt socket.
