Mindray DPM 6 Service Manual

6-26
6.5.2 SMR Inside Assembly

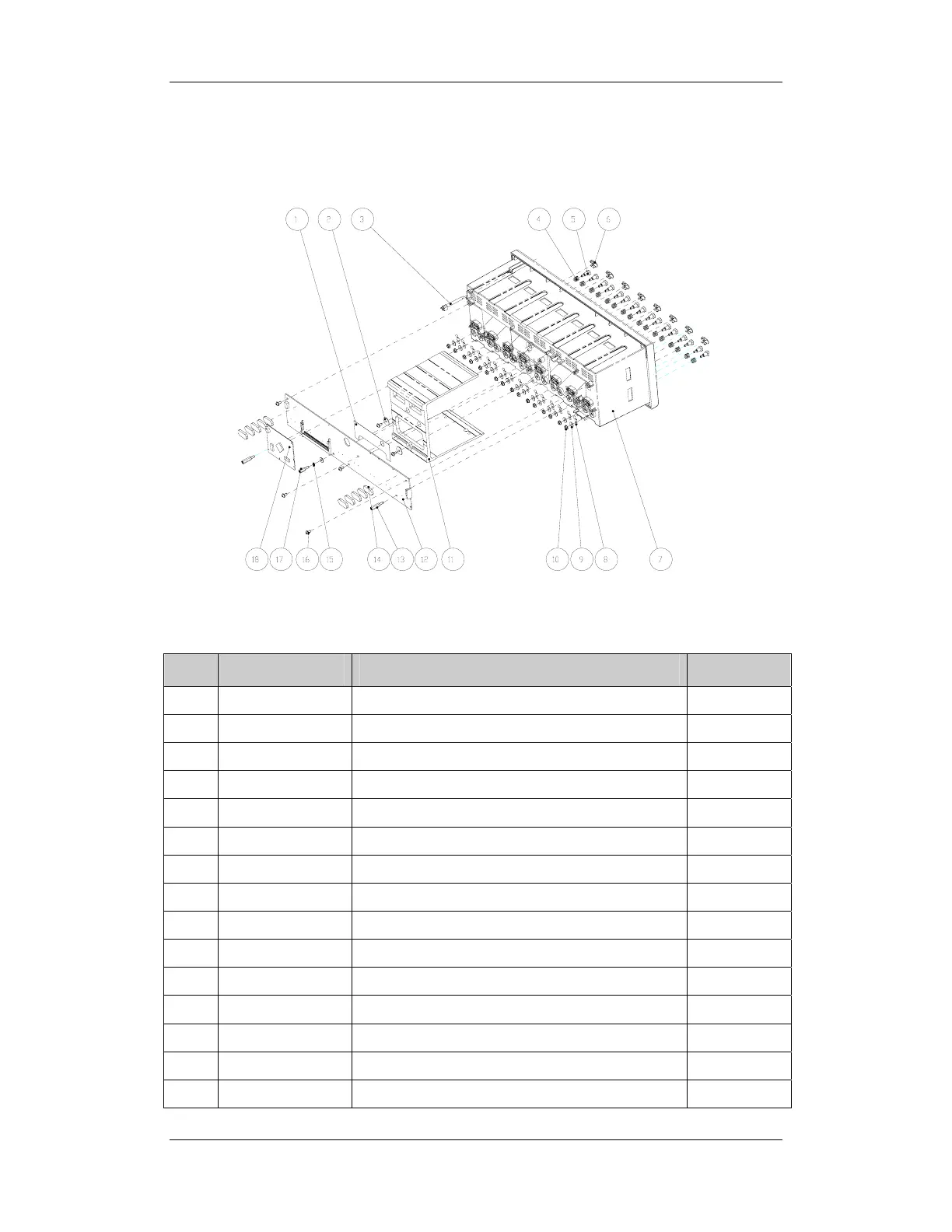

Exploded View
Parts List
SN P/N Description Qty
1 6800-20-50519 Insulating plate 1
2 9201-20-36010 Torsion spring washer 2
3 6800-20-50256 Light conducting pole 1
4 6800-20-50261 Contact spring 16
5 6800-21-51100 Contact screw 16
6 6800-20-50279 Infrared light filter 8
7 6800-20-50249-51 SMR inside assembly 1
8 6800-20-50388 Leaf 16
9 M04-021024--- Washer 17
10 M04-011002--- Hex nut assy 16
11 6800-20-50257-51 Reinforced section steel 1
12 6800-30-51153 8-slot module rack communication board 1
13 M04-004306--- Stud screw M3×16+8-8 coated with antirust nickel 2
14 6800-20-50233 Cushion 10
15 M04-000104--- Spring washer GB93 3 1
