6-20

6.4.8 Rear Housing Assembly

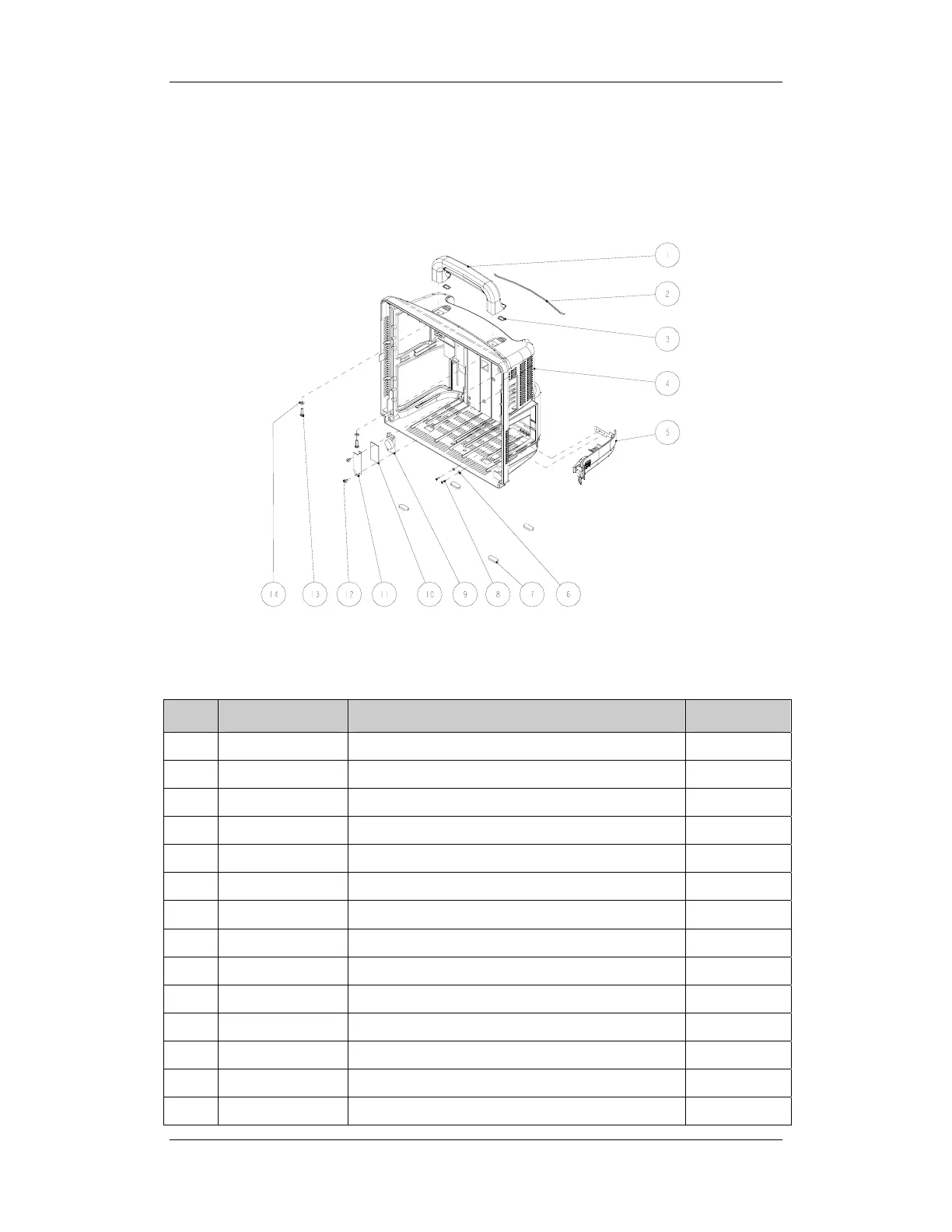

Exploded View

Parts List

SN P/N Description Qty

1 6802-20-66699 Handle 1

2 6802-20-66737 Waterproof strip for the power supply 1

3 6802-20-66736 Handle waterproof pad 2

4 6802-20-66698 Rear housing 1

5 6802-30-66764 Battery door assembly 1

6 M04-021000--- Flat washer, GB97.1 2.5 2

7 6800-20-50233 Cushion 4

8 M04-051003--- Crosshead tapping screw PT2×6 2

9 020-000007-00 Speaker and cables 1

10 8002-20-36218 Speaker spacer 1

11 6802-20-66791 Speaker cover 1

12 M04-004012--- Crosshead screw M3×6 2

13 M04-051085--- Tapping screw PT4×14 2

14 M04-004702--- Flat washer, GB97.1 4 2
