Mindray DPM 6 Service Manual

6-1
6 Parts
6.1 Introduction
This chapter contains the exploded views and parts lists of the main unit, satellite module
rack and the parameter modules of the patient monitor. It helps the engineers to identify the
parts during disassembling the patient monitor and replacing the parts.

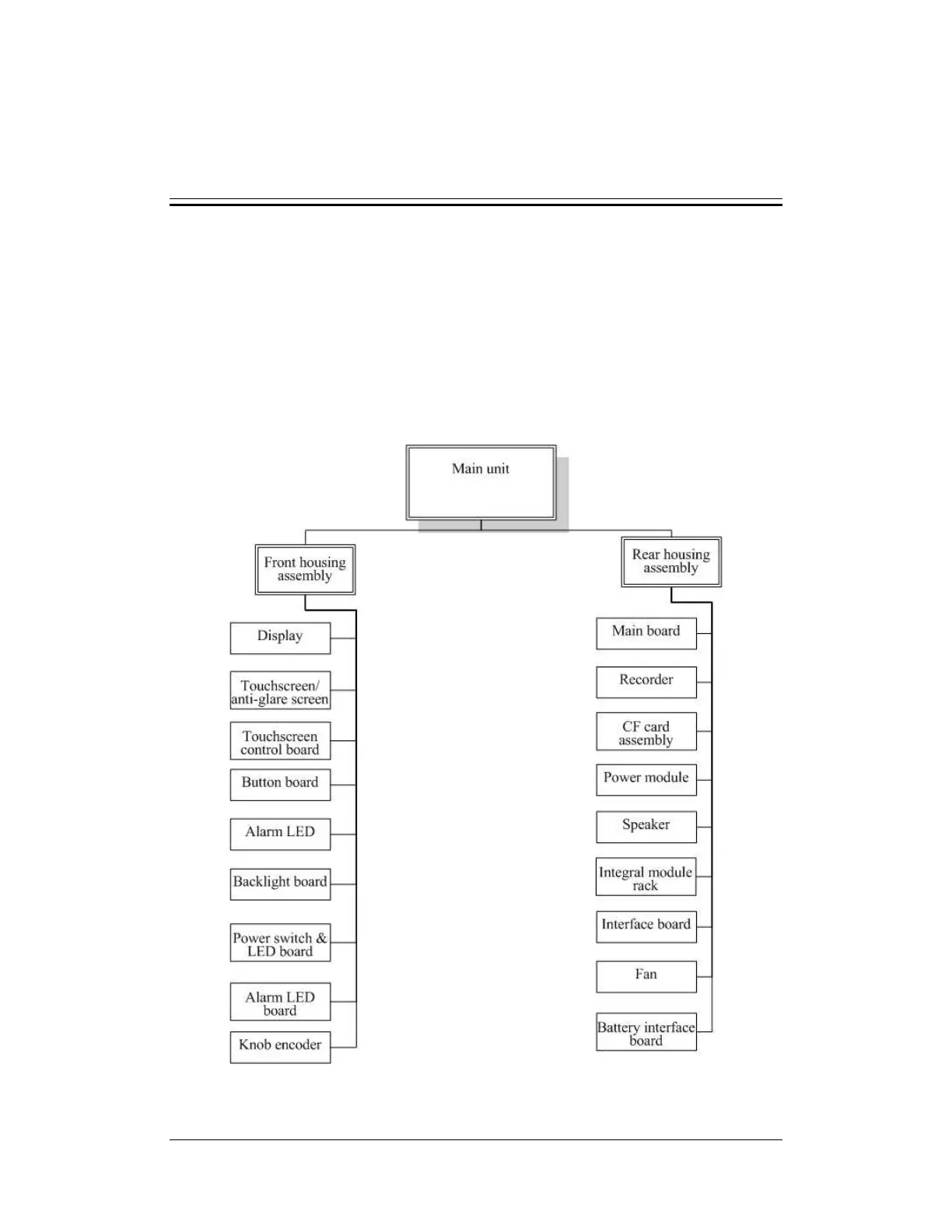

Hardware architecture of the main unit is shown below:
Remark: In the following tables, the P/N with the mark * is the specified P/N for DPM6
Standard configuration model.
