6.5 SMR

6.5.1 SMR Assembly

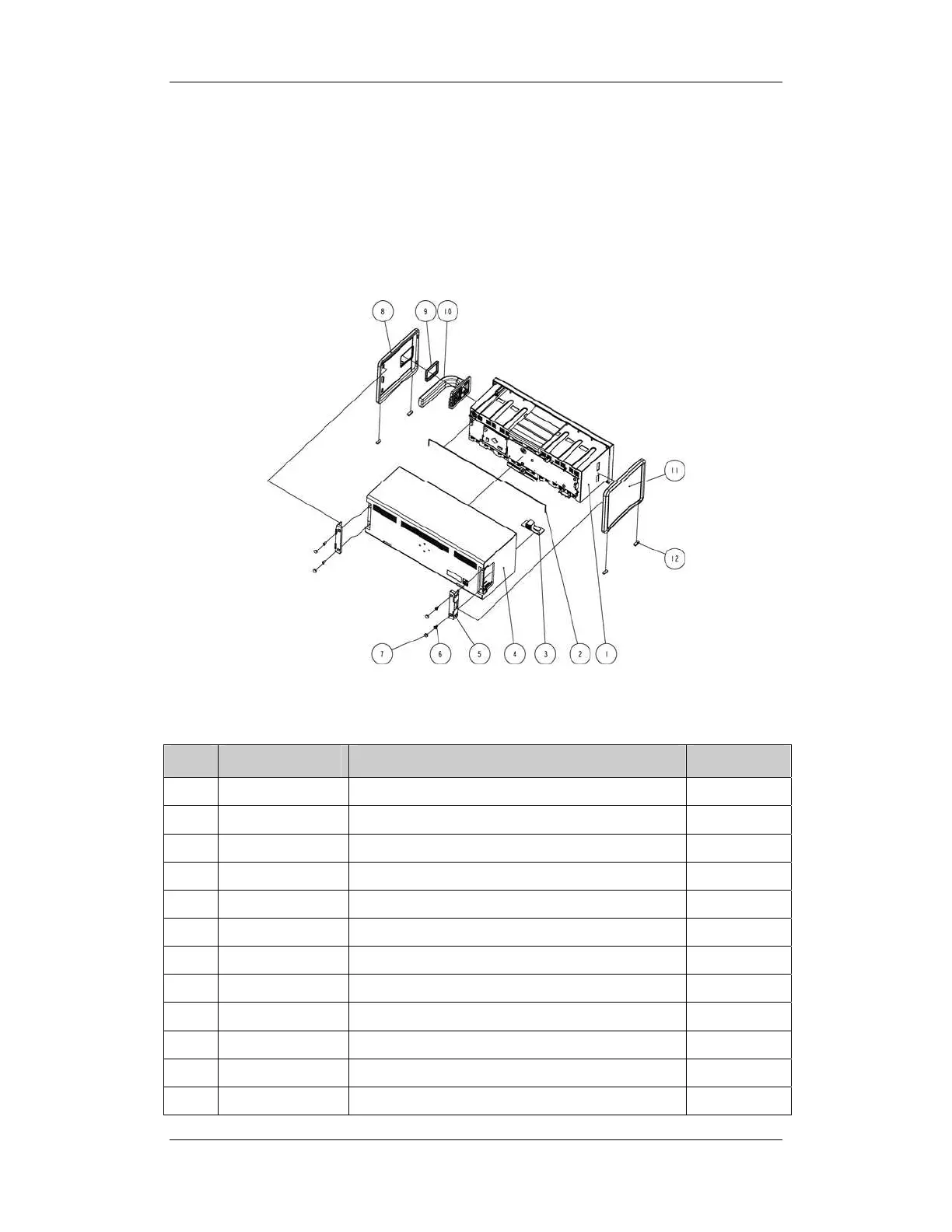

Exploded View

Parts List

SN P/N Description Qty

1 6800-20-50249-51 SMR inside assembly 1

2 M6G-020015--- Hose 1

3 6800-30-51154 Module rack interface board 1

4 6800-20-50250 SRM Rear housing 1

5 6800-20-50254 Side plate fixture 2

6 M04-004015--- Crosshead screw M3×8 4

7 6800-20-50308 Screw cap 2 4

8 6800-20-50253 Side plate, right 1

9 6800-20-50262 Rubber washer 1

10 6800-20-50251 SMR handle 1

11 6800-20-50252 Side plate, left 1

12 6800-20-50263 Cushion 4
