5. Adjust the calibration value in the [Maintain IBP] menu until it is equal to the reading
of sphygmomanometer
6. Select the [Calibrate] button to start a calibration
7. The message [Calibration Completed!] is displayed after a successful calibration. If
the calibration failed, the prompt [Calibration Failed!] will be displayed.
3.4.7 C.O. Test
Tools required:
Medsim300B Patient simulator, or MPS450, or equivalent equipment
C.O. adapter box (CI-3 module/cable, P/N: 3010-0289 for 300B, P/N: 5180500 for
MPS450)
C.O. trunk cable (PN: 0010-21-42716)
Follow this procedure to perform the test:
1. Connect the patient simulator and the C.O. module using a C.O. trunk cable and a C.O.
adapter box.
2. Set the blood temperature (BT) to 37ºC on the patient simulator and check the
temperature value displayed on the monitor is 37 ± 0.2ºC.
3. On the patient monitor, set [Auto IT] to [Off], [IT] to 2ºC, and [Comp. Const.] to
0.595 in the [C.O. Setup] menu. Select [C.O. Measure] to enter the C.O. measurement
window.
4. Select [Start] in the C.O. measurement window to start C.O. measurements.
5. On the patient simulator, set C.O. to 5L/min and wait for 3 to 10 seconds.
6. Verify that the C.O. value displayed on the monitor is 5±0.25L/min.

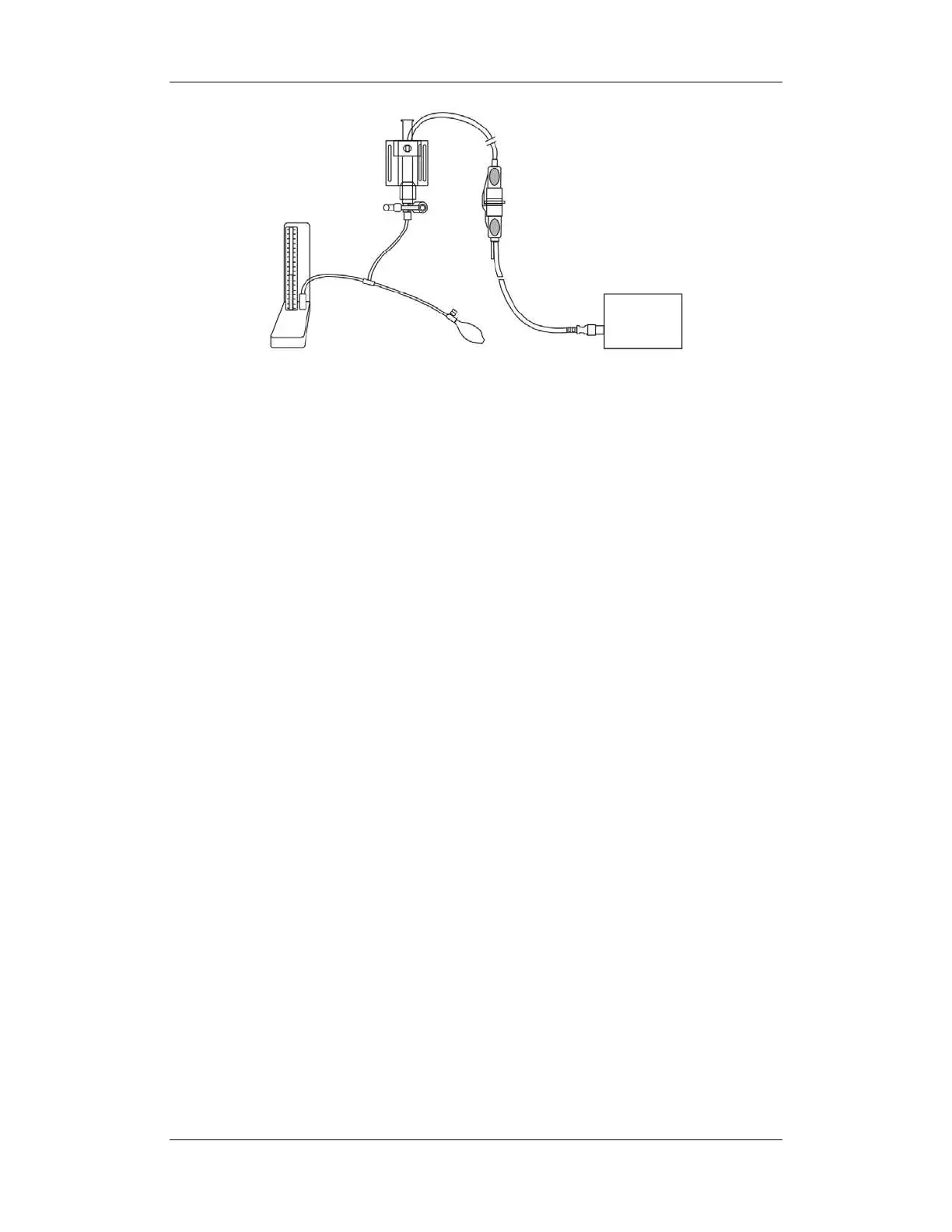

Sphygmomanometer
T-shape connector
3-way stopcoc
Pressure transduce
Pressure adapter cable
IBP Module
