Mindray DPM 6 Service Manual

5-32
5.5 Disassembling Modules
WARNING
z For a reassembled module, a patient leakage current test must be performed
before it is used again for patient monitoring.
z Make sure the monitor is off before disassembling the modules.
The monitor supports three types of modules, single-slot modules, 2-slot modules and 3-slot
modules. The following part describes two typical disassembling procedures.
5.5.1 Disassembling the ICG Module

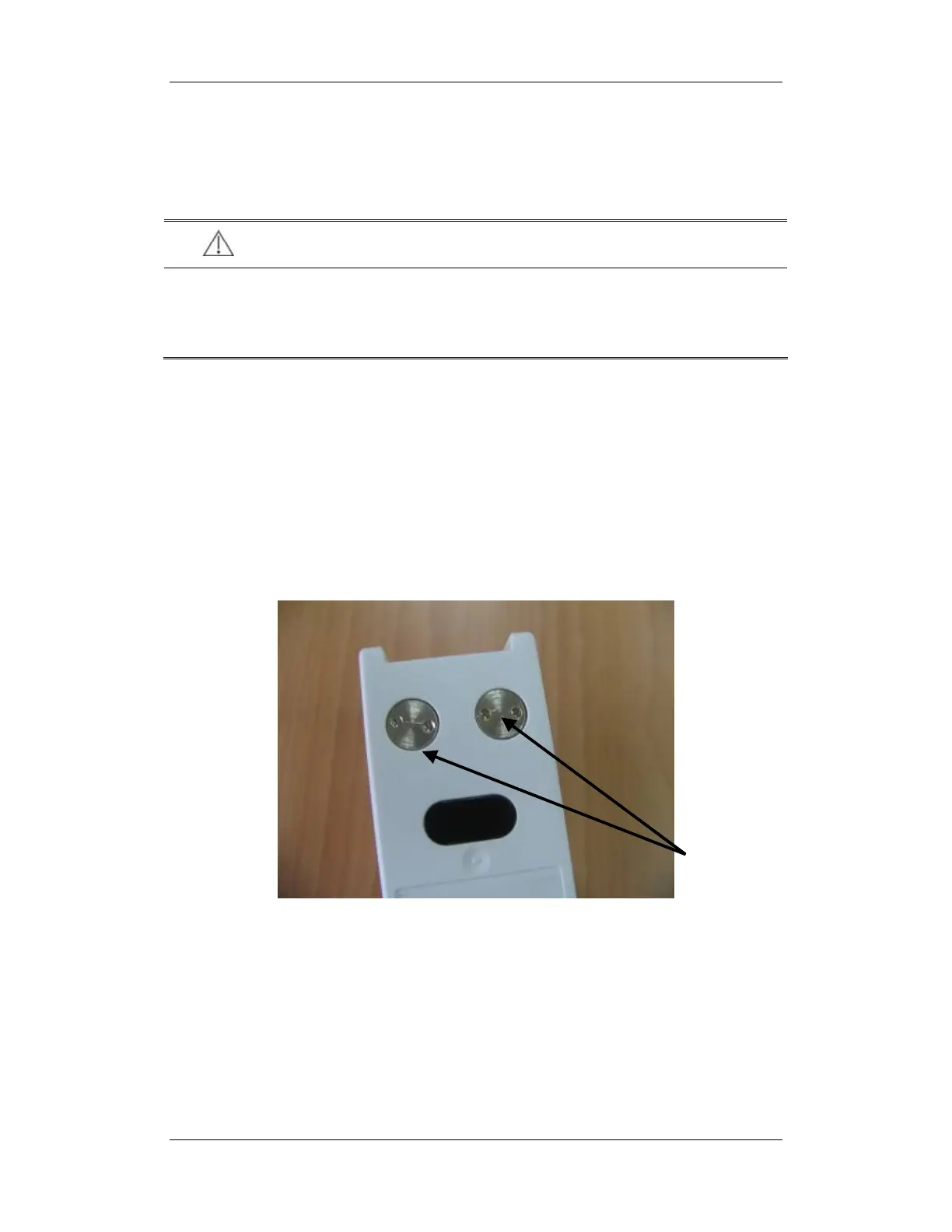

1. Unscrew the two contact screws andф3 spring washers on the back of the module with
a dedicated contact spanner.
Contact screw
