6.6.4 RM Module

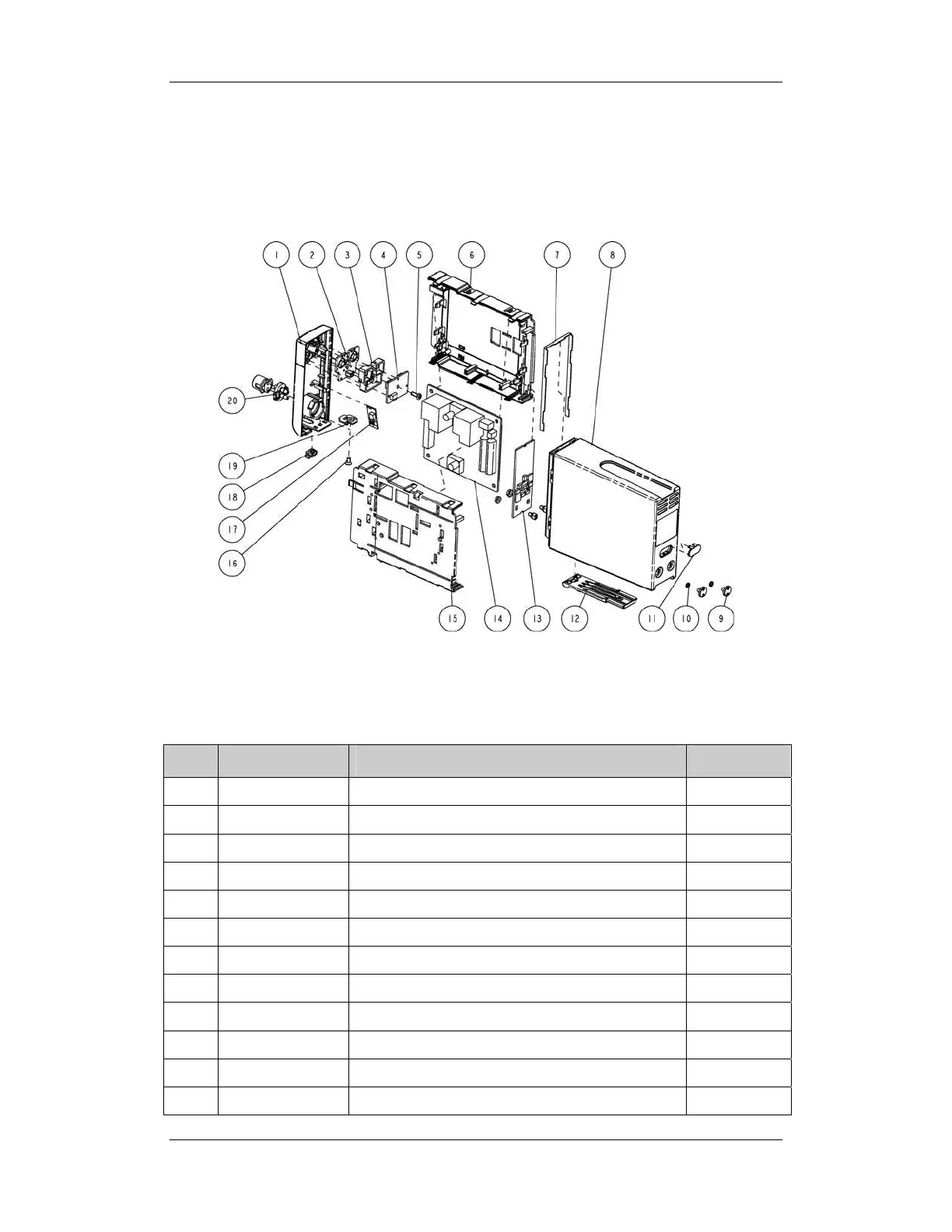

Exploded View

Parts List

SN P/N Description Qty

1 6800-20-50264-53 Single-slot module front panel (RM/English) 1

2 6800-20-50284 Key pad for single-slot module 1

3 6800-20-50282 Key pad fixture for single-slot module 1

4 6800-30-50114 Button board for Single-slot module 1

5 M04-003105--- Tapping screw PT3×8 1

6 6800-20-50269 Single-slot module inner housing, left side 1

7 6800-20-50338 Waterproof seal 01 1

8 6800-20-50268 Single-slot module rear housing 1

9 6800-20-50293 Screw 2

10 M04-000104--- Spring washer 2

11 6800-20-50279 Infrared light filter 1

12 6800-20-50278 Snap plate 1
