Mindray DPM 6 - Main Support Assembly

6-19
12 M04-060026--- Stud screw M3×7+6-6 coated with antirust nickel 5
13 6802-20-66710 Grounding leaf 2
14 M04-004012--- Crosshead screw M3×6 2
15 M04-000206--- Stud screw M3×6+8-5 coated with antirust nickel 2
16 6800-30-50073 MPM module rack communication board 1
6.4.7 Main Support Assembly

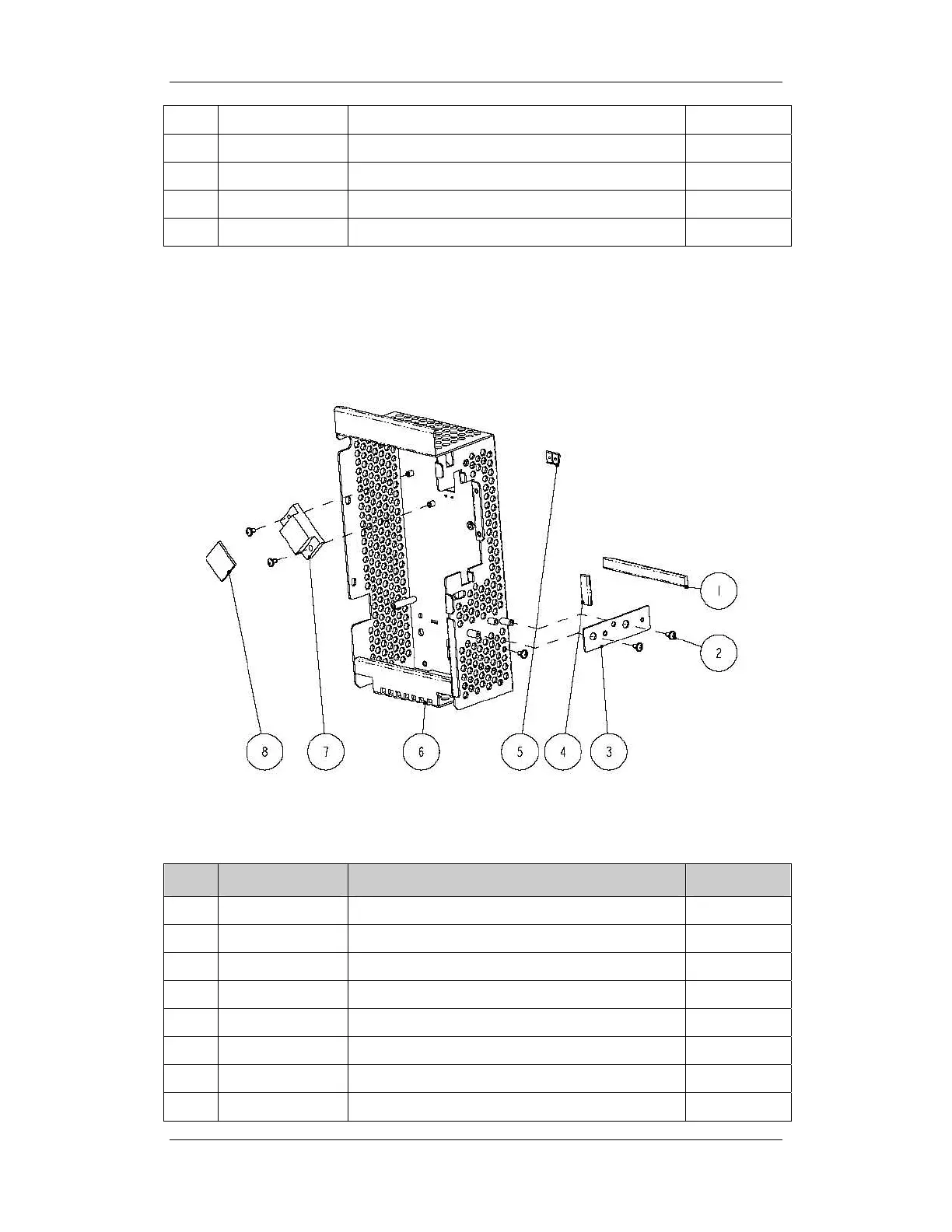

Exploded View
Parts List
SN P/N Description Qty
1 M6T-030008--- Conducting block 9.5×3.2 1
2 M04-004012--- Crosshead screw M3×6 5
3 6802-20-66718 Recorder fixing plate 1
4 M6T-030008--- Conducting block 9.5×3.2 1
5 M6T-030006--- Leaf 2
6 6802-20-66717 Main support 1
7 6802-20-66789 CPU radiator 1
8 6802-20-66793 CPU heat conductor 1
