5.5.2 Disassembling CO
2
Module

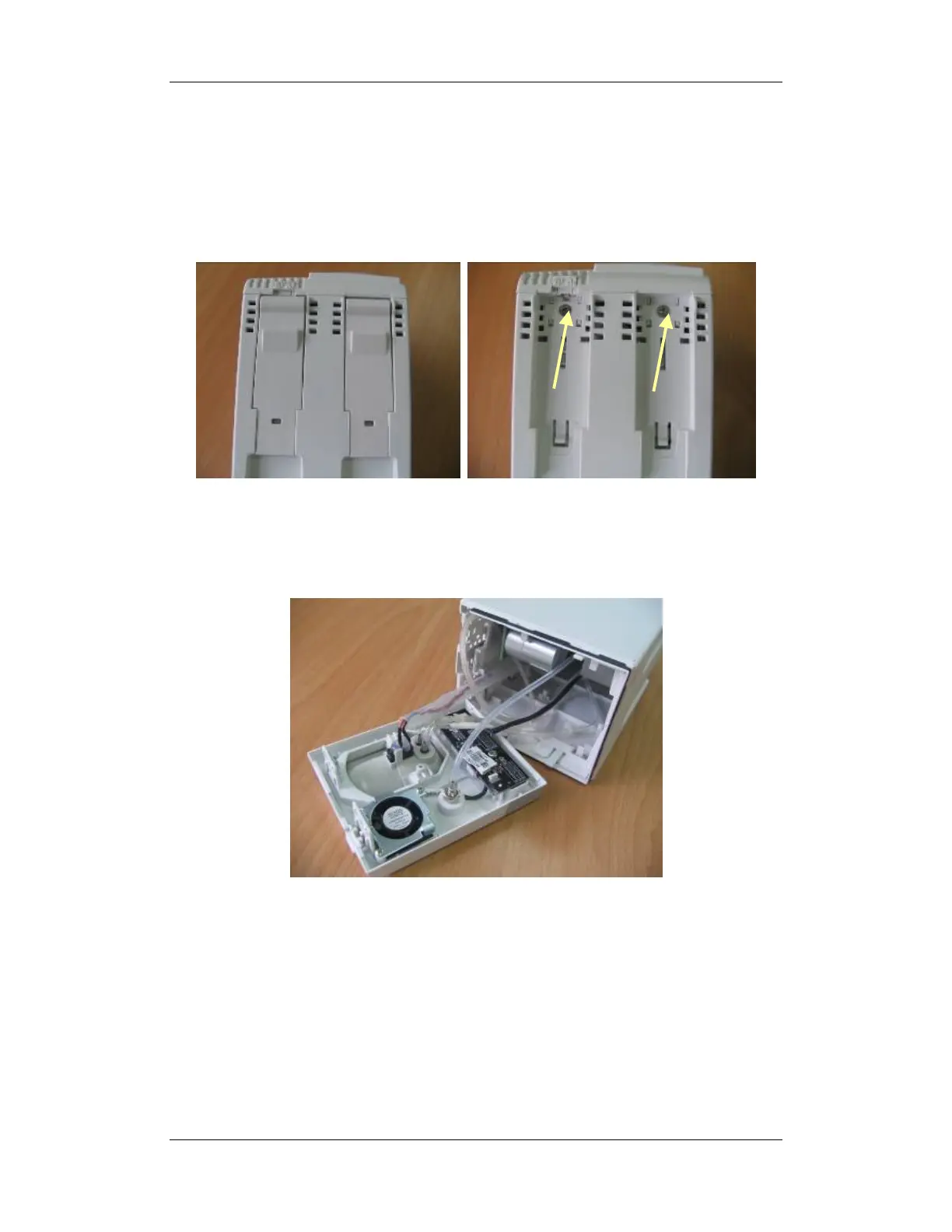

1. Remove the four contact screws on the back and the two snap plates at the bottom and
then unscrew the two M3×6 screws by referring to the procedure as described in 5.5.1
Disassembling the ICG Module.
2. Remove the module’s front panel by referring to the procedure as described in 5.5.1
Disassembling the ICG Module. Then, press the two clips on the inner housing about
1mm inwards to separate the inner and outer housing. Then, take off the outer housing.
