5-18
5.3.14
Removing the w
ireless AP assembly
5.3.14.1 Removing
the internal w
ireless AP

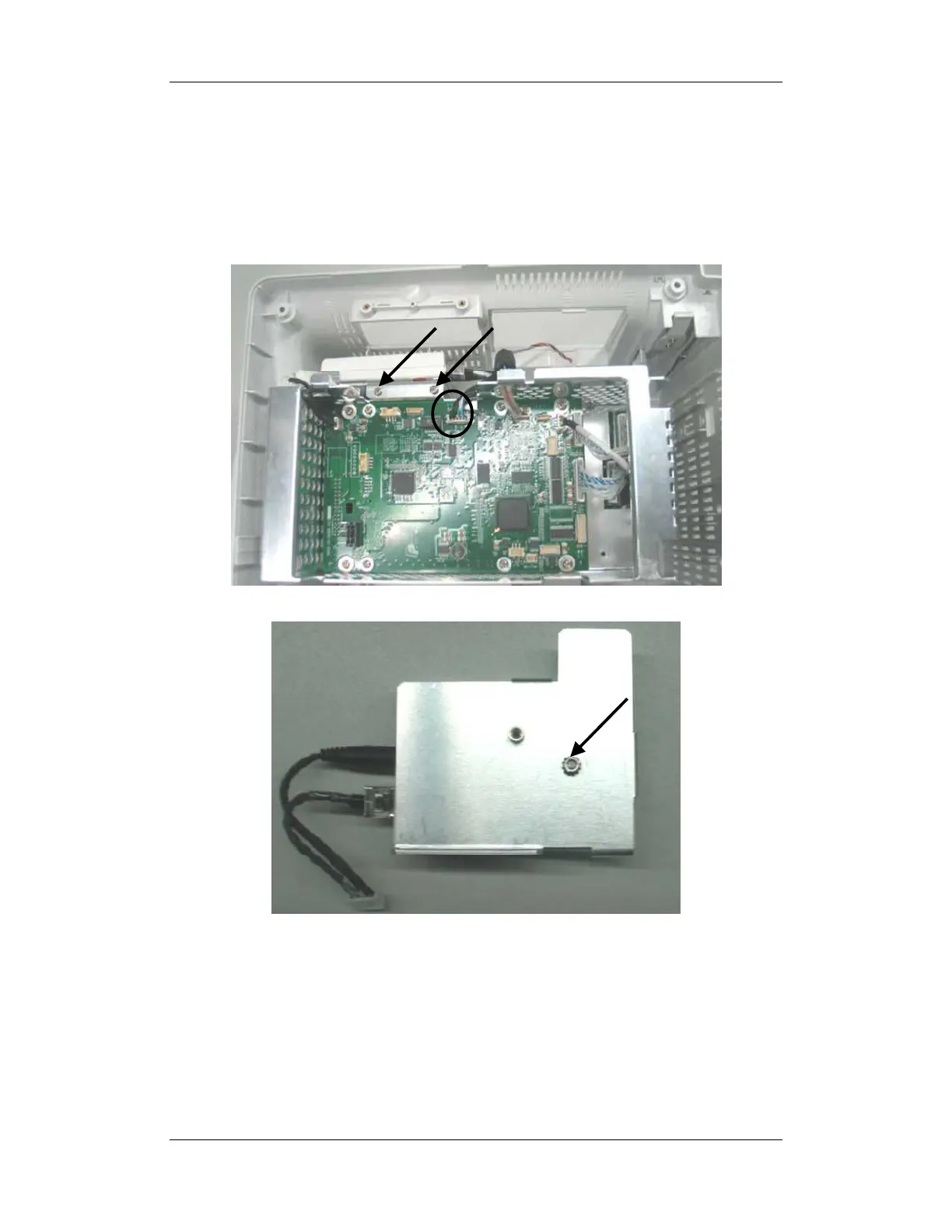

1.
Disconnect
the wireless
AP
cable. Then unscrew
the two M3
×
6 screws to remove the
wireless AP
a
ssembly
.
2.
Unscrew the M3 nut assembly to r
emove the wireless
AP
.
97
99
Table of Contents
Default Chapter
7
Table of Contents
7
1 Safety
13
Safety Information
13
Danger
14
Warnings
14
Cautions
14
Notes
15
Equipment Symbols
15
2 Theory of Operation
17
Introduction
17
System Connections
18
Mounting the Patient Monitor
18
Connectors for Peripheral Devices
19
Main Unit
20
Input System
21
Output System
22
Processing and Communications System
24
Power Management System
26
Equipment Interface System
28
Parameter Module
30
Module Infrared Communication Board
30
Module Power Board
30
Module Button Board
30
Parameter Board
30
Smr
31
3 Testing and Maintenance
33
Introduction
33
Test Equipment
33
Test Report
34
Preventative Maintenance
34
Recommended Frequency
34
Preventative Maintenance Procedures
36
Visual Inspection
36
NIBP Tests and Calibration
37
Sidestream and Microstream CO Module Tests
40
AG Tests
42
Preventative Maintenance Test Report
45
Power on Test
46
Module Performance Tests
47
ECG Tests and Calibration
47
Resp Performance Test
48
Spo 2 Test
48
NIBP Tests
48
Temp Test
49
IBP Tests
49
Test
51
Mainstream CO Tests
52
Sidestream and Microstream CO Module Tests
53
AG Tests
53
ICG Test
54
BIS Test
54
RM Test
55
Cco/Svo Tests
56
Nurse Call Relay Performance Test
57
Analog Output Performance Test
57
Electrical Safety Test
58
Touchscreen Calibration
58
Recorder Check
58
Network Print Test
59
Equipment Connection and Setup
59
Print Function Test
59
Battery Check
60
Factory Maintenance
61
Accessing Factory Maintenance Menu
61
Drawing Waves
61
Recorder
61
Software Version
62
Monitor Information
63
Calibrate NIBP
63
4 Troubleshooting
69
Introduction
69
Part Replacement
69
Patient Monitor Status Check
69
Software Version Check
70
Technical Alarm Check
70
Troubleshooting Guide
70
Power On/Off Failures
70
Display Failures
71
Module Rack Failures
72
Alarm Problems
74
Button and Knob Failures
75
Recorder Failures
75
Output Interface Failures
76
CF Card Problems
76
Power Supply Failures
77
Network Related Problems
78
Software Upgrade Problems
79
Technical Alarm Messages
79
M51A Self Test Information
79
5 Repair and Disassembly
81
Tools
81
Preparations for Disassembly
81
Disassembling Procedure
82
Removing the Recorder
82
Separating the Front and Rear Housing
86
Removing the Power Switch & LED Board
88
Removing the Knob Encoder
88
Removing the Button Board
89
Removing the Touchscreen Control Board
90
Removing the Inverter
90
Removing the LCD
91
Removing the Alarm LED Board
92
Removing the Fan Assembly
93
Removing Battery Compartment Assembly
93
Removing the Integral Module Rack
94
Removing the CF Card Assembly
97
Removing the Wireless AP Assembly
98
Removing the Main Board
100
Removing the Speaker
102
Removing the Power Module Assembly
103
Removing the Main Support
105
Removing the Interface Board Assembly
105
Removing the SMR Assembly
108
Disassembling Modules
112
Disassembling the ICG Module
112
Disassembling CO Module
116
Disassembling the New MPM Module
122
6 Parts
127
Introduction
127
Main Unit
128
Exploded View
128
Parts List
128
Front Housing Assembly
129
LCD with Anti-Glare Screen
129
LCD with Touchscreen
131
Screen Assembly (with Anti-Glare Screen)
133
Screen Assembly (with Touchscreen)
135
Main Unit
136
Main Unit Assembly
136
Battery Compartment Assembly
138
Power Module Assembly
139
Interface Board Assembly
140
Main Board Assembly
143
Integral Module Rack
144
Main Support Assembly
145
Rear Housing Assembly
146
CF Card Assembly
147
6802 Internal Wireless AP Assembly
149
Recorder Assembly
150
Smr
151
SMR Assembly
151
SMR Inside Assembly
152
Parameter Modules
153
MPM Module
153
New MPM Module
154
Module
156
RM Module
158
ICG Module
159
AG Module
161
BIS Module
163
IBP Module
165
Mindray CO Module
166
Oridion CO Module
168
CCO Module
169
Remote Display Box
171
Wireless AP
172
Replaceable Parts
173
Main Unit
173
Smr
175
New MPM Material
176
Parameter Modules
178
7 Upgrade
181
Introduction
181
Upgrading Parameter Modules
182
Upgrading Functional Assemblies
185
Upgrading SMR
185
Upgrading Wireless Network Function
185
Upgrading Recorder
186
Upgrading Analog Output
186
Upgrading CIS
186
Upgrading Software
187
How to Upgrade Software
188
A Electrical Safety Inspection
191
Power Cord Plug
191
Device Enclosure and Accessories
192
Visual Inspection
192
Contextual Inspection
192
Device Labeling
192
Protective Earth Resistance
192
Earth Leakage Test
194
Patient Leakage Current
196
Mains on Applied Part Leakage
197
Patient Auxiliary Current
199
Scheduled Electrical Safety Inspection
201
Electrical Safety Inspection after Repair
202
