Mindray DPM 6 Service Manual

6-24
6.4.11 Recorder Assembly

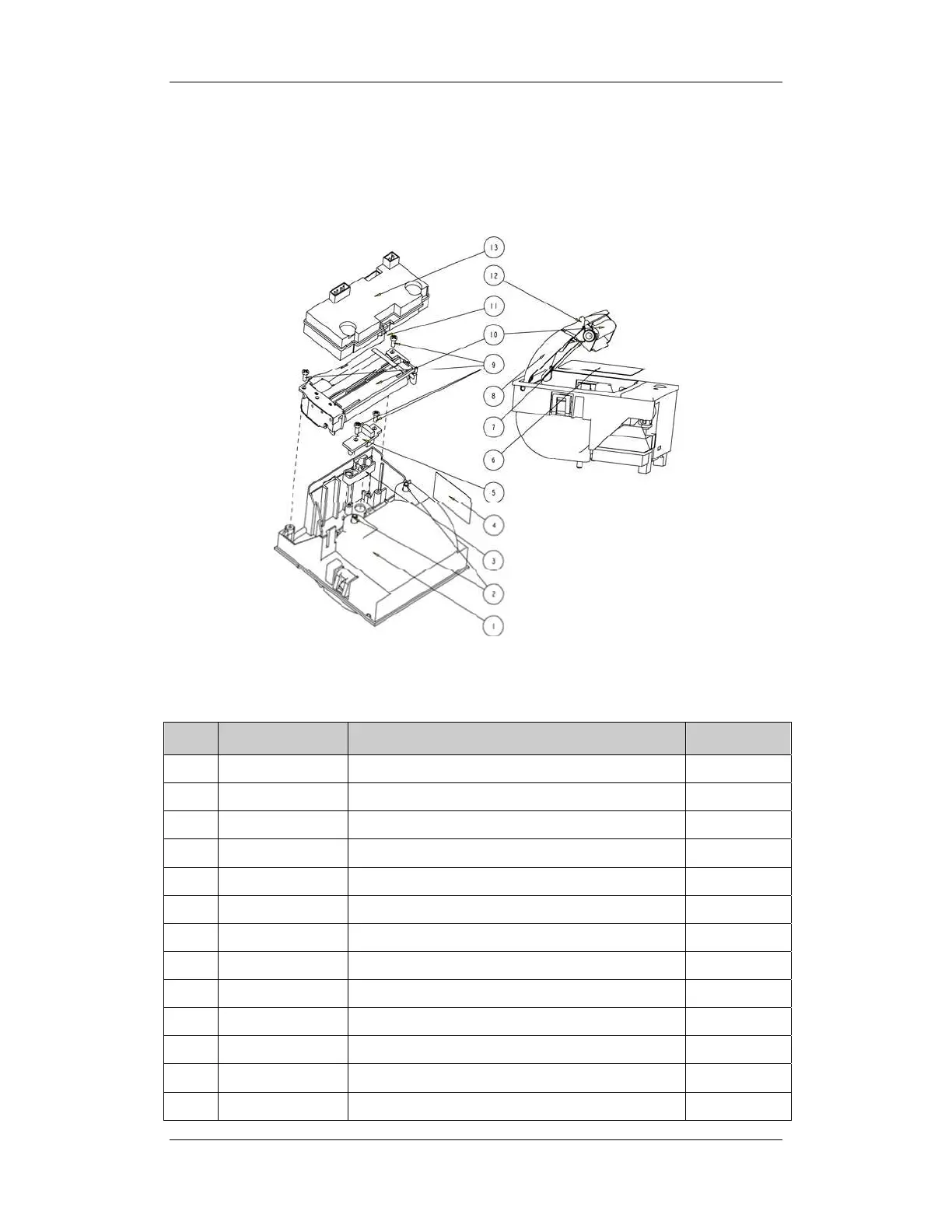

Exploded View
Parts List
SN P/N Description Qty
1 TR6F-20-67300 Recorder chamber 1
2 M04-004012--- Crosshead screw M3×6 2
3 TR6F-20-67305 Key pad 1
4 PRIA-20-13639 Probe cable label 1
5 TR6F-30-67308 Button board for the recorder 1
6 TR6F-20-67307 Recorder overlay 1
7 TR6F-20-67304 Back spring 1
8 TR6F-20-67301 Recorder door 1
9 M04-002405--- Crosshead screw M2×6 4
10 0000-10-11079 Thermal print head 1
11 9201-20-36007 Recorder grounding wire 1
12 TR6F-20-67302 Recorder door handle 1
13 TR6F-30-67310 Recorder driving board 1
