Mindray DPM 6 Service Manual

6-46
16 M04-004012--- Cross pan head screw with washer M3×6 10
17 6800-30-50058
MCF547x CPU module (basic
configuration/lead-free process)
1
18 M04-051045--- Cross pan head screw M2.5×6 4
19 M12A-20-75105 CIS box cushion 4
20 M04-000505--- Cross pan head screw M3×20 4

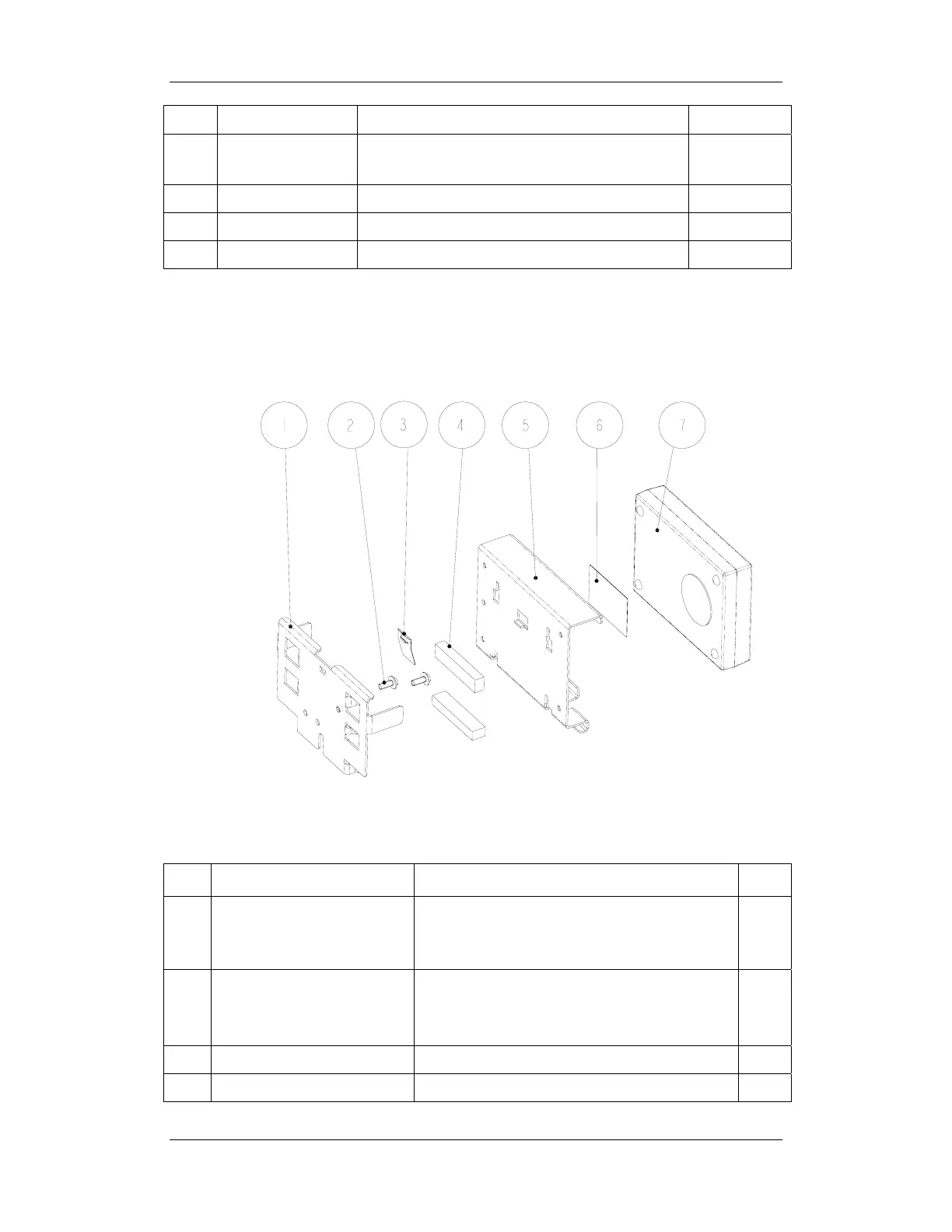

6.8 Wireless AP
Exploded View
Parts List
SN P/N Description Qty
1
9201-20-36008-51 or
9201-20-35916-51(configured
with Dlink AP)
(ASUS)Wireless network card fixed board
Wireless network card fixed board (DLINK)
1
2
M04-004015---or
M04-051147---(configured
with Dlink AP)
Cross recessed small pan head screw with
washer M3×8
Crosss recessed countersunk head screw M3×8
2
3 9201-20-36107 Wireless network card locking plate 1
4 9201-20-36109 Wireless network card spacer 2
