5-4
5.

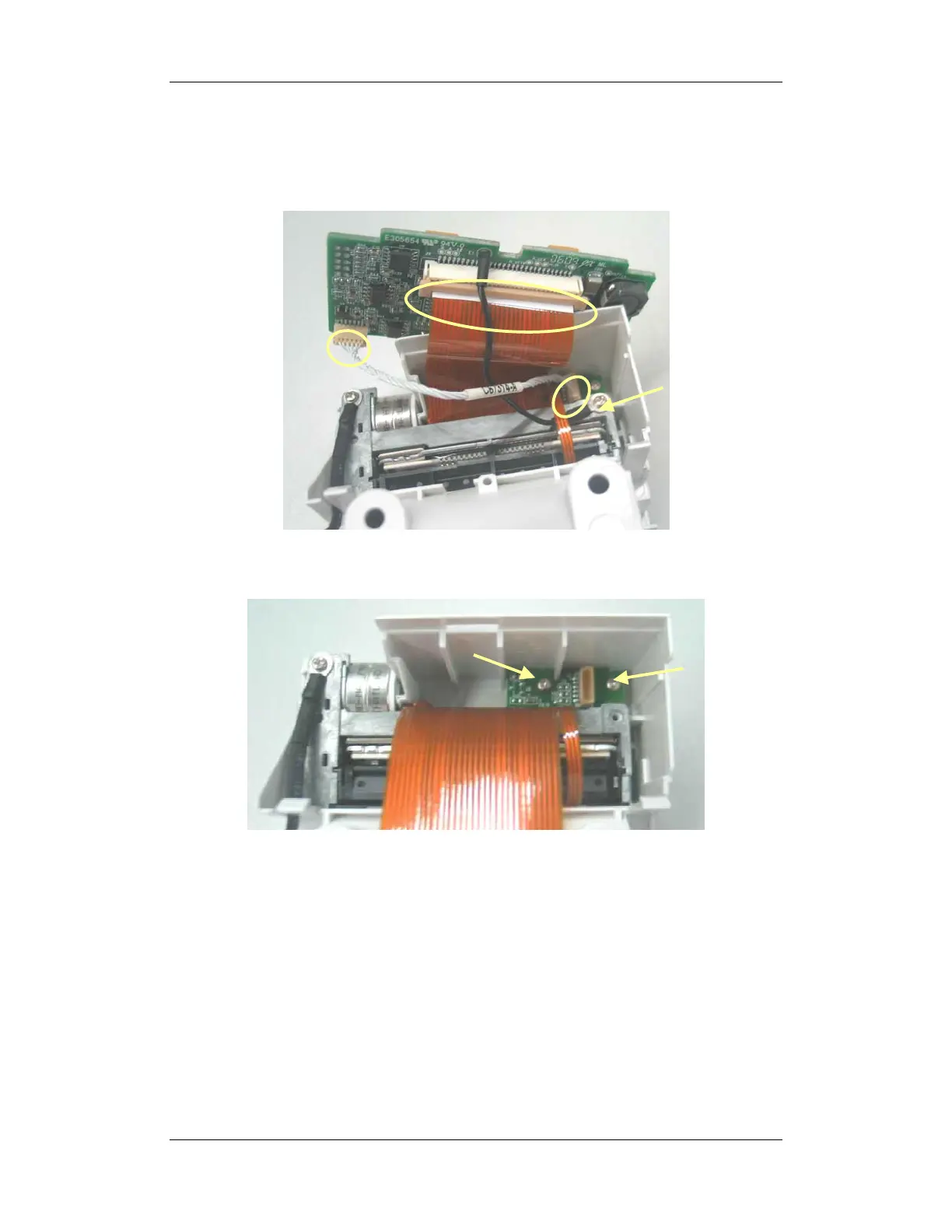

Pull the press bar
upwards about 1 mm and
then unplug the flexible cabl
e. Remove the
cable that connec
ts the driving board and t
he button board. Un
screw the PT2×6 screw
and remove the drive bo
ard’s grounding
cable.
Then take out the recorder driving board.
6.
Unscrew the two PT2×6 scr
ews and take out recorder’
s button boar
d.
83
85
