Structure and Assembly/Disassembly 8-21
6. Disassemble TGC board

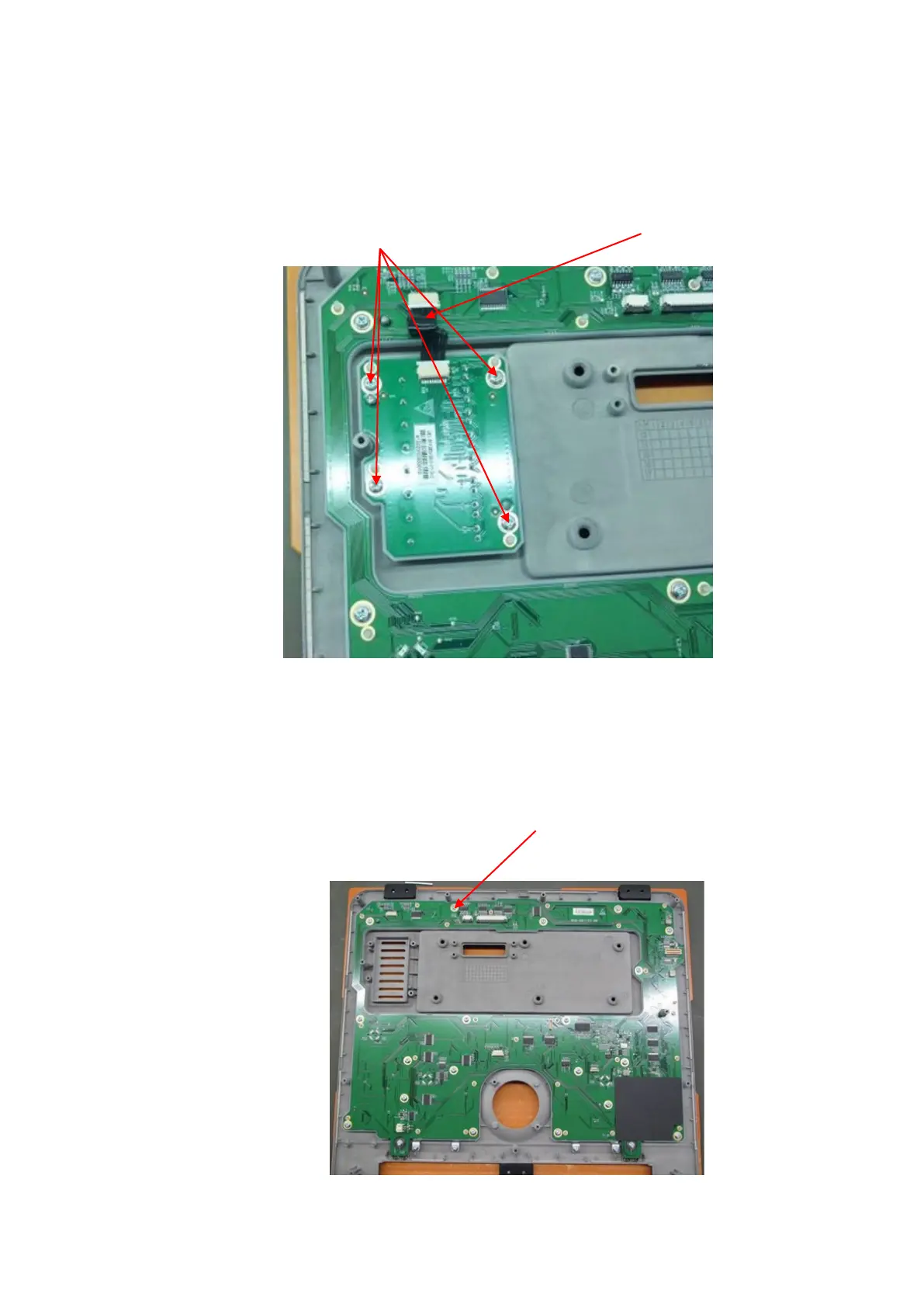

Unscrew 4 screws on TGC board (M3 X 6 stainless steel cross panhead screw). Unplug STC
connecting cables. Remove TCG board.
7. Disassemble the control panel PCBA
Unscrew 20 screws (M3 X 6 stainless steel cross panhead screw) on control panel PCBA.
Remove control panel PCBA.
M3 X 6 stainless steel cross panhead screw (20 screws)
M3 X 6 stainless steel cross
panhead screw (4 screws)
STC connecting cable
