Mindray Passport V Operating Instructions

Passport V Operating Instructions 0070- 0-0704-02 6 - 9
SpO2 Monitoring SpO
2
Pulse Oximetry
6.4.3 DPM SpO
2
The digital SpO
2
value displays on the SpO
2
LED (7), and the SpO
2
Pulse Rate displays on
the Pulse Rate LED (6).
CAUTION: When equipped with DPM SpO2, use only DPM oxygen
sensors and cables. Use of other oxygen sensors may cause
improper oximeter performance.
NOTE: Refer to instructions included with each SpO
2
sensor and
cable for proper placement and use.
NOTE: Consideration should be given to the disposal of packaging
waste.
1. Select an SpO
2
sensor that is appropriate for the patient size.
2. Attach the connector of the SpO
2
sensor to the SpO
2
extension cable.
3. Attach the SpO
2
sensor to the patient’s finger (or other appropriate site).
4. Align the key slot on the connector on the end of the SpO
2
extension cable with the
SpO
2
receptacle on the right side panel of the Passport V. Push the connector into the
SpO
2
receptacle until a “click” is heard. The SpO
2
measurement displays when the
Passport V detects that the sensor is connected to the patient. A plethysmogram
displays to the left of the SpO
2
numeric tile (if SpO
2
is selected in the TRACE SETUP
menu).
NOTE: To disconnect the cable from the Passport V, pull straight out
on the collar of the connector marked with two arrows.
Monitoring with a Reusable Y Sensor (Adult and Pediatric)
The reusable Y SpO
2
sensor consists of the sensor and its sheath. One side of the sensor has
an LED with an infrared detector and the other side has a pulse detector.
1. Insert the LED and pulse detector ends of the Y SpO
2
sensor into the respective grooves
of the sheath (see FIGURE 6-4 and FIGURE 6-5).

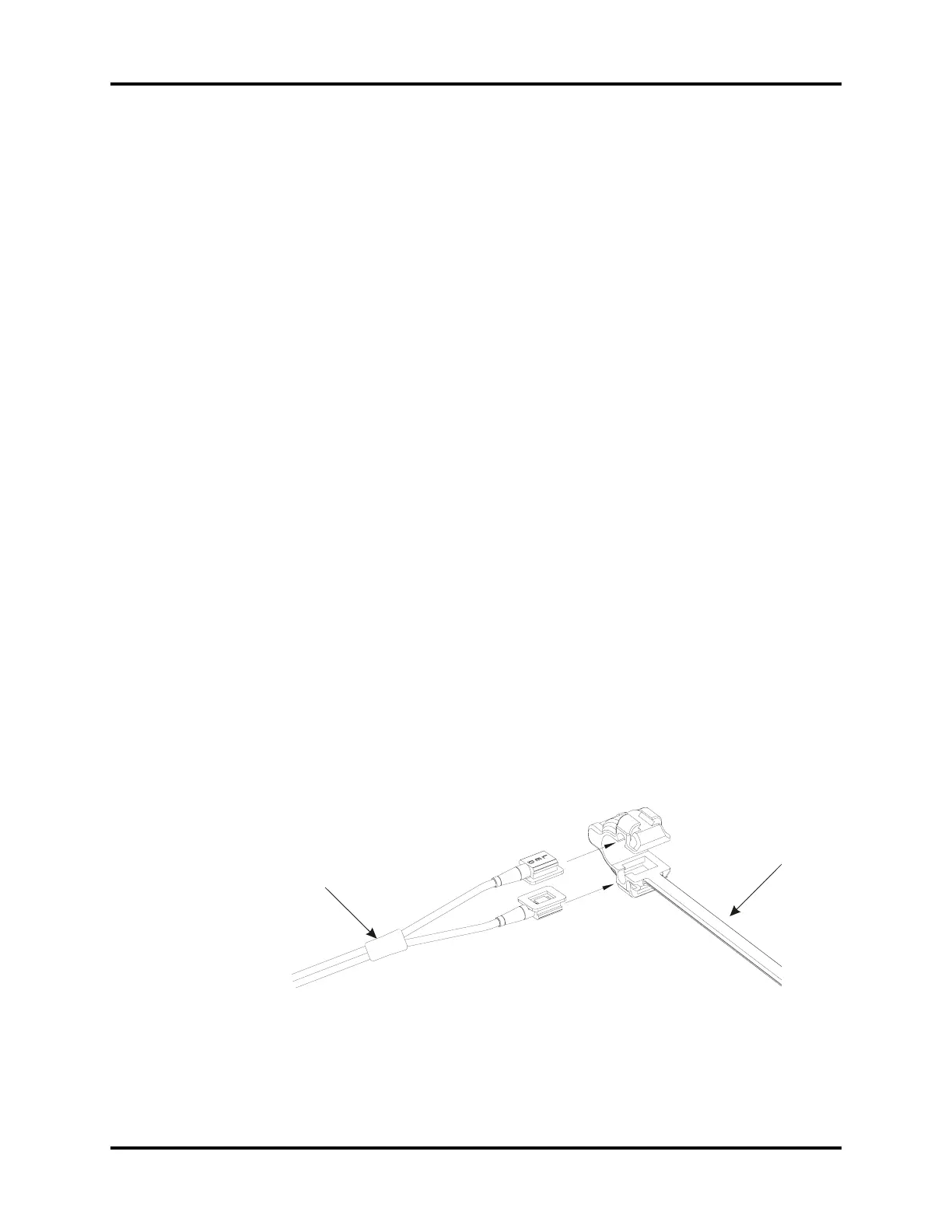

FIGURE 6-4 Inserting the Y SpO
2
sensor into the sheath
