Mindray Passport V Operating Instructions

Display General Product Description
1 - 8 0070- 0-0704-02 Passport V Operating Instructions
1.4 Display
The display of the Passport V provides menus, waveforms, parameter information, and
messages. The Passport V includes a display setup function that allows customization of
the display. Preferred setup details can be programmed and saved.
The operator of the Passport V should be positioned in front of the monitor at a
comfortable distance to view all displayed waveforms and text.

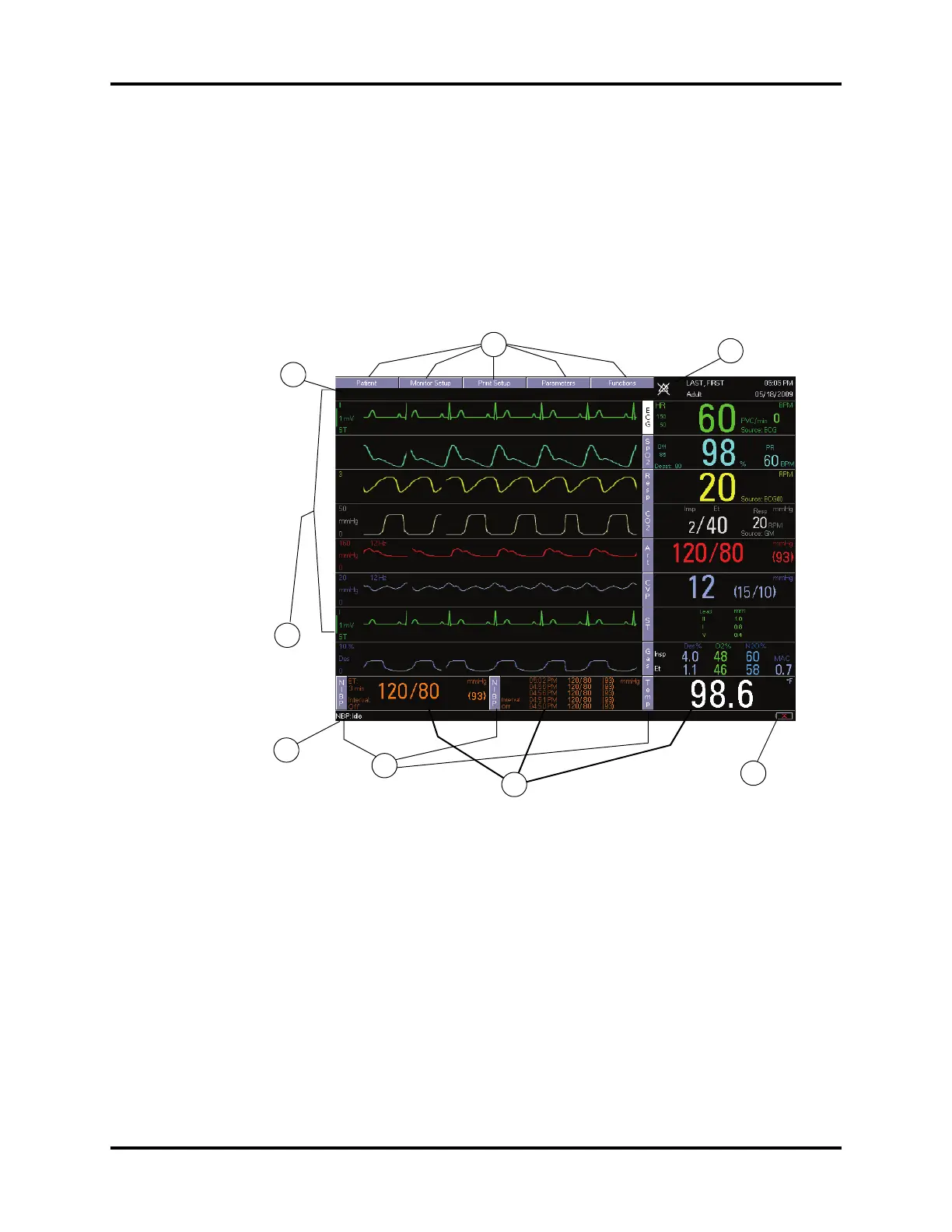

FIGURE 1-3 Normal Screen Display
1. Waveform Area
The waveform area is used to display windows which contain parameter waveforms. Up to 8
waveforms may be displayed. The top waveform is always set to display the ECG waveform
and cannot be changed. By default, SpO
2
(Pleth) waveform will appear as the second
waveform. Respiration will appear as the third waveform. If pressure transducers are
plugged into the P1 and P2 ports, the screen will reformat to display the additional
waveforms. CO
2
will display as the fourth waveform; IBP will appear as the fifth and sixth
waveform. The setup can be changed to display any of the available parameters and
waveforms.
Main Menus
Waveform
Area
Parameter
Menus
Status Icon
Area
Numeric
Tiles
2
1
3
4
Message
Area A
6
Message
Area B
7
5
8
0
