Passport V Operating Instructions 0070- 0-0704-02 1 - 13
General Product Description Physical Views
1.5.3 Left Side Panel

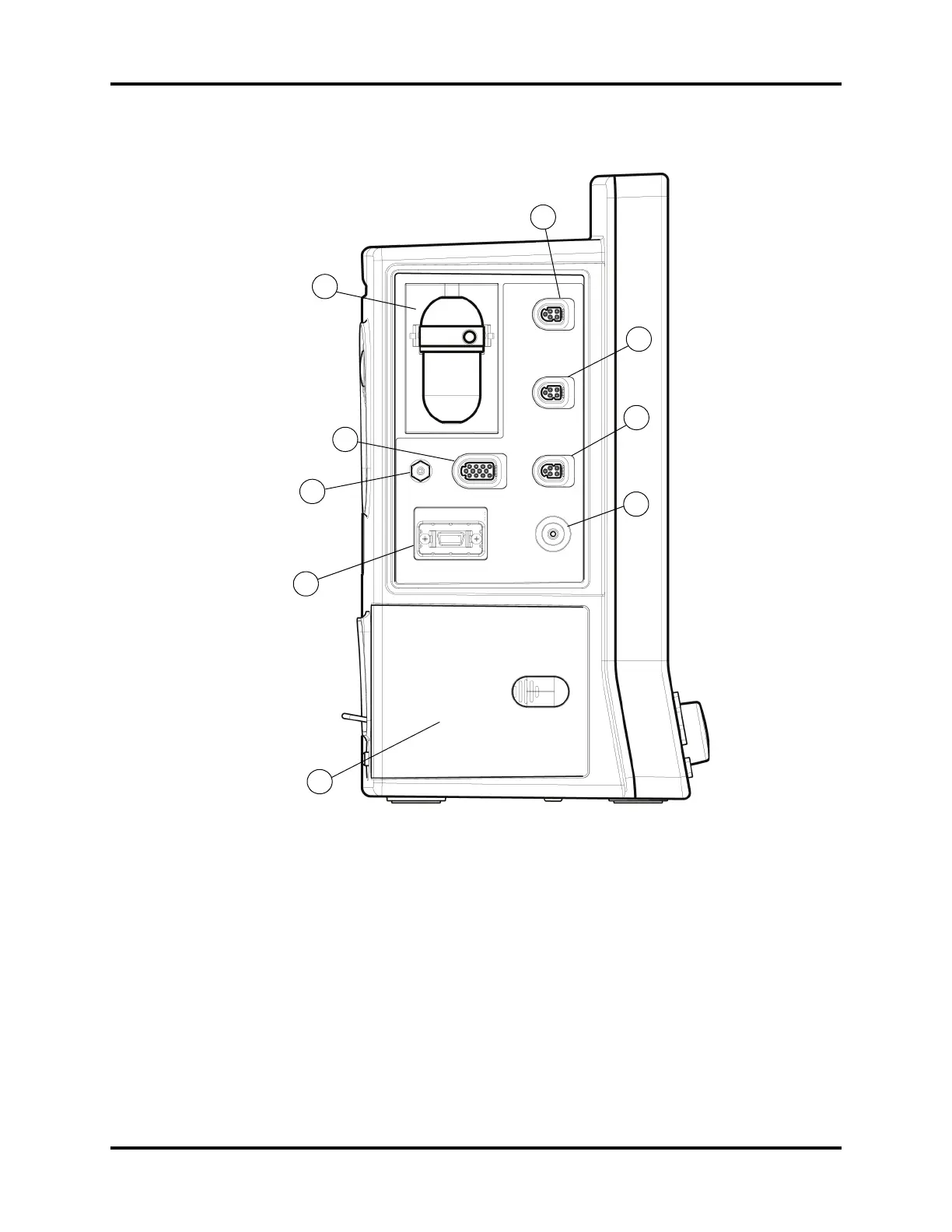

FIGURE 1-6 Left Side Panel
1. P1 Connector (optional)
2. P2 Connector (optional)
3. T1 Connector
4. ECG/EKG Connector
5. SpO
2
Connector (Masimo or Nellcor shown in figure)
6. NIBP Rectus Connector
7. Battery Compartment
8. CO
2
Input (Optional DPM CO
2
shown in figure)
9. CO
2
Exhaust Connector
1
2
5
3
4
6
7
8
9
0
