8.2 Temperature Screens
8.2.1 Numeric Tile: Temp
The Temp numeric tile displays the following:
• Parameter label (Temp)
• Measurement results
•Temp unit
• Alarm limits

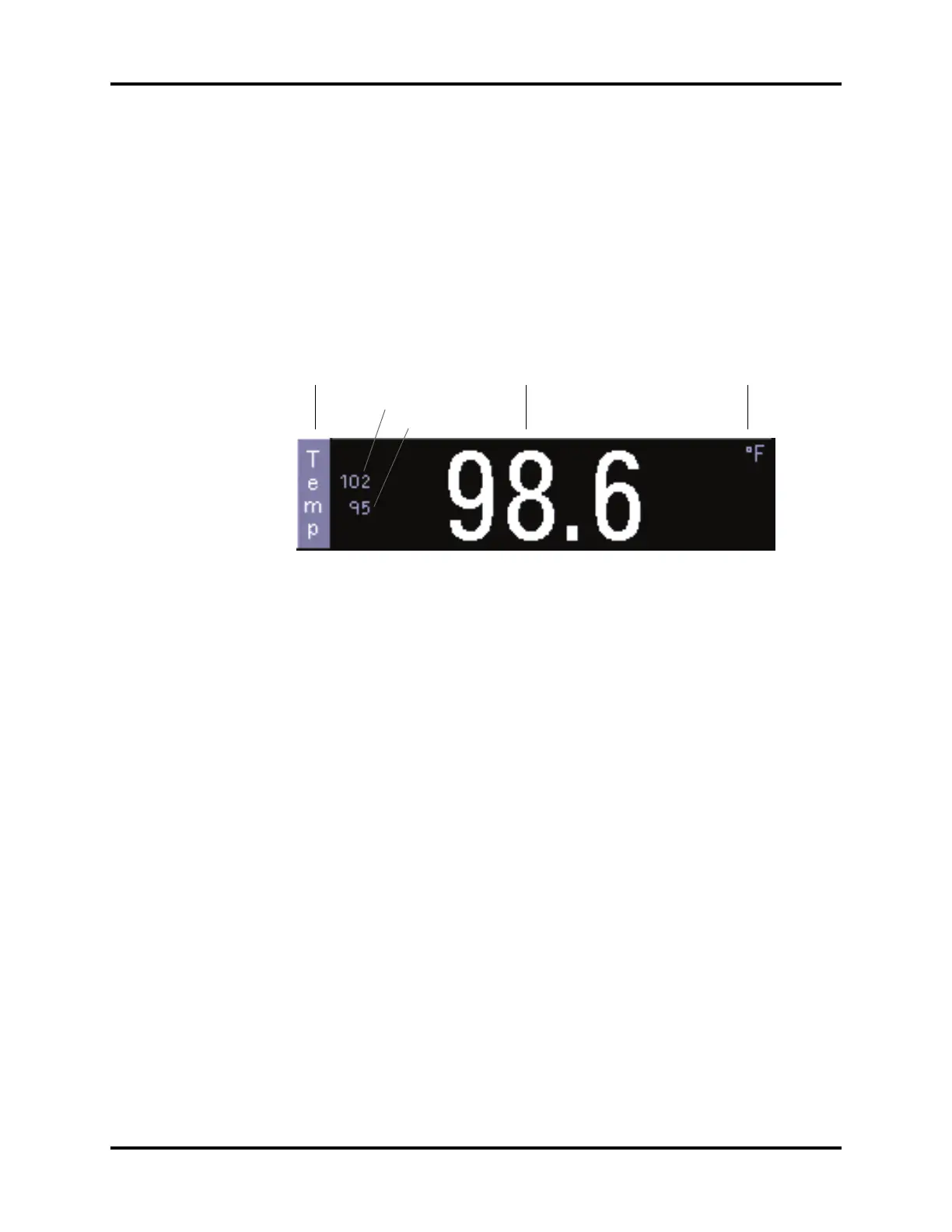

FIGURE 8-1 Temperature Numeric Tile
If a temperature transducer cable is plugged into the T1 port, but no measurement is
performed or the measured value is invalid, dashes "- - -" are displayed in the Temp numeric
tile. If a cable is not plugged into the T1 port, the Temp numeric tile is not displayed at all.
High Alarm Limit
Temp Label Temp UnitTemp Measured Value
Low Alarm Limit
