Passport V Operating Instructions 0070- 0-0704-02 11 - 3
Gas Monitoring (optional) Gas Screens
11.2 Gas Screens
To display the desired numeric and waveform tiles:
1. From the normal screen, select Monitor Setup 〉 Display Setup.
2. Rotate the Navigator Knob to the desired tile location and press the knob to open a
selection of parameters.
3. Rotate the Navigator Knob to the desired parameter and press the knob to select it.
11.2.1 CO
2
Numeric Tile
The CO
2
Numeric Tile displays the following:
•CO
2
parameter name
• Inspired measurement of CO
2
• Expiratory measurement of CO
2
•CO
2
unit of measurement
• Insp/ET labels
• Alarm limits
• Respiration Source
• Respiration Rate measurement
• Respiration Rate unit of measurement

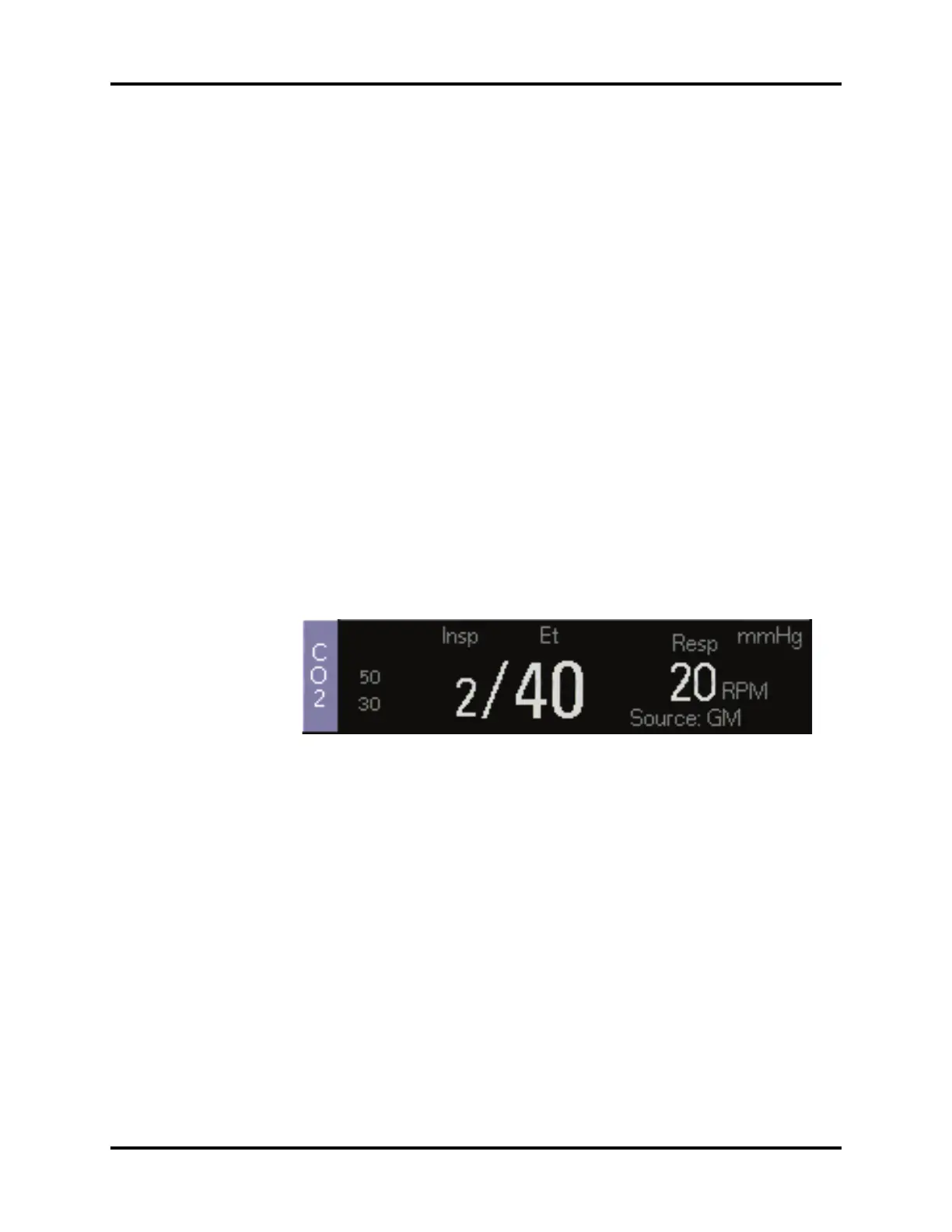

FIGURE 11-1 CO
2
Numeric Tile
11.2.2 Gas Numeric Tile
The Gas Numeric Tile displays the following:
• Gas parameter name;
• Insp and Exp labels for Agent, O
2
, and N
2
O
• Units of measurement for Agent, O
2
, and N
2
O
• Measured Values for Agent, O
2
, and N
2
O
• MAC Label
• Measured value of MAC
0
