ECG Screens ECG Monitoring
4 - 2 0070- 0-0704-02 Passport V Operating Instructions
4.2 ECG Screens
4.2.1 Numeric Tile: ECG
The ECG numeric tile displays the following:
• ECG label
• HR value, HR unit, HR alarm limits
• PVCs parameter name, PVCs value (not displayed when arrhythmia is OFF or not
installed)
• ST segment value (not displayed when ST segment analysis is OFF and Combine HR/ST
is set to Off or not installed)
•HR source
NOTE: In Large Numeric Screen, ST values and PVC/min are not
displayed in the ECG numeric tile.

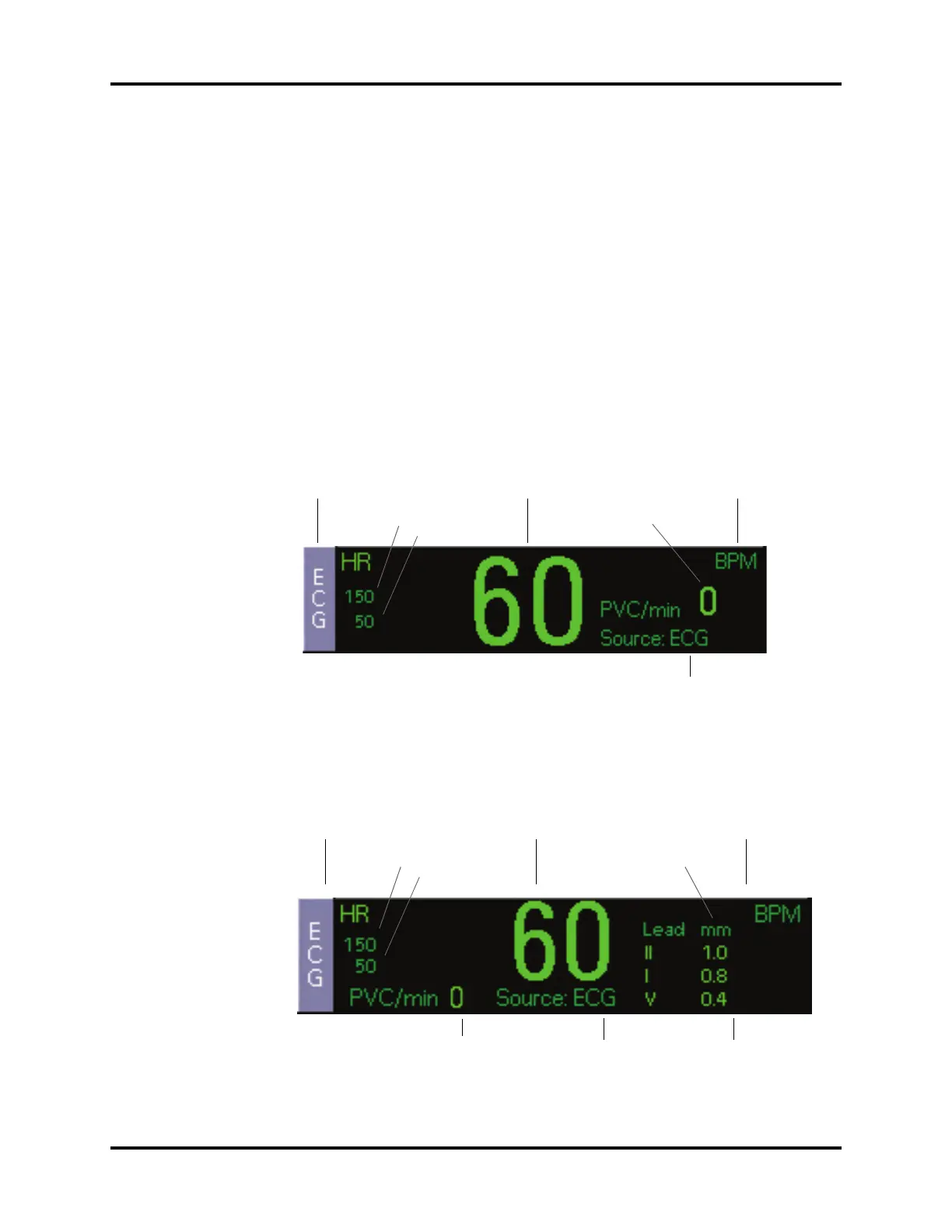

FIGURE 4-1 ECG numeric tile without ST displayed
FIGURE 4-2 ECG numeric tile with ST displayed
ECG Label HR Unit
HR Source
HR Measured Value
PVCs Measured Value
High Alarm Limit
Low Alarm Limit
High Alarm Limit
ECG Label HR Unit
HR Source
HR Measured Value
ST Unit
Low Alarm Limit
PVCs Measured Value
ST Values
0
