Menus: ECG Main and Submenus ECG Monitoring
4 - 8 0070- 0-0704-02 Passport V Operating Instructions
4.4.2 Arrhythmia Menu (optional)

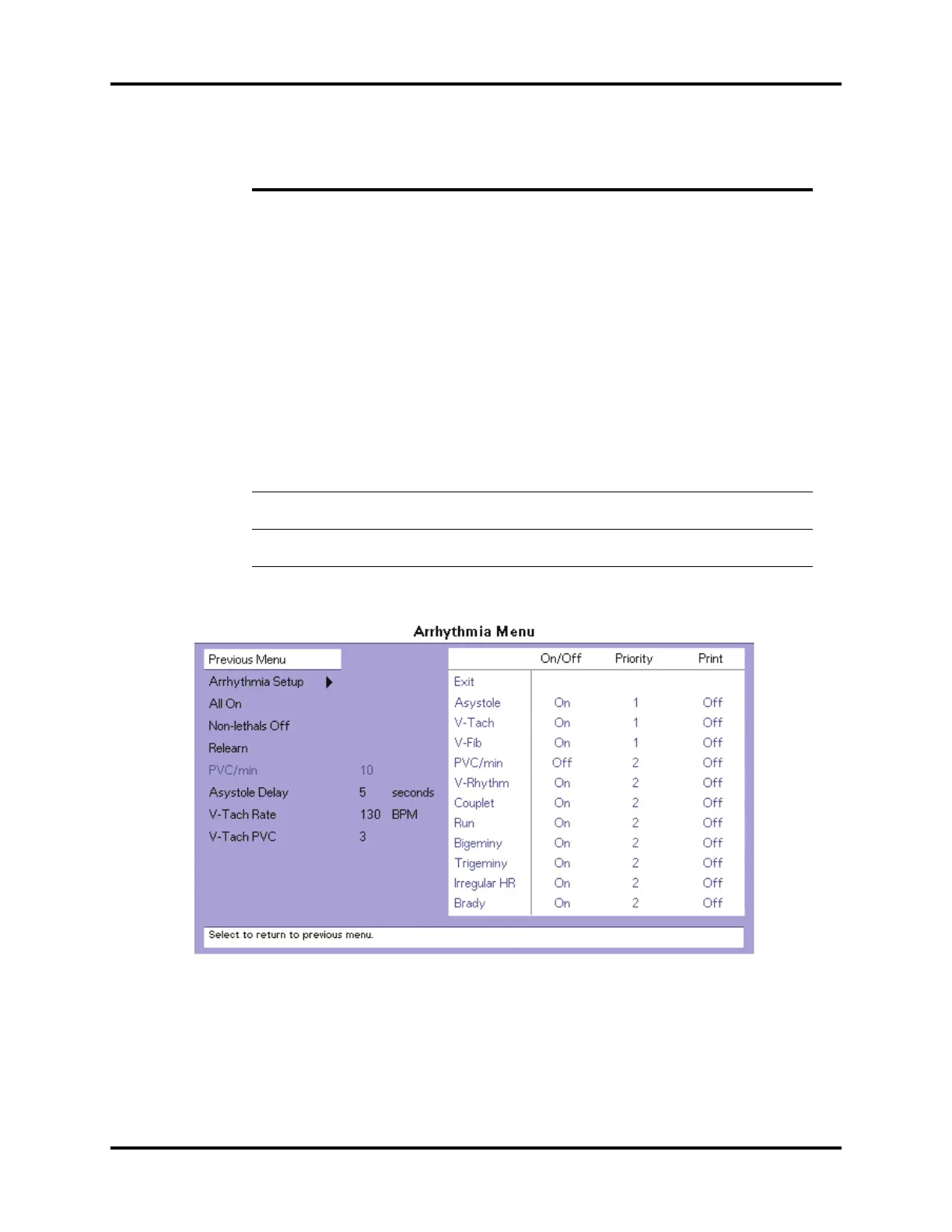

FIGURE 4-7 Arrhythmia Menu
NOTE: The Arrhythmia Menu is disabled if Patient Size = Neonate.
ECG Sizes Menu 0.125 cm/mV
0.25 cm/mV
0.5 cm/mV
1 cm/mV (default)
2 cm/mV
4 cm/mV
Select to open the ECG Sizes Menu.
Sets the ECG size (waveform gain) for:
• ECG1 only if using 3-lead
• ECG1 to ECG6 if using 5-lead
All ECG waveforms are displayed with 1cm/mV gain
in the All ECG View (via View key).
All ECG waveforms are displayed with the
user-selected gain after exiting the All ECG View.
All ECG waveform gains remain unchanged after
switchover between 3-lead and 5-lead modes.
NOTE: The SIZE key on the front panel is used to
change ECG1 waveform size. The “ECG1 Size”
menu option in the ECG Sizes Menu has the same
function. (In All ECG View, this key is disabled.)
ECG Setup Select to open the ECG Setup Menu.
See section 4.4.4 (pg. 4-12) "ECG Sizes Menu".
Resp Menu Select to open the Respiration Menu.
See section 4.4.5 (pg. 4-12) "ECG Setup Menu".
ECG Menu
MENU ITEM SELECTIONS COMMENTS
0
To Next Page
