Mindray Passport V Operating Instructions

Physical Views General Product Description
1 - 12 0070- 0-0704-02 Passport V Operating Instructions

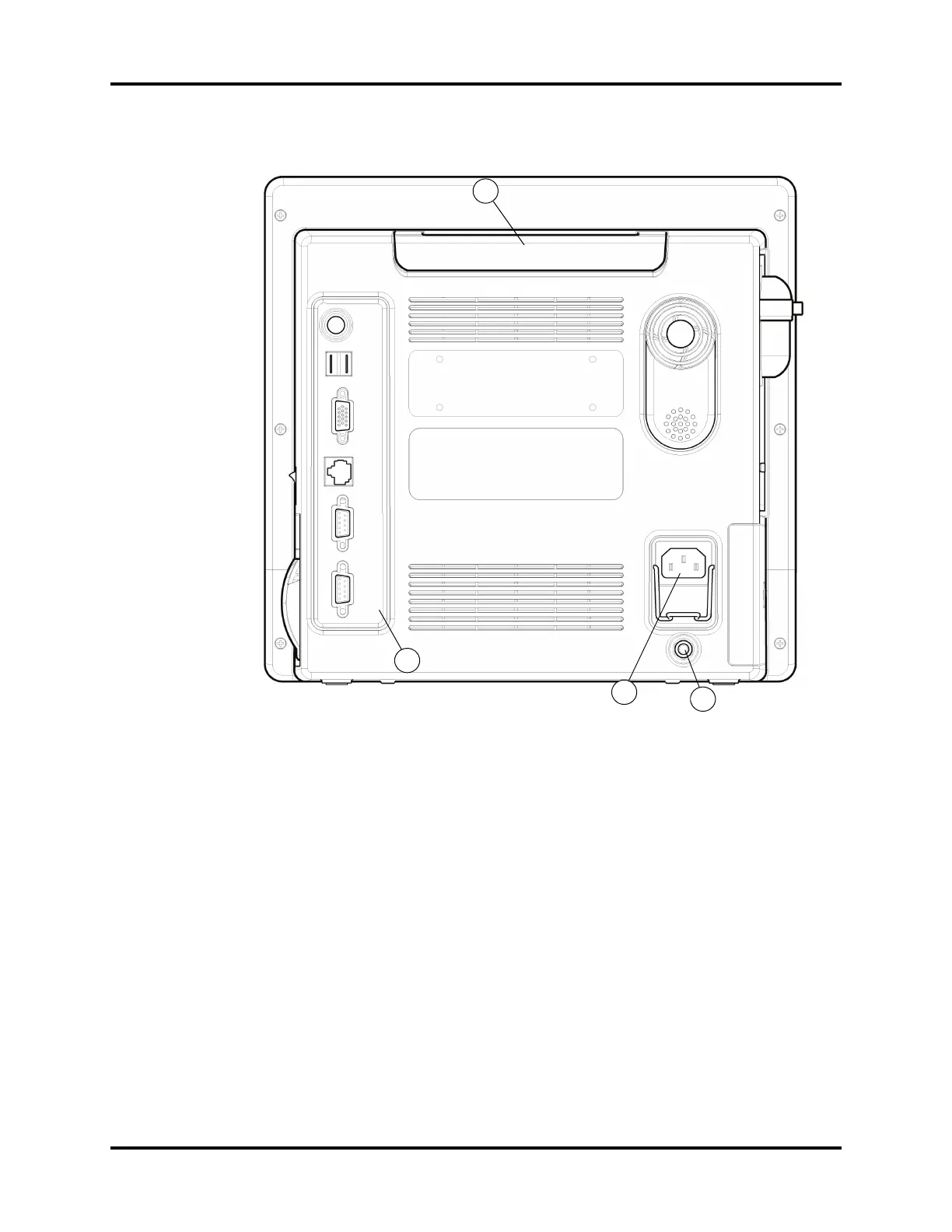

1.5.2 Rear View
FIGURE 1-5 Rear Panel
1. Soft Grip Handle
Provides a secure method to carry the monitor.
2. AC Receptacle (with an integrated cord retension clip)
Provides an inlet for an AC power cord.
3. Equipotential Lug
Provides equipotential grounding of hospital equipment.
4. Main I/O Connector Ports
Area dedicated for the use of an optional communication port.
• MP1: Allows connectivity to one of the following: Nurse Call or Defibrillator.
• SB1, SB2: Allows copying and transferring of patient data and user settings.
• RD1: Allows duplicate display of the main display on an SVGA-compatible monitor.
• CS1: Allows connectivity via an RJ45-based network.
• SP1, SP2: Allows connectivity to Gas Module 3 and DIAP.
2
3
1
4
MP1
SB1
RD1
CS1
SP1
SP2
SB2
