Menus: ECG Main and Submenus ECG Monitoring
4 - 12 0070- 0-0704-02 Passport V Operating Instructions
4.4.4 ECG Sizes Menu
f

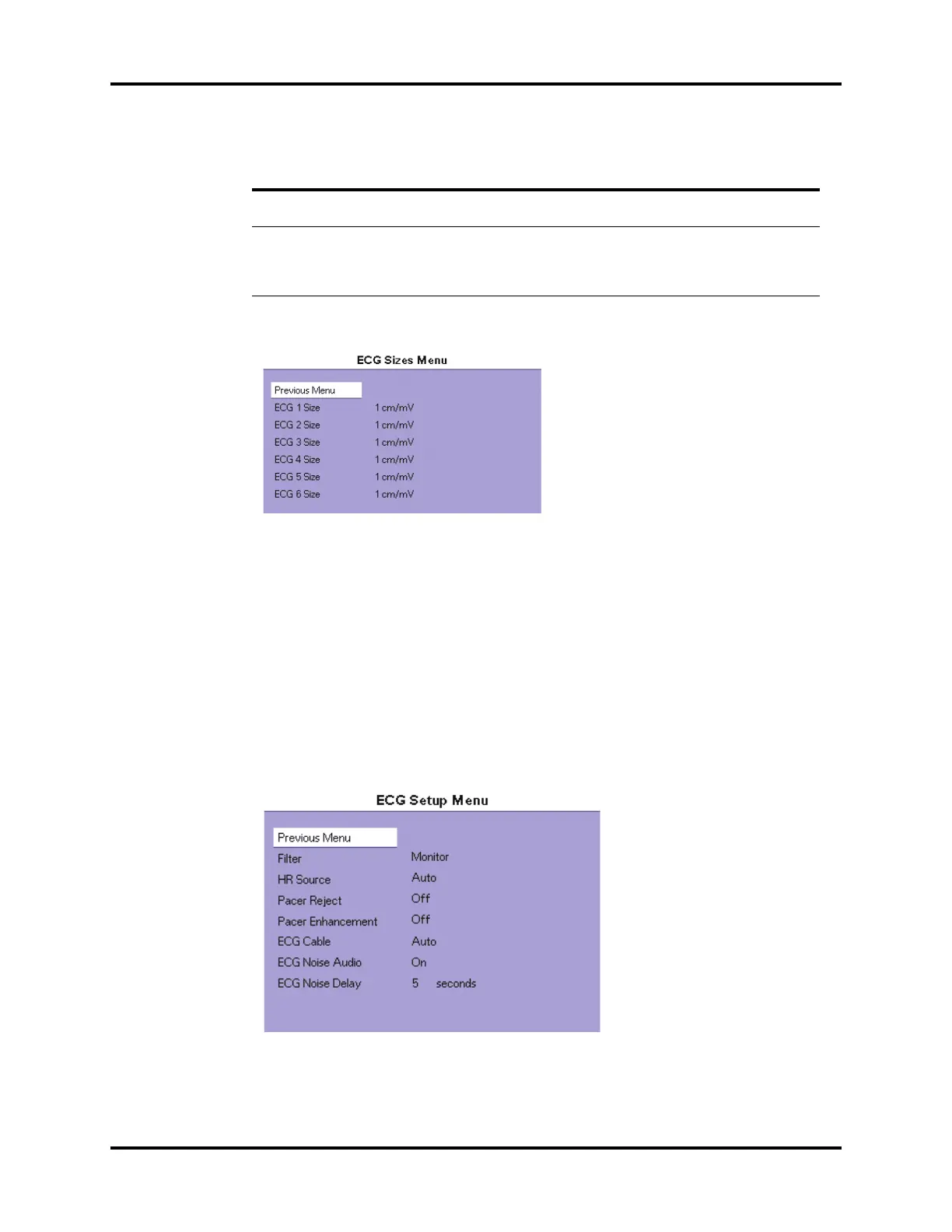

FIGURE 4-9 ECG Sizes Menu
To display the ECG Sizes Menu:
1. On the front panel:
Press the Normal Screen key to return to the normal screen.
2. On the normal screen:
Select Parameters 〉 ECG 〉 ECG Sizes Menu
or
Select the ECG tile
〉 ECG Sizes Menu.
3. To exit, press the Normal Screen key on the front panel.
4.4.5 ECG Setup Menu
FIGURE 4-10 ECG Setup Menu
J/ST 4 to 200 msec Select to adjust J and ST measurement points.
Adjustable in 8 msec increments.
ST -pt 40 msec
60 msec (default)
80 msec
60/80 msec
Select to adjust distance of ST point to the J point.
ST Menu
MENU ITEM SELECTIONS COMMENTS
