56
11-3-4. Operating condition of the comparator hysteresis
The comparator hysteresis is a function for the chattering prevention of the output relay.
The comparator hysteresis operating conditions is selected by setting function F-24.
The operating conditions of the comparator hysteresis can be selected from “On delay and “Off delay”.
Default has selected On delay.
11-3-5. Data width of the comparator hysteresis
The data width of the comparator hysteresis is set by setting function F-25.
Setting range : 0099 Unit : 1D 00OFF
Default has set 00.

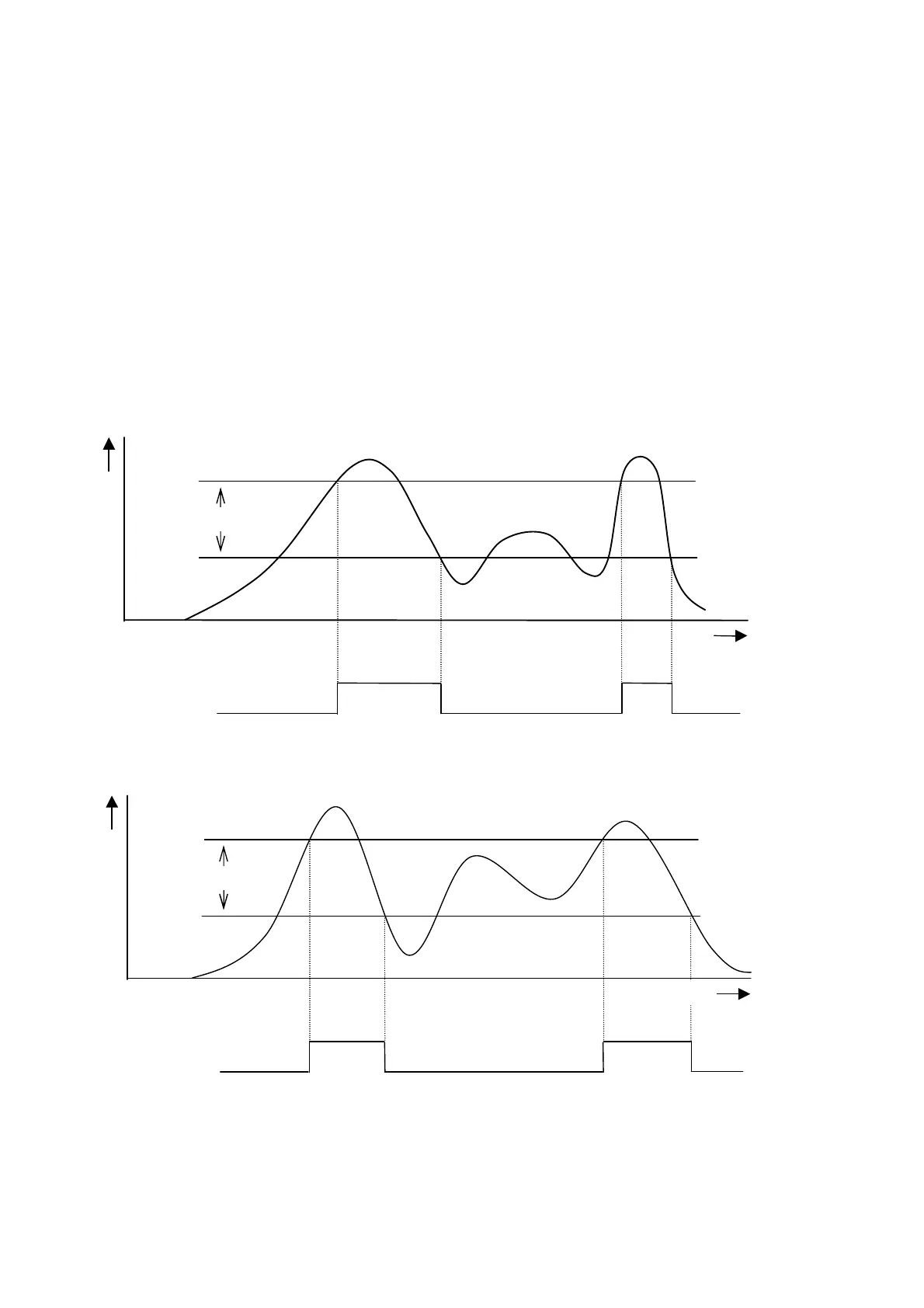

ex. About the upper limit value, the operation of the judgement display and the contact output when the
comparator hysteresis is set is shown.
On delay
Off delay
Hysteresis data width
Time
Set of upper
limit value
HI judgement displa
y
ON
OFF
Displa
y
HI contact output
Hysteresis data width
Time
ON
OFF
Displa
y
Set of upper
limit value
HI judgement displa
y
HI contact output
