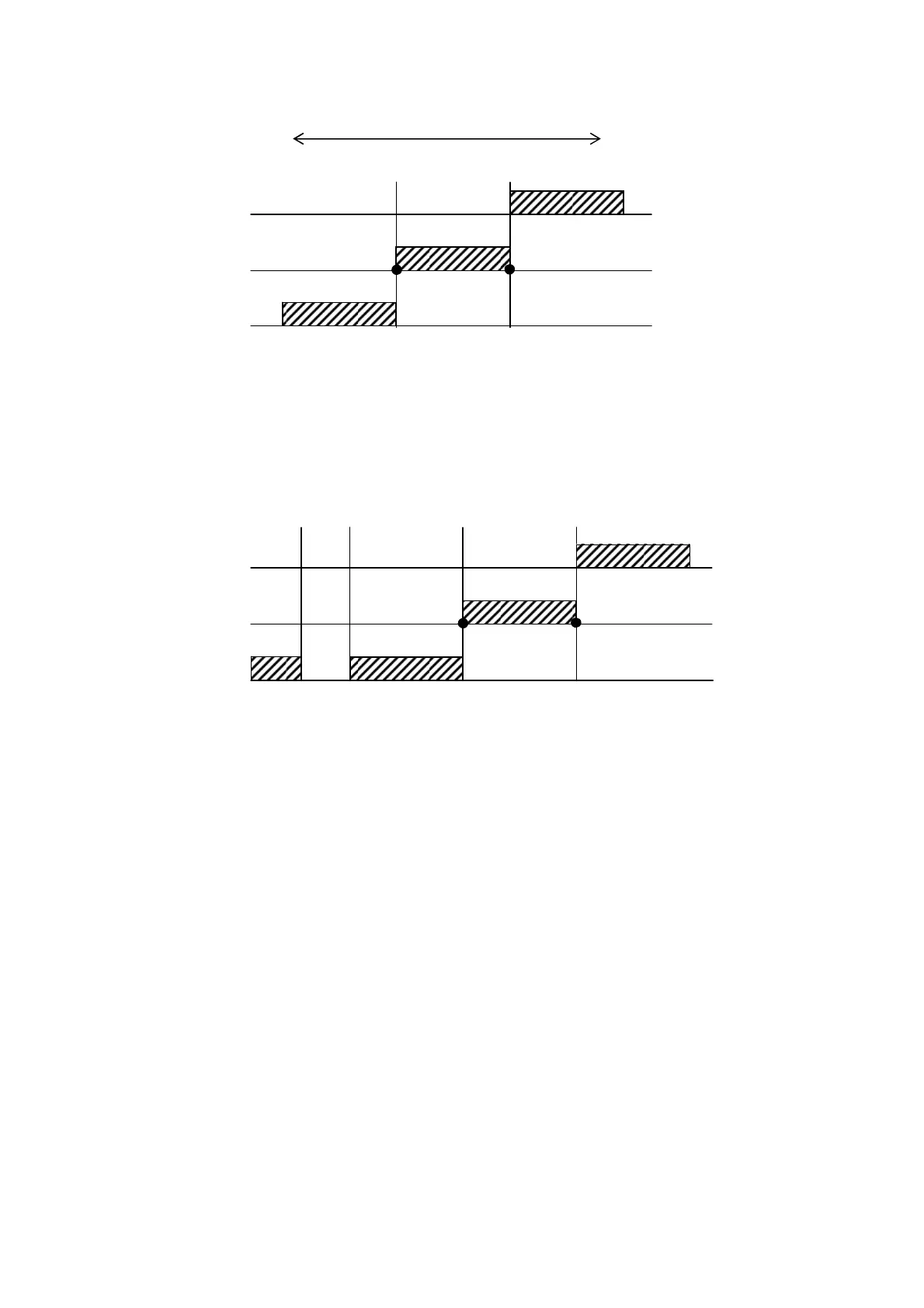

11-3-3. Operation of upper/lower limit comparison mode
ex. ・Comparator comparison operation Function F-20 “5”
(Except the range from －5D to ＋5D only during the stable condition)
・Target of comparator comparison operation Function F-20 “0”(Gross value)
・Upper limit value 5 000
・Lower limit value 1 000
・Operating condition of HI 5 000＜Display value
・Operating condition of OK 1 000≦Display value≦5 000
・Operating condition of LO Display value＜－5 or 5＜Display value＜1000
Display Small
Display Large
HI
OK
LO
OFF
OFFOFF
OFF
OFF
OFF
ON
ON
ON
Lower limit
value(LO)
Upper limit
value(HI)
HI
OK
LO
OFF
OFFOFF
OFF
OFF
OFF
ON
ON
ON
1 000 5 000
OFF
OFF
ON
OFF
OFF
OFF
－5 ＋5
