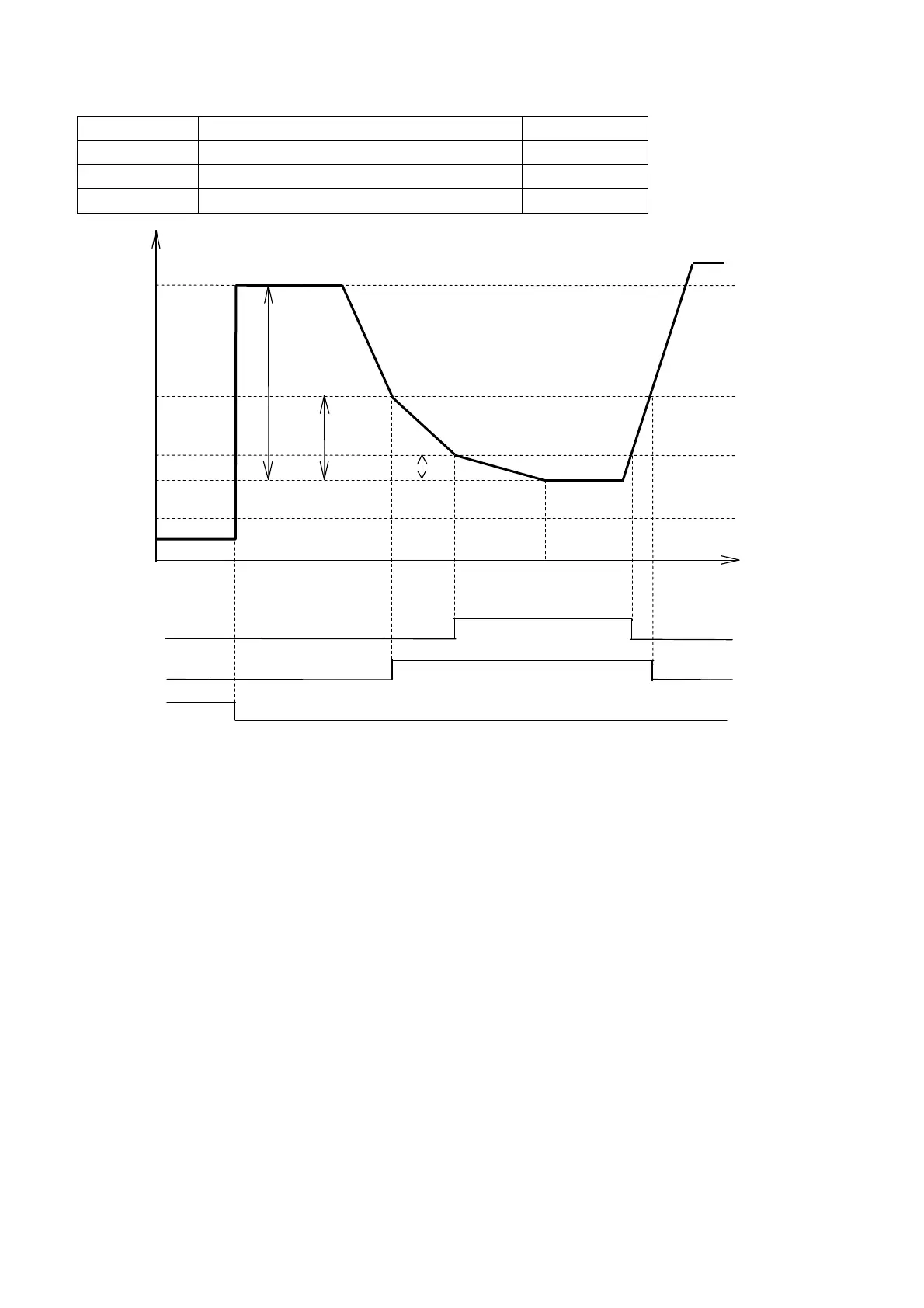

11-4-3. Output condition of weigh-out measurement
Output signal Condition Output terminal
Small weigh-in Net value≦-(Target valueFall) HI
Large weigh-in Net value≦-(Target valuePre-set value) OK
Near zero Gross valueSet value of near zero LO
Zero point
Target value
Pre-set
value
(SET2)
Near zero
Zero display
Time
Measurement
value
Tare weight
cancellation ON
Small weigh-in(HI)
Large weigh-in(OK)
Near zero(LO)
Target value
Pre-set
value
Fall
(SET0)
ON
OFF
ON
OFF
ON
OFF
