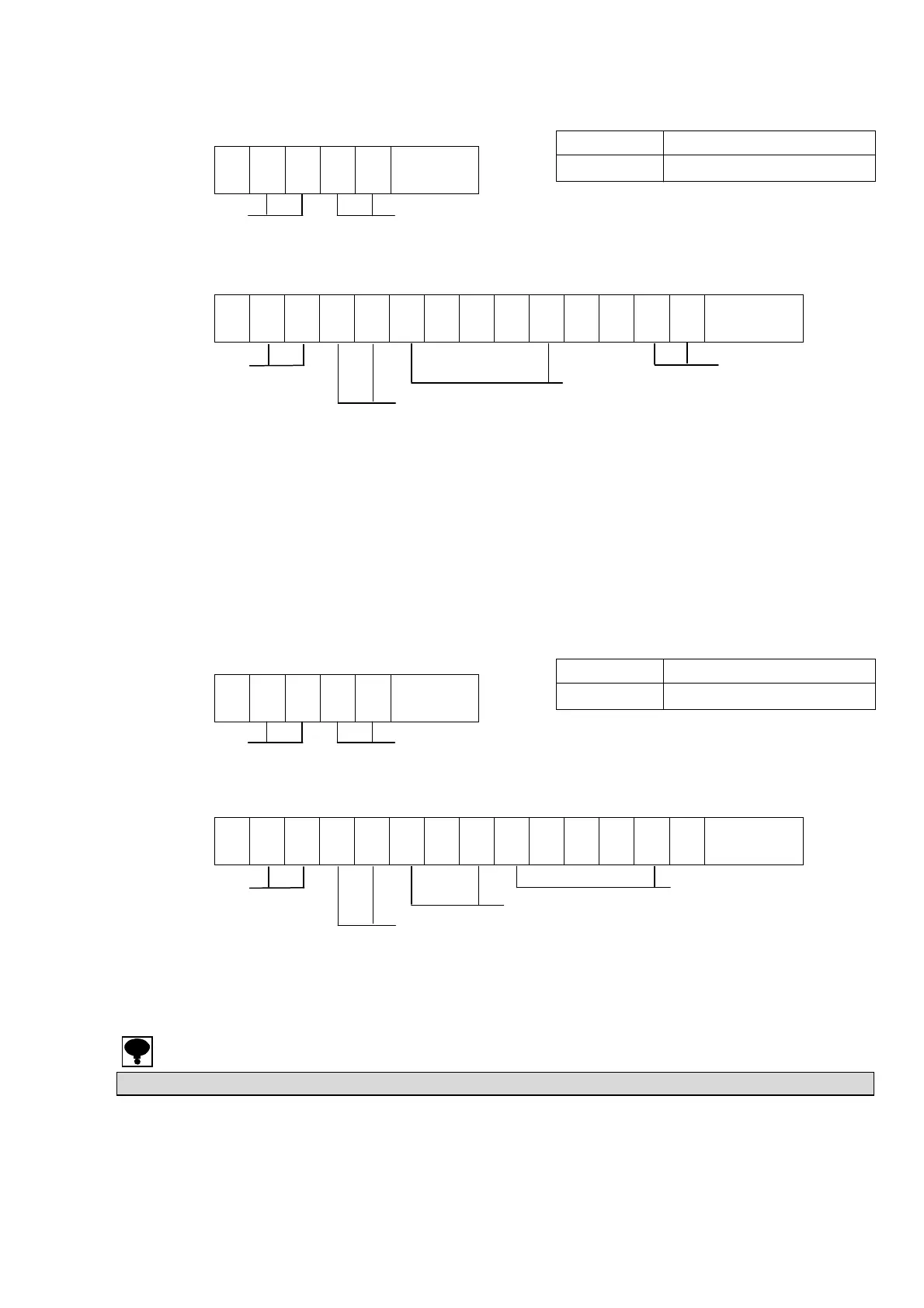

③ Reading out condition (Host → CSD-904-EX)
2 4 6
@ 0 0 4 0 Terminator
Return (CSD-904-EX → Host)
2 4 6 8 10 12 14
@ 0 0 4 0 a b c d e f g Terminator
a：Accumulate “1” = ON, “0” = OFF
b：Stable “1” = ON, “0” = OFF
c：Fixed tare weight cancellation “1” = ON, “0” = OFF
d：Tare weight cancellation “1” = ON, “0” = OFF
e：Gross value “1” = ON, “0” = OFF
f：Net value “1” = ON, “0” = OFF
g：Zero “1” = ON, “0” = OFF
④ Reading out comparison result (Host → CSD-904-EX)
2 4 6
@ 0 0 4 1 Terminator
Return (CSD-904-EX → Host)
2 4 6 8 10 12 14
@ 0 0 4 1 HI OK LO Terminator
HI：“1” = ON, “0” = OFF
OK：“1” = ON, “0” = OFF
LO：“1” = ON, “0” = OFF
●When it is the weigh-in/Weigh-out mode, each is correspond to as “HI” is small weigh-in, “OK” is large weigh-in, and “LO” is near zero.
Address
00～31
Command No.
Command No.
40
Operation
Reading out condition
Address
00～31
Command No.
Condition
Space
Address
00～31
Command No.
Command No.
41
Operation
Reading out comparison
Address
00～31
Command No.
Condition
Space
