Mitsubishi Electric MELSERVO-J5 HK-KT43W - Keyed Shaft (Without Key)

7 HK-ST SERIES
7.5 Rotary servo motors with special shafts
157
7

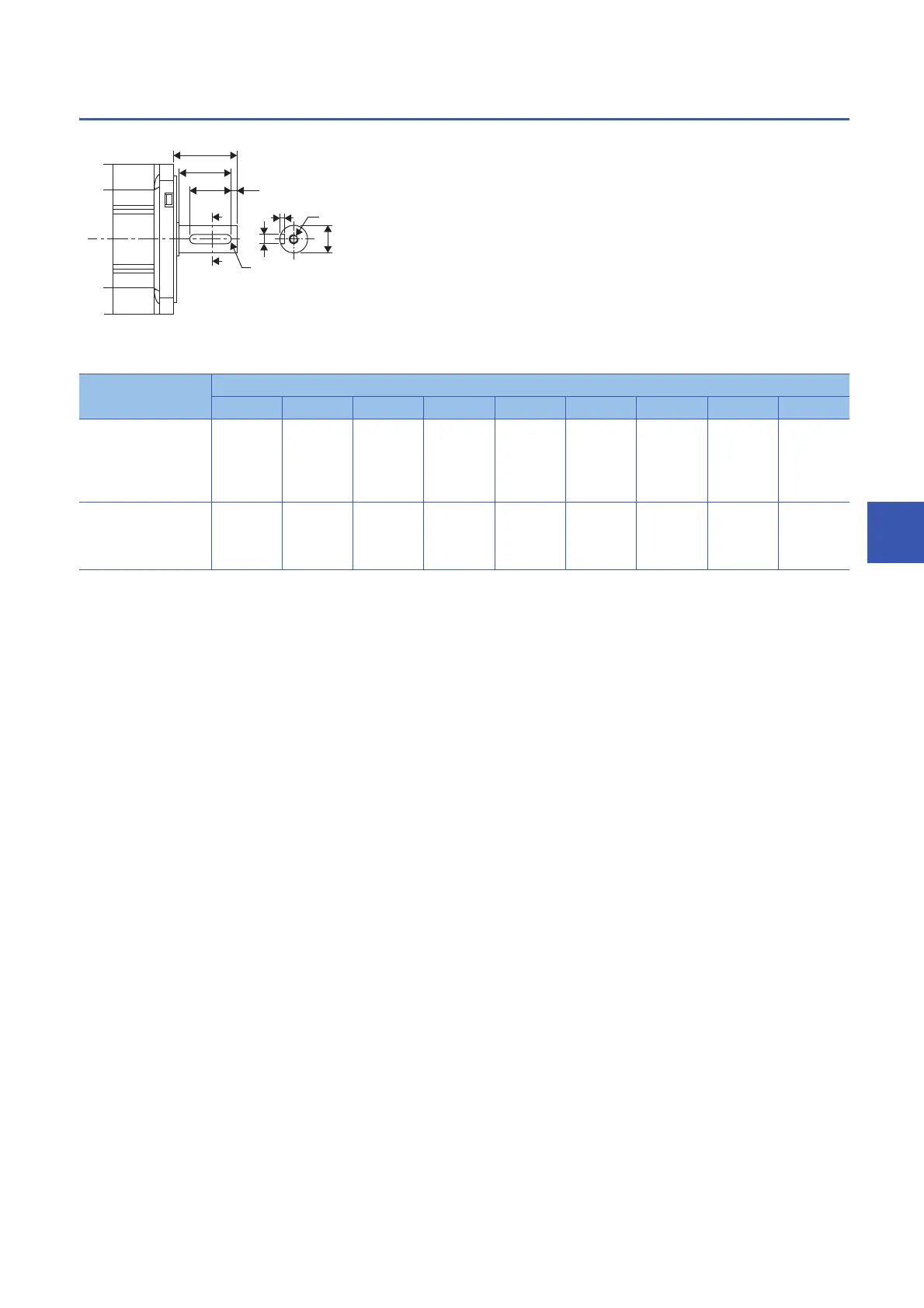

Keyed shaft (without key)
[Unit: mm]
Rotary servo motor Variable dimensions
S R Q W QK QL U r Y
HK-ST52(4)WN
HK-ST102(4)WN
HK-ST172(4)WN
HK-ST202(4)AWN
HK-ST302(4)WN
55 50 36 5 4 M8
Screw hole
depth
20
HK-ST202(4)WN
HK-ST352(4)WN
HK-ST502(4)WN
HK-ST702(4)WN
79 75 55 5 5 M8
Screw hole
depth
20
r
W
U
Y
A
A
S
R
Q
QK QL
Section A-A
24
0
-0.013
8
0
-0.036
4
+0.2
0
35
+0.010
0
10
0
-0.036
5
+0.2
0
