5 WIRING OPTION

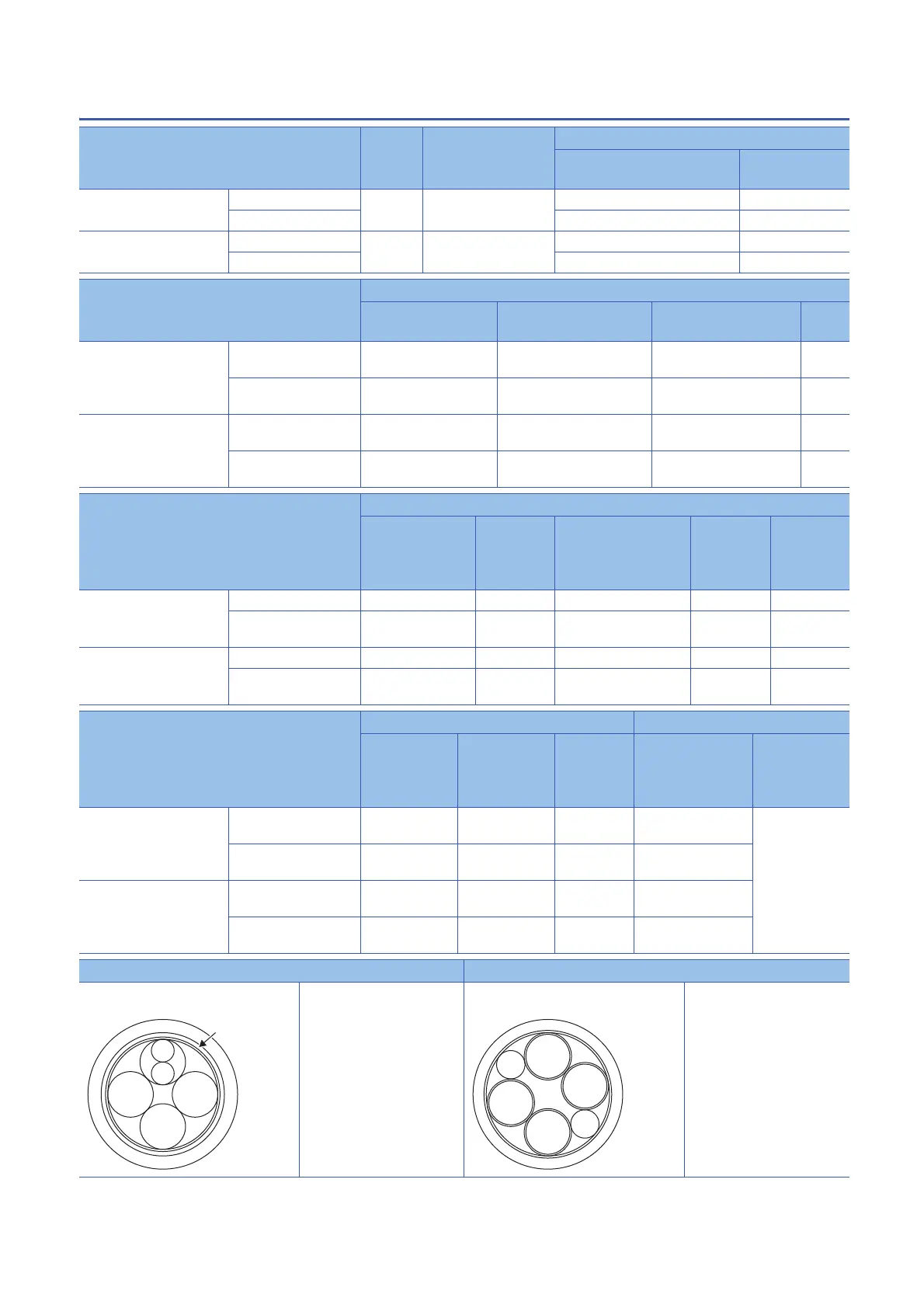

5.4 Wires for option cables
MR-AEPB2J20CBL03M-_-L/MR-AEPB2J10CBL03M-_-L
Item Cable
length
[m]
Flex type Applicable standard
For wiring between devices
UL 758 (AWM)
Flame retardant
UL 1581
MR-AEPB2J20CBL03M-_-L For encoder 0.3 Standard (for fixed parts) UL style 20276 VW-1
For power supply/brake UL style 2586 VW-1
MR-AEPB2J10CBL03M-_-L For encoder 0.3 Standard (for fixed parts) UL style 20276 VW-1
For power supply/brake UL style 2586 VW-1
Item Physical characteristics
Conductor
construction
Braided shielding
material
Sheath material Color
MR-AEPB2J20CBL03M-_-L For encoder AWG 24 × 4 pairs Tinned annealed copper wire Flame-retardant and oil-
resistant PVC
Black
For power supply/brake AWG 18 × 4 cores
AWG 24 × 2 cores
 Flame-retardant and oil-
resistant PVC
Black
MR-AEPB2J10CBL03M-_-L For encoder AWG 24 × 4 pairs Tinned annealed copper wire Flame-retardant and oil-
resistant PVC
Black
For power supply/brake AWG 18 × 4 cores
AWG 24 × 2 cores
 Flame-retardant and oil-
resistant PVC
Black
Item Wire specifications
Conductor OD
[mm]
Cable OD
*1
[mm]
Minimum bending
radius [mm]
(recommended
value)
Insulation
resistance
(at 20 °C)
[MΩ/km]
Withstand
voltage
[Vac/min]
MR-AEPB2J20CBL03M-_-L For encoder 0.6 (AWG 24) 7.5 4 times the cable OD 10 or more 500
For power supply/brake 1.21 (AWG 18)
0.6 (AWG 24)
7.5 4 times the cable OD 100 or more 2000
MR-AEPB2J10CBL03M-_-L For encoder 0.6 (AWG 24) 7.5 4 times the cable OD 10 or more 500
For power supply/brake 1.21 (AWG 18)
0.6 (AWG 24)
7.5 4 times the cable OD 100 or more 2000
Item Wire specifications Recommended product
Rated
temperature
[°C]
Conductor
resistance
(at 20 °C)
[Ω/km]
Rated
voltage [V]
Model Manufacturer
MR-AEPB2J20CBL03M-_-L For encoder 80 92.2 or less 30 HRZVV-SB-C18467
(20276)
Dyden
For power supply/brake 105 21.8 or less
92.2 or less
600 HRZFEV-C18213
(2586)
MR-AEPB2J10CBL03M-_-L For encoder 80 92.2 or less 30 HRZVV-SB-C18467
(20276)
For power supply/brake 105 21.8 or less 92.2
or less
600 HRZFEV-C18213
(2586)
HRZVV-SB-C18467(20276) HRZFEV-C18213(2586)
Reference diagram AWG 24
1: Red and white
2: Green and blue
3: Purple and orange
4: Gray and black
Reference diagram Power supply (AWG 18)
1: Black
2: White
3: Red
4: Green/yellow
Electromagnetic brake (AWG
24)
5: Brown
6: Yellow
1
2
3
4
Shield braid
6
5
1
2
3
4
