8.7 Dimensions
8.7 Dimensions

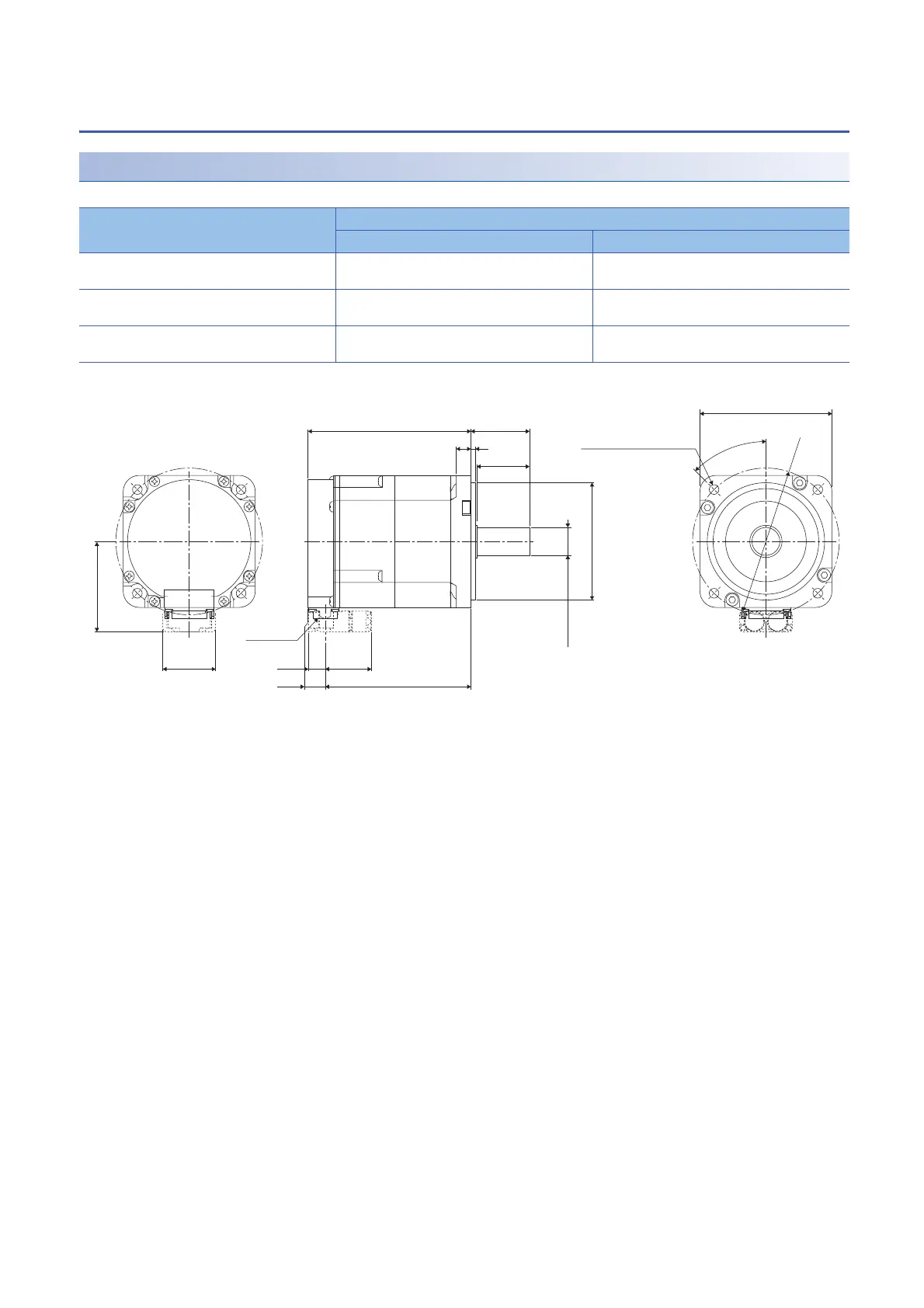

HK-RT103W(B)/HK-RT1034W(B)/HK-RT153W(B)/HK-RT1534W(B)/HK-RT203W(B)/HK-
RT2034(B)W
*1 The values in ( ) of the dimensions are for the servo motors with an electromagnetic brake.
[Unit: mm]
Model Variable dimensions
*1
L KL
HK-RT103W(B)
HK-RT1034W(B)
118.9 (158.3) 107.2 (146.6)
HK-RT153W(B)
HK-RT1534W(B)
136.9 (176.3) 125.2 (164.6)
HK-RT203W(B)
HK-RT2034W(B)
172.9 (212.3) 161.2 (200.6)
45°
90
36
310
40L
KL
11.5 31.536
61.6
11.7
100
19
0 -0.013
80
0 -0.03
4-6.6 mounting hole
Use hexagon socket
head cap screw.
Connector
