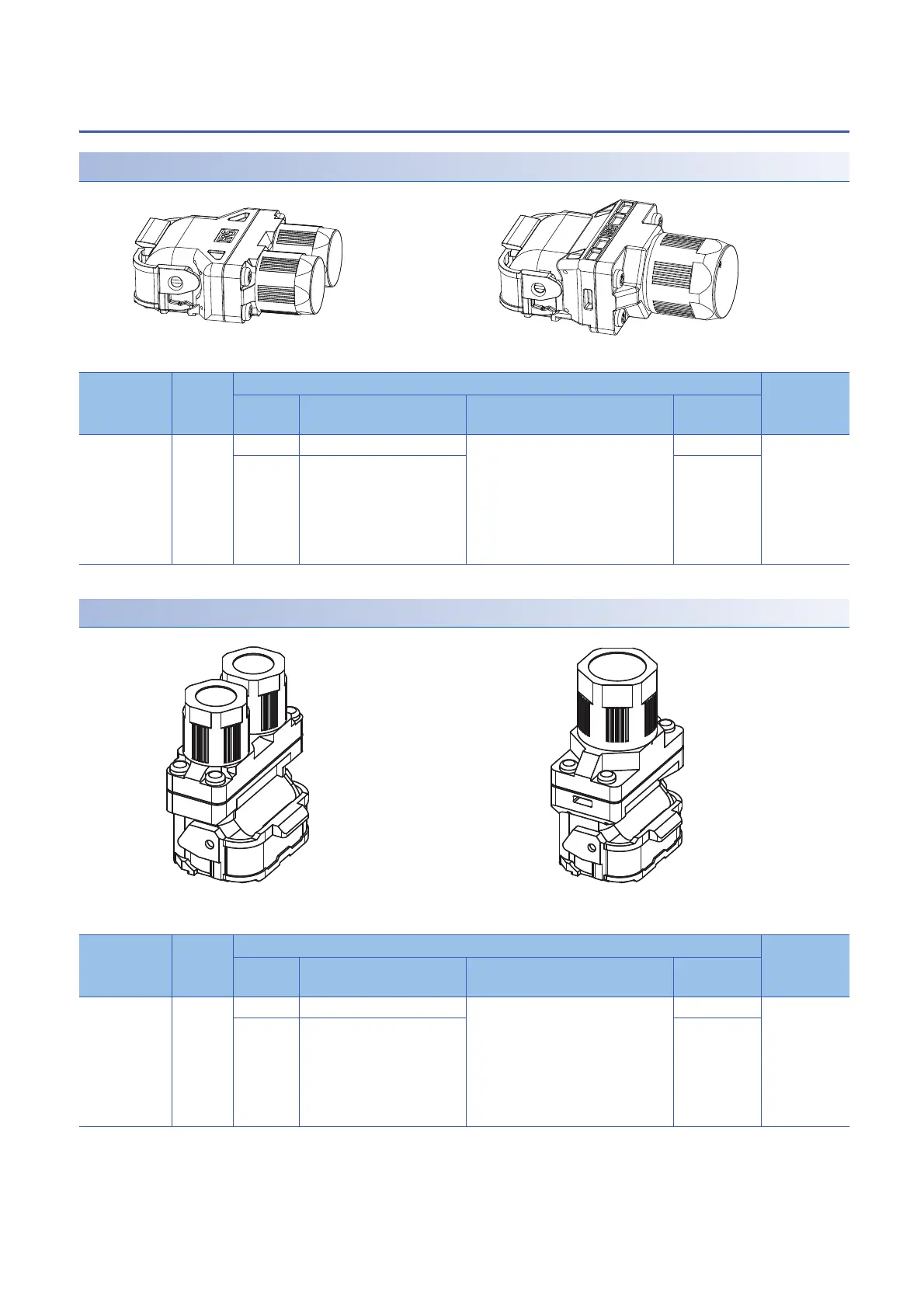

3 CONNECTORS USED FOR ROTARY SERVO MOTOR WIRING
3.2 Wiring connectors (connector configuration A)
3.2 Wiring connectors (connector configuration A)
Load-side lead/opposite to load-side lead
*1 The connector to be mated.
Vertical lead
*1 The connector to be mated.
Connector
configuration
Feature Plug (Hirose Electric) Rotary servo
motor-side
connector
*1
Type Connector Contact Applicable
cable OD
A IP67 Dual cable MT50W-8D/2D4ES-CVLD(7.5) (1) For power supply
Contact model: MT50E-1820SCFA
Applicable wire size: AWG 20 to 18
Crimping tool: HT802/MT50E-1820S
(2) For electromagnetic brake/encoder
Contact model: MT50D-2224SCFA
Applicable wire size: AWG 24 to 22
Crimping tool: HT802/MT50D-2224S
7.5 ± 0.3 MT50W-8D/
2D3E-PE-FL
Single
cable
MT50W-8D/2D4ES-CVL(11.9) 11.9 ± 0.3
Connector
configuration
Feature Plug (Hirose Electric) Rotary servo
motor-side
connector
*1
Type Connector Contact Applicable
cable OD
A IP67 Dual cable MT50W-8D/2D4ES-CVSD(7.5) (1) For power supply
Contact model: MT50E-1820SCFA
Applicable wire size: AWG 20 to 18
Crimping tool: HT802/MT50E-1820S
(2) For electromagnetic brake/encoder
Contact model: MT50D-2224SCFA
Applicable wire size: AWG 24 to 22
Crimping tool: HT802/MT50D-2224S
7.5 ± 0.3 MT50W-8D/
2D3E-PE-FL
Single
cable
MT50W-8D/2D4ES-CVS(11.9) 11.9 ± 0.3
Two cable type One cable type
Two cable type One cable type
